Classification：Arrester Series
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667

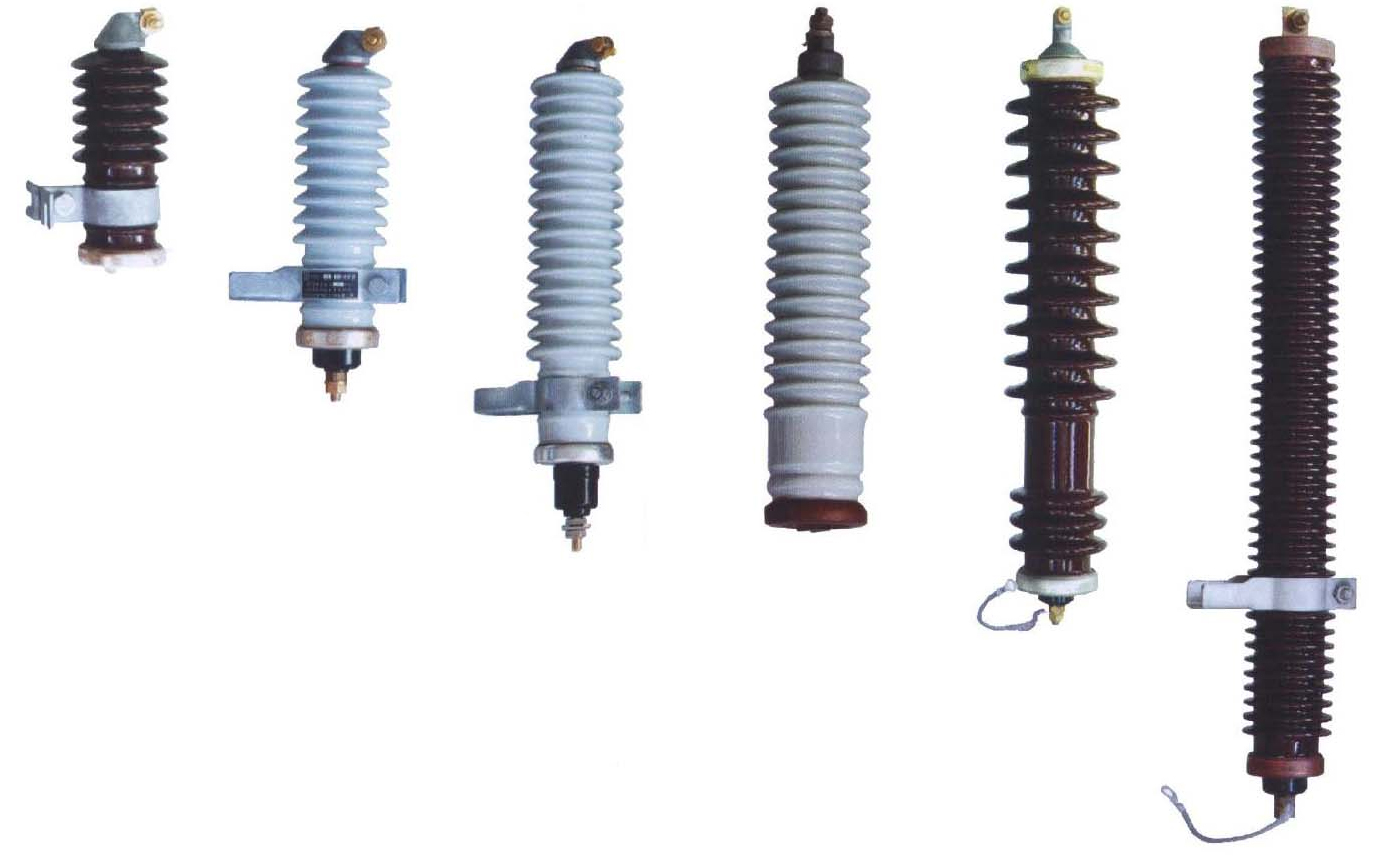

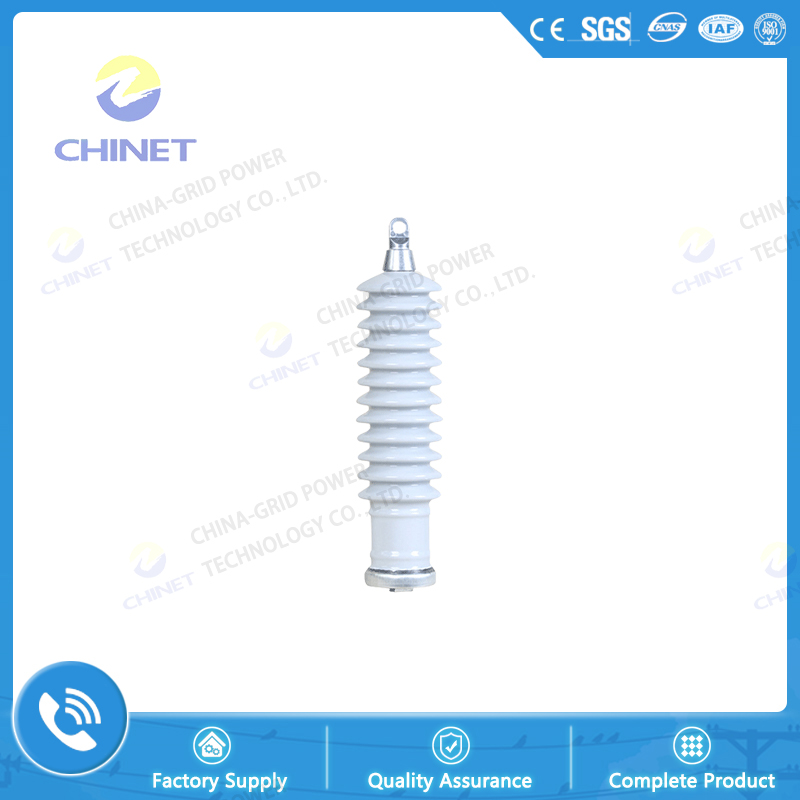

Utilizing advanced integral injection molding technology, the ceramics used are uniquely formulated to have good water absorption, anti-aging, tracking resistance and electrical corrosion resistance.
| Tape | MOA Rated Voltage | MCOV | Power frequency discharge voltage | 1.5/50us Lightning Impulse residual Voltage | 8/20us Lightning impulse residual Voltage | 2ms Rectangular current impulse withstand（A） | 4/10us High Current impulse（KA) | IMG No. | ||
| Nominal discharge current | Nominal discharge current | |||||||||
| kV(r.m.s) | ≯kV | 10KA | 5KA | 10KA | 5KA | |||||
| Y5C-3 | 3 | 2.55 | 5.5 | 9 | 9 | 200 | 100 | 65 | 65 | |
| Y5C-6 | 6 | 5.1 | 11 | 18 | 18 | 200 | 100 | 65 | 65 | |
| Y5C-9 | 9 | 7.65 | 16 | 27 | 27 | 200 | 100 | 65 | 65 | |
| Y5C-10 | 10 | 8.4 | 18 | 30 | 30 | 200 | 100 | 65 | 65 | |
| Y5C-12 | 12 | 10.2 | 22 | 36 | 36 | 200 | 100 | 65 | 65 | |
| Y5C-15 | 15 | 12.7 | 26 | 45 | 45 | 200 | 100 | 65 | 65 | |
| Y5C-18 | 18 | 15.3 | 33 | 54 | 54 | 200 | 100 | 65 | 65 | |
| Y5C-21 | 21 | 17.0 | 36 | 63 | 63 | 200 | 100 | 65 | 65 | |
| Y5C-24 | 24 | 19.5 | 40 | 72 | 72 | 200 | 100 | 65 | 65 | |
| Y5C-27 | 27 | 22.0 | 45 | 81 | 81 | 200 | 100 | 65 | 65 | |
| Y5C-30 | 30 | 24.4 | 50 | 90 | 90 | 200 | 100 | 65 | 65 | |
| Y5C-33 | 33 | 27.5 | 56 | 99 | 99 | 200 | 100 | 65 | 65 | |
| Y5C-36 | 36 | 29.0 | 61 | 108 | 108 | 200 | 100 | 65 | 65 | |
