Technology
|
MOA Tape
|
Sys R.V
|
MOA R.V
|
MCOV
|
DC voltage
(U1mA)
|
1/10μs Steep Current Impulse
|
8/20μs Lightning Current Impulse
|
30/60μs Switching Current Impulse
|
2ms Rectangular Current Impulse
|
4/10μs High Current Impulse
|
IMG NO.
|
|
kV(r.m.s)
|
≮kV
|
≯kV
|
A
|
kA
|
|
HY5WD-4/9.5
|
3.15
|
4.0
|
3.2
|
5.7
|
10.7
|
9.5
|
7.6
|
400
|
65
|
IMG 8
|
|
HY5WD-8/18.7
|
6.3
|
8.0
|
6.3
|
11.3
|
21
|
18.7
|
15.0
|
400
|
65
|
IMG 9
|
|
HY5WD-13.5/31
|
10.5
|
13.5
|
10.5
|
18.9
|
34.7
|
31.0
|
25.0
|
400
|
65
|
IMG 10
|
|
HY5WD17.5/40
|
13.8
|
17.5
|
13.8
|
24.8
|
44.8
|
40.0
|
32.0
|
400
|
65
|
|
HY5WD-20/45
|
15.8
|
20
|
15.8
|
28.4
|
50.4
|
45.0
|
36.0
|
400
|
65
|
IMG 15
|
|
HY5WD-23/51
|
18.0
|
23
|
18.0
|
32.0
|
57.4
|
51.0
|
40.8
|
400
|
65
|
|
HY2.5WD-4/9.5
|
3.15
|
1.0
|
3.2
|
5.7
|
10.7
|
9.5
|
7.6
|
200
|
65
|
IMG 11
|
|
HY2.5WD-8/18.7
|
6.3
|
88
|
6.3
|
11.3
|
21.0
|
18.7
|
15.0
|
200
|
65
|
IMG 12
|
|
HY2.5WD-13.5/31
|
10.5
|
13.5
|
10.5
|
18.9
|
34.7
|
31.0
|
25.0
|
200
|
65
|
IMG 13
|
|
HY1.5WD-2.4/6
|
3.15
|
2.4
|
1.9
|
3.4
|
|
6.0
|
|
200
|
65
|
IMG 11
|
|
HY1.5WD-5/12
|
6.3
|
5.0
|
3.8
|
7.1
|
|
12.0
|
|
200
|
65
|
IMG 12
|
|
HY1.5WD-8/19
|
10.5
|
8.0
|
6.4
|
11.3
|
|
19.0
|
|
200
|
65
|
IMG 13
|
Notes

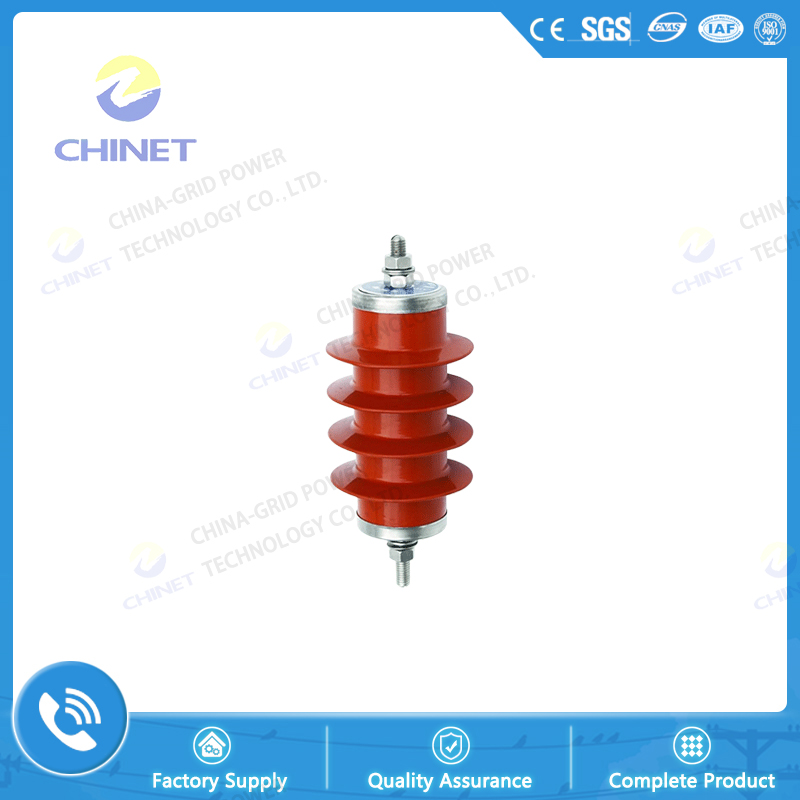

It is used to limit the overvoltage generated when the vacuum switch or the low oil switch switches the rotating motor, and protects the rotating motor from the operating overvoltage.
Note:1. "HY5-" is used for generators;2. "HY2.5-" is used for electric motors;3. "HY1.5-" is used for neutral points of motors.
