Utilizing advanced integral injection molding technology, the ceramics used are uniquely formulated to have good water absorption, anti-aging, tracking resistance and electrical corrosion resistance.
| MOA Tape | Sys R.V | MOA R.V | MCOV |
DC voltag (U1mA) |
1/10μs Steep Current Impulse | 8/20μs Lightning Current Impulse | 30/60μs Switching Current Impulse | 2ms Rectangular Current Impulse | 4/10μs High Current Impulse | IMG NO. |
| kV(r.m.s) | ≮kV | ≯kV | A | kA | ||||||

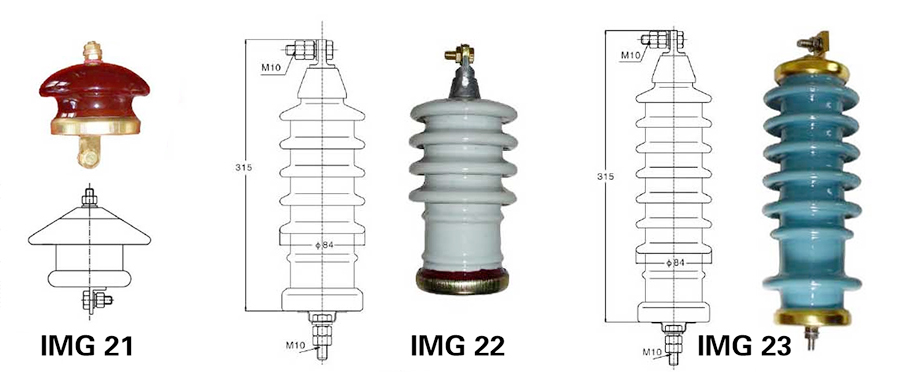

| Y5WS-5/15 | 3 | 5 | 4.0 | 8.0 | 17.6 | 15 | 12.8 | 100 | 65 | IMG 21 |
| Y5WS-12/35.8 | 6 | 12 | 9.6 | 18.0 | 41.2 | 35.8 | 30.6 | 100 | 65 | IMG 22 |
| Y5WS-10/30 | 10 | 8.0 | 16.0 | 34.5 | 30 | 25.5 | 100 | 65 | ||
| Y5WS-15/45.6 | 10 | 15 | 12 | 23.0 | 52.5 | 45.6 | 39 | 100 | 65 | IMG 23 |
| Y5WS-17/50 | 17 | 13.6 | 25.0 | 57.5 | 50.0 | 38.5 | 100 | 65 | ||
| Y5WZ-5/13.5 | 3 | 5 | 4.0 | 7.5 | 15.5 | 13.5 | 11.5 | 150 | 65 | |
| Y5WZ-10/27 | 6 | 10 | 8.0 | 15.0 | 31.0 | 27 | 23.0 | 150 | 65 | |
| Y5WZ-17/45 | 10 | 17 | 13.6 | 24.0 | 51.5 | 45 | 38.3 | 150 | 65 | |

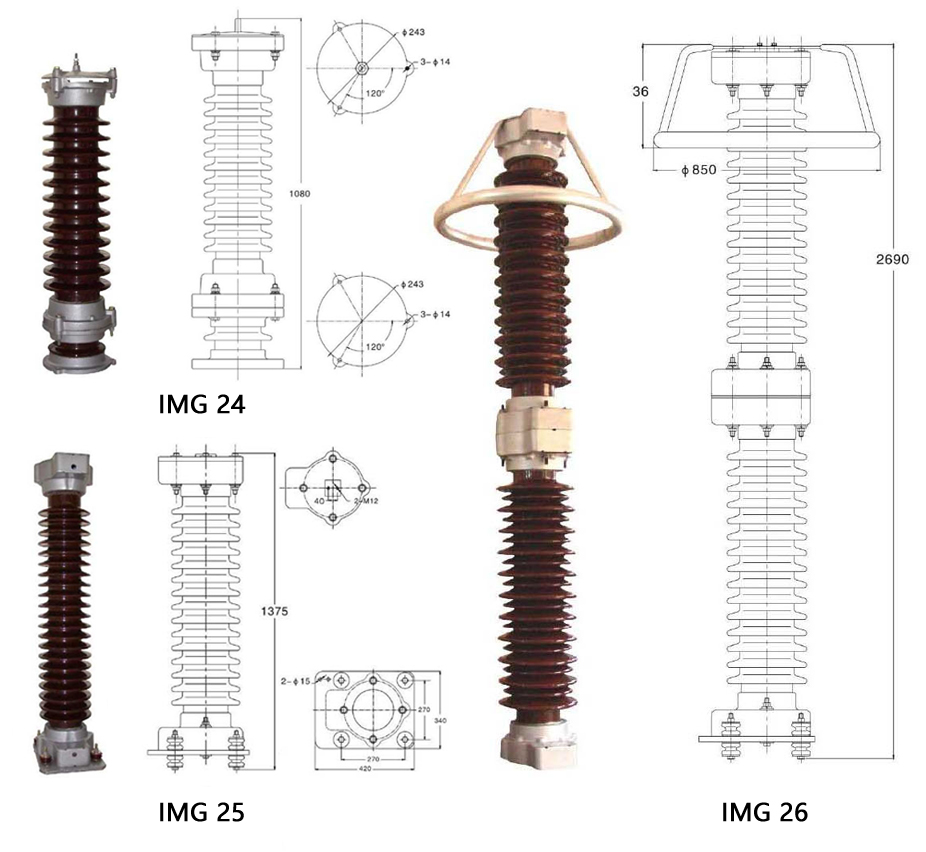

| Y5WZ-51/134 | 35 | 51 | 40.8 | 73.0 | 154 | 134 | 114 | 400 | 100 | IMG 24 |
| Y5WZ-54/134 | 35 | 54 | 43.2 | 77.0 | 154 | 134 | 114 | 400 | 100 | |
| Y5W-84/221 | 66 | 84 | 67.2 | 121 | 254 | 221 | 188 | 600 | 100 | |
| Y5W-90/235 | 66 | 90 | 72.5 | 130 | 270 | 235 | 201 | 600 | 100 | |
| Y5W-100/260 | 110 | 100 | 78.0 | 145 | 299 | 260 | 221 | 600 | 100 | IMG 25 |
| Y5W-108/281 | 110 | 108 | 84.0 | 157 | 323 | 281 | 239 | 600 | 100 | |
| Y10WZ-51/134 | 35 | 51 | 40.8 | 73.0 | 154 | 134 | 114 | 400 | 100 | |
| Y10WZ-54/134 | 35 | 54 | 43.2 | 77.0 | 154 | 134 | 114 | 400 | 100 | |
| Y10W-90/235 | 66 | 90 | 72.5 | 130 | 264 | 235 | 201 | 600 | 100 | |
| Y10W-96/250 | 110 | 96 | 76.8 | 140 | 288 | 250 | 212 | 600 | 100 | IMG 25 |
| Y10W-100/260 | 110 | 100 | 78.0 | 145 | 288 | 260 | 221 | 600 | 100 | |
| Y10W-108/281 | 110 | 108 | 84.0 | 157 | 314 | 281 | 239 | 600 | 100 | |
| Y10W-192/500 | 220 | 192 | 150 | 280 | 560 | 500 | 424 | 800 | 100 | IMG 26 |
| Y10W-200/520 | 220 | 200 | 156 | 292 | 582 | 520 | 442 | 800 | 100 | |
| Y10W-216/562 | 220 | 216 | 169 | 314 | 628 | 562 | 477 | 800 | 100 | |
|
Typical product parameters of porcelain oxide metal oxide arresters for 3~220kV distribution and power station (Executive Standard: GB11032-2000) |
||||||||||
|
||||||||||
