Classification：Connecting Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
| State Network Model | 85 Standard Model |

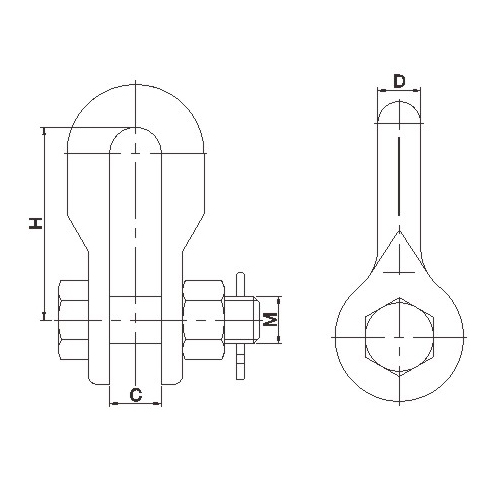

Main Dimensions (mm) |
Nominal Failure Load (kN) |
Weight (kg) |
||||
| C | D | M | H | |||||
|
U-0770 | U-7 | 20 | 16 | 16 | 70 | 70 | 0.46 |
| U-1085 | U-10 | 20 | 16 | 18 | 85 | 100 | 0.66 | |
| U-1290 | U-12 | 22 | 18 | 22 | 90 | 120 | 0.99 | |
| U-1695 | U-16 | 24 | 20 | 24 | 95 | 160 | 1.3 | |
| U-21 | 30 | 24 | 27 | 100 | 210 | 2.12 | ||
| U-21100 | 24 | 20 | 24 | 100 | 210 | 1.45 | ||
| U-25 | 34 | 26 | 30 | 110 | 250 | 3.00 | ||
| U-25110 | 28 | 24 | 27 | 110 | 250 | 2.07 | ||
| U-30 | 38 | 30 | 36 | 130 | 300 | 4.33 | ||
| U-32115 | 32 | 28 | 30 | 115 | 320 | 2.96 | ||
| U-42140 | 36 | 32 | 36 | 140 | 420 | 4.61 | ||
| State Network Model |
Main Dimensions (mm) |
Nominal Failure Load (kN) |
Weight (kg) |
|||
| C | D | M | H | |||
| UK-0770 | 24 | 16 | 16 | 70 | 70 | 0.48 |
| UK-1085 | 26 | 16 | 18 | 85 | 100 | 0.68 |
| UK-1290 | 28 | 18 | 22 | 90 | 120 | 1.02 |
| UK-1690 | 28 | 20 | 24 | 90 | 160 | 1.31 |
| UK-21100 | 30 | 20 | 24 | 100 | 210 | 1.47 |
| UK-25110 | 34 | 24 | 27 | 110 | 250 | 2.1 |
| UK-32130 | 36 | 28 | 30 | 130 | 320 | 3.13 |
