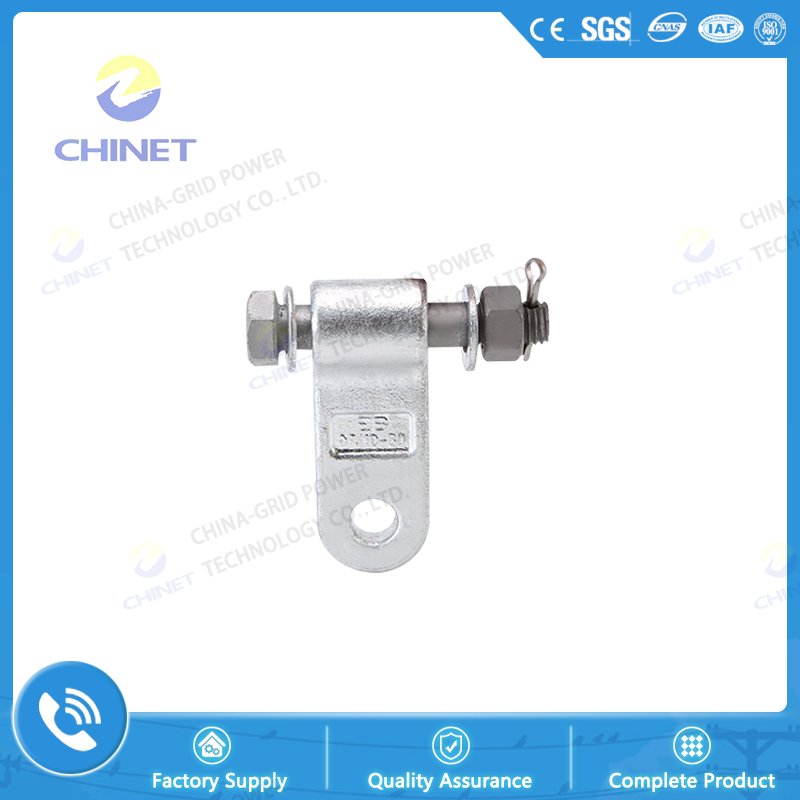

Classification：Connecting Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
| State Network Model |

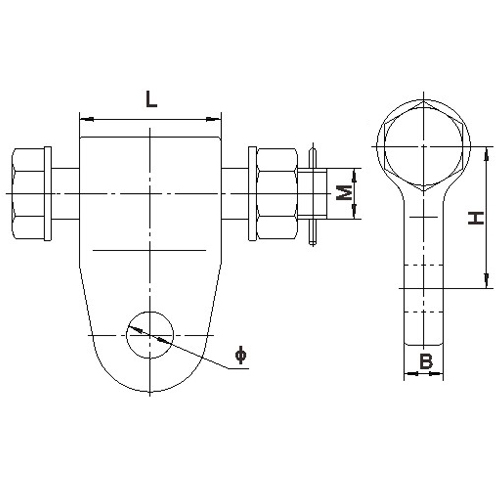

Main Dimensions (mm) |
Nominal Failure Load (kN) |
Weight (kg) |
||||||
| L | H | Φ | M | B | |||||
|
EB-07/10-80 | 45 | 80 | 18 | 18 | 16 | 70 | ||
| EB-10/12-100 | 60 | 100 | 20 | 22 | 16 | 100 | |||
| EB-10/21-100 | 80 | 100 | 20 | 24 | 16 | 100 | |||
| EB-12/16-100 | 60 | 100 | 24 | 24 | 16 | 120 | |||
| EB-16/21-100 | 80 | 100 | 26 | 24 | 18 | 160 | |||
| EB-16/42-100 | 100 | 100 | 26 | 36 | 18 | 160 | |||
| EB-21/42-100 | 100 | 100 | 26 | 36 | 20 | 210 | |||
| EB-21/42-120 | 112 | 120 | 26 | 36 | 20 | 210 | |||
| EB-25/42-100 | 100 | 100 | 30 | 36 | 24 | 250 | |||
| EB-32/42-100 | 100 | 100 | 33 | 36 | 28 | 320 | |||
| EB-32/42-120 | 112 | 120 | 33 | 36 | 28 | 320 | |||
|
Closed pins are made of stainless steel, the rest are hot-dip galvanized steel |
|||||||||
