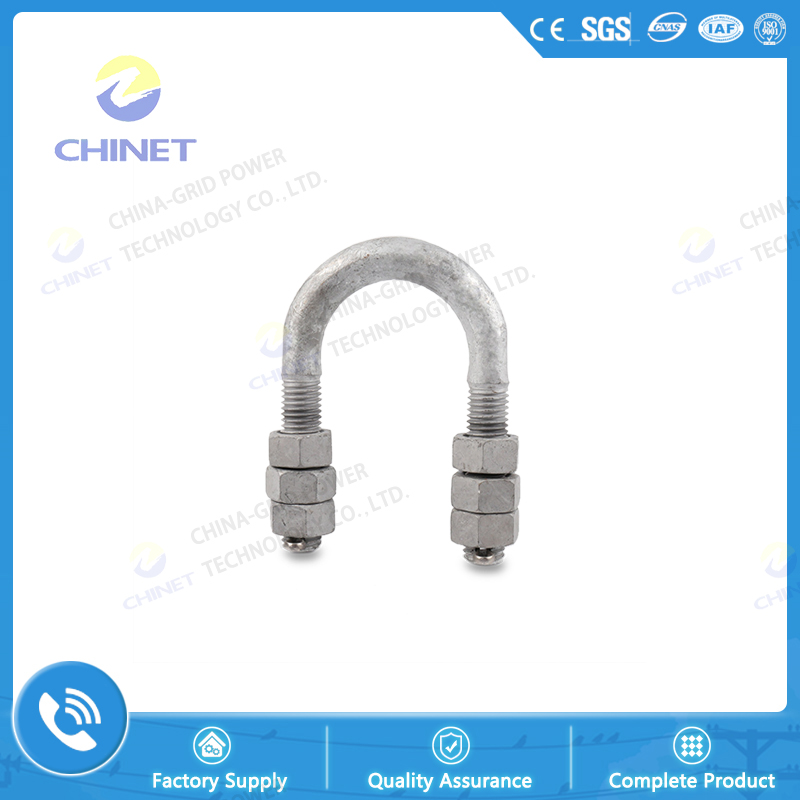

The U-bolts is used as the tower hardware of the suspension string, which is fixed with the cross arm of the rod by the way of bolt connection, so that the cross arm structure is simplified.

The other end of the U-bolts is connected with the insulator string in a ring connection mode, thus forming a flexible turning point. But its disadvantage is that the thread bears the tensile load, which is easy to cause fatigue damage after long-term operation.

W-type screw adds a platform at the lower part of the thread, which can counteract the bending moment caused by horizontal load, and its performance is improved. U-type screw type joint tower hardware should only be used on ground wire and small section conductor.

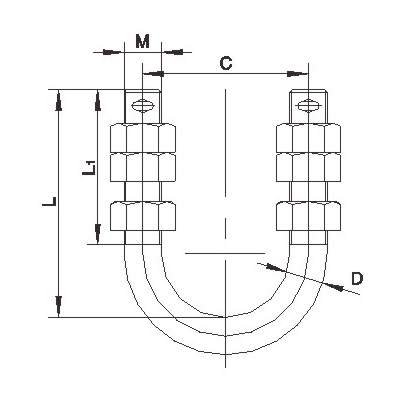

85 Standard Model		Main Dimensions (mm)			Nominal Failure Load (kN)			Reference Weight (kg)
		C	M	L	X to To	Y to To	Z to To
	U-1670	70	16	110	16	3.0	30	0.57
	U-1680	80	16	90	16	3.0	30	0.53
	U-1870	70	18	110	18	3.5	35	0.82
	U-1880	80	18	110	18	3.5	35	0.83
	U-2080	80	20	120	24	4.9	47	1.08
	U-2280	80	22	130	28	6.5	57	1.30

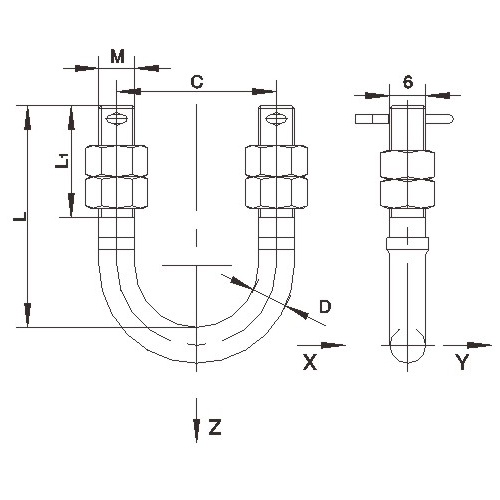

85 Standard Model		Main Dimensions (mm)				Nominal Failure Load (kN)			Reference Weight (kg)
		C	M	L1	L	Vertical Load	Longitudinal Load	Transverse Load
	UJ-1880	80	18	46	105	18	5.3	35	0.85
	UJ-2080	80	20	49	120	24	7.4	47	1.10
	UJ-2280	80	22	49	127	28	10.8	57	1.40
