Classification：Connecting Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667

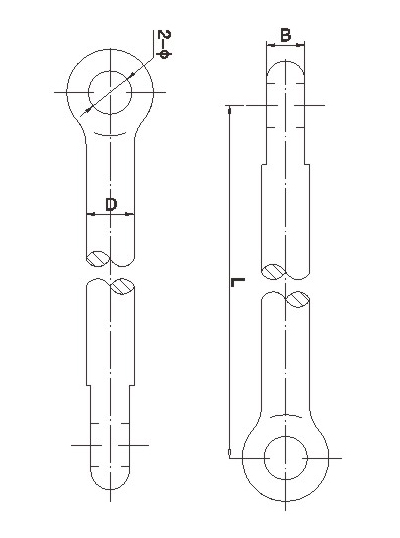

| State Network Model | Main Dimensions (mm) | Nominal Failure Load (kN) | Weight (kg) | ||||
| B | D | Φ | L | ||||
|
YL-07430 | 16 | 18 | 18 | 430 | 70 | |
| YL-12430 | 16 | 22 | 24 | 430 | 120 | ||
| YL-12570 | 16 | 22 | 24 | 570 | 120 | ||
| YL-16110 | 18 | 22 | 26 | 110 | 160 | ||
| YL-16430 | 18 | 22 | 26 | 430 | 160 | ||
| YL-16510 | 18 | 22 | 26 | 510 | 160 | ||
| YL-16570 | 18 | 22 | 26 | 570 | 160 | ||
| YL-16700 | 18 | 22 | 26 | 700 | 160 | ||
| YL-21570 | 20 | 24 | 26 | 570 | 210 | ||
| YLP-16260 | 20 | 24 | 26 | 260 | 160 | ||
| YLP-16850 | 20 | 24 | 26 | 850 | 160 | ||
| YLP-16910 | 20 | 24 | 26 | 910 | 160 | ||
| YLP-16970 | 20 | 24 | 26 | 970 | 160 | ||
| YLP-16990 | 20 | 24 | 26 | 990 | 160 | ||
| YLP-25855 | 30 | 30 | 33 | 855 | 250 | ||
| YLP-25915 | 30 | 30 | 33 | 915 | 250 | ||
| YLP-25935 | 30 | 30 | 33 | 935 | 250 |
|
|
