Classification：Stay Rod Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667

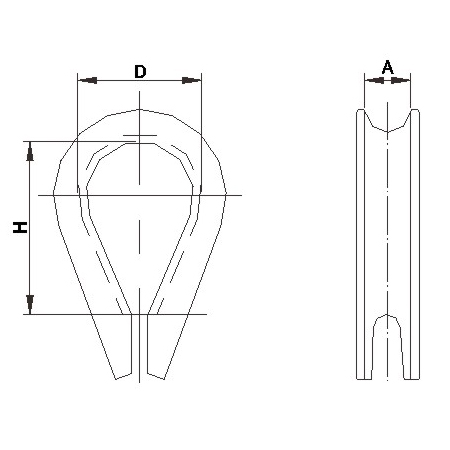

| 85 Standard model | Equivalent model | Application of steel wire cutting (mm2) | Main dimensions (mm) | Weight (kg) | |||
| A | H | D | |||||
|
▲ | 5# | 10 | 6 | 20 | 12 | 0.01 |
| JKX-0 | 6# | 25 | 6.5 | 26 | 15 | 0.02 | |
| JKX-1 | 8# | 25 ~ 35 | 8.5 | 32 | 20 | 0.04 | |
| JKX-2 | 10# | 50 ~ 70 | 10.5 | 40 | 25 | 0.06 | |
| JKX-3 | 12# | 100 ~ 125 | 13 | 48 | 30 | 0.09 | |
| JKX-4 | 16# | 135 ~ 150 | 17 | 64 | 40 | 0.14 | |
| ▲ | 20# | / | 21 | 80 | 50 | 0.29 | |
| ▲ | 22# | / | 23 | 88 | 55 | 0.44 | |
| ▲ | 24# | / | 25 | 96 | 60 | 0.78 | |
|
The product is hot-dip galvanized steel |
|||||||
