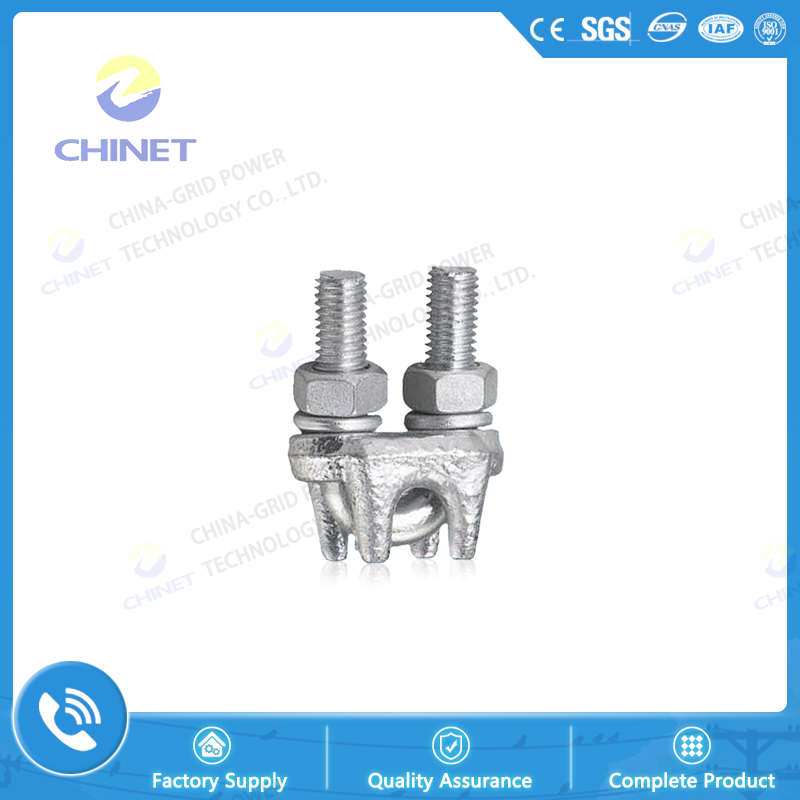

JK Galvanized Wire Rope Clamp Steel Wire Clip

Classification：Stay Rod Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Description:

JK type galvanized wire rope clamp is made up of malleable casting & hot-dip galvanized steel, mainly suitable for arrangement of guy grip & lightening wire subjected to electric line; it is convenient & tight to connect & fix steel rope.

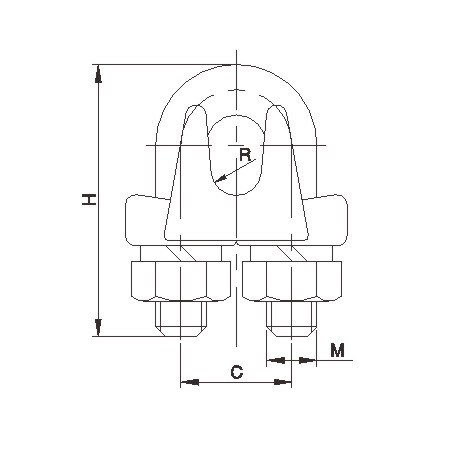

Type		Applicable Steel Wire Outside Diameter (mm)	Dimension (mm)				Weight (kg)
Type		Applicable Steel Wire Outside Diameter (mm)	M	C	R	L	Weight (kg)
	JK-0	4.20~5.40	8	17	4	41	0.08
	JK-1	6.60~8.40	10	21	5	52	0.16
	JK-2	9.00~11.50	12	25	6	59	0.24
	JK-3	12.0~14.0	14	30	7.5	74	0.36
Body is malleable cast iron, the rest are steel, hot-dip galvanized
