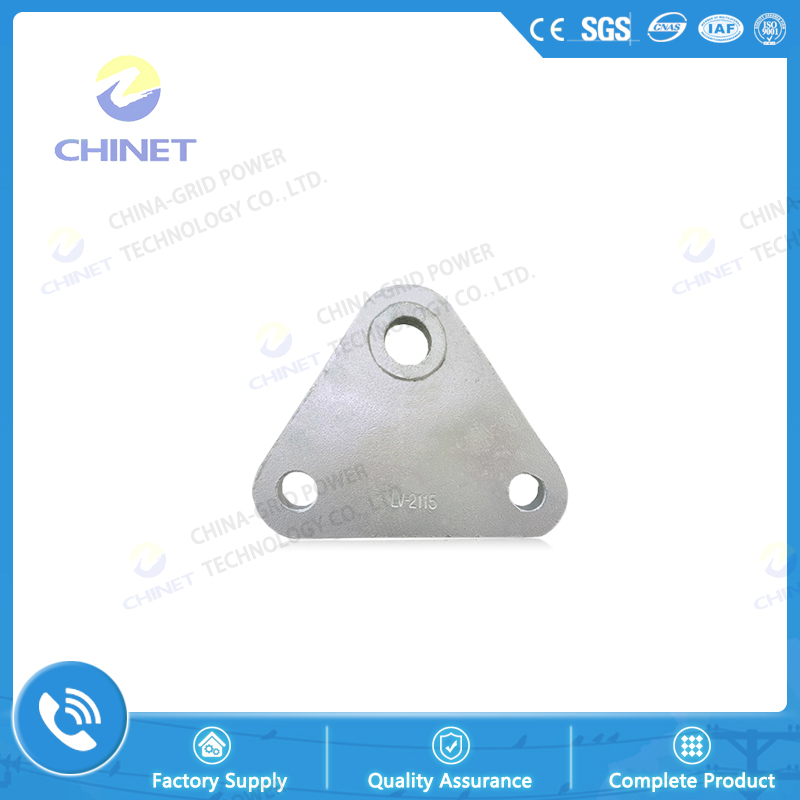

LV type galvanized steel yoke plate is made up of stainless steel & hot-dip galvanized steel, mainly suitable for connection of several insulator strings or force-bearing assembly of several insulator strings as a whole plate-shaped connecting fitting. It is extensively used for overhead transmission line.

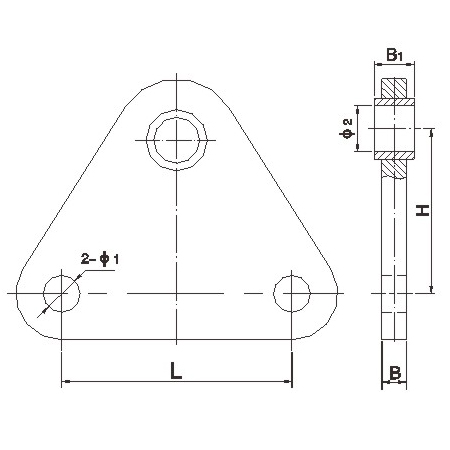

Type		Dimension (mm)						Nominal Failure Load (kN)	Weight (kg)
		B	B1	Φ1	Φ2	H	L
	LV-0712	16	-	20	18	60	120	70	1.34
	LV-1020	16	-	20	20	60	200	100	2.30
	LV-1214	16	-	20	24	90	140	120	2.40
	LV-1612	18	-	26	26	100	120	160	3.11
	LV-2115	16	26	24	30	100	150	210	2.94
	LV-3018	18	32	26	39	120	180	300	4.50
	LV-5012	20	40	30	44	120	120	500	5.80
	LV-5020	30	40	33	45	150	200	500	7.70
Closed pins are made of stainless steel, the rest are made of hot-dip galvanized steel
