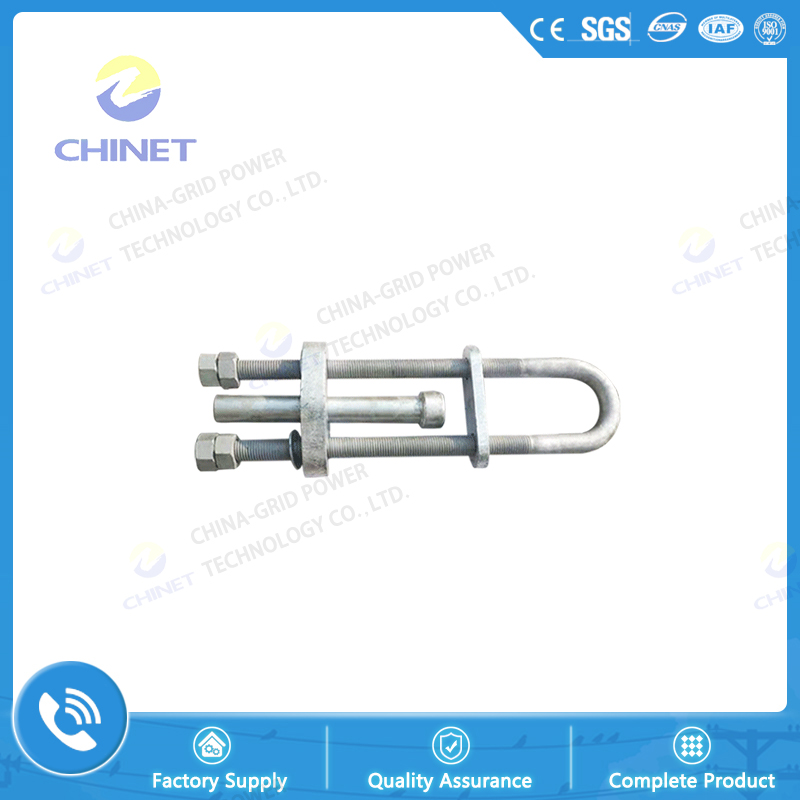

NLY Crimping Pull Conductor Clamp

Classification:Stay Rod Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Technology:
85 Standard model Applicable steel wire diameter
(mm)
Main dimensions
(mm)
Nominal failure load
(kN)
C M L L1
NLY-50 1 x 7-9.0-1370-GB1200-75 62 18 320 230 65.1
NLY-70 1 x 7-11.0-1370-GB1200-75 62 18 320 230 91.1
NLY-100 1 x 19-13.0-1470-GB1200-75 74 22 500 300 139.6
NLY-120 1 x 19-14.0-1470-GB1200-75 82 24 580 350 167.6
NLY-135 1 x 19-15.0-1470-GB1200-75 82 24 580 350 188.5
NLY-150 1 x 19-16.0-1470-GB1200-75 104 24 580 400 209.5
NLY-165 1 x 37-16.8-1470-GB1200-75 104 27 588 400 230.4
NLY-180 1 x 37-17.5 -1470-GB1200-75 114 30 640 450 251.4
NLY-195 1 x 37-18.2-1470-GB1200-75 114 30 640 460 272.3
NLY-265 1 x 37-21.0-1470-GB1200-75 128 36 670 490 367
NLY-100E 1 x 19-13.0-1570-GB1200-88 88 22 490 300 151
NLY-125E 1 x 19-14.5-1570-GB1200-88 94 24 580 380 188
NLY-150E 1 x 19-16.0-1570-GB1200-88 104 27 640 400 228
NLY-180E 1 x 19-17.5-1570-GB1200-88 114 30 640 420 273
NLY-240E 1 x 19-20.0-1570-GB1200-88 128 36 670 440 357
