JTB Type Overhead Electrical Cable Splicing Sleeve Joint for Jumper Conductor

Classification:Splicing Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Specifications
Technology:

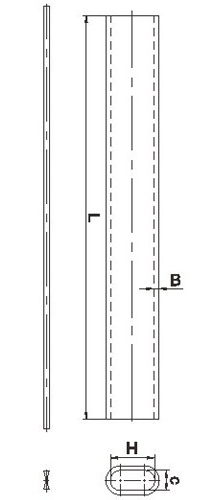

Type Applicable Conductor Main Dimensions (mm) Weight (kg)
Specifications Outside Diameter (mm) B H c L
JTB-70/40 LGJ-95/20 13.87 2.6 31.5 15.2 260 0.19
JTB-95/55 LGJ-150/25 17.10 3.1 38.0 19.0 310 0.32
JTB-300/25 LGJ-300/25 23.76 5.0 54.0 26.0 296 0.69
JTB-400/35 LGJ-400/35 26.82 5.0 60.0 29.0 330 0.75
JTB-400/95 LGJ-400/95 29.14 5.5 64.0 31.0 330 1.01
