Classification：Splicing Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
|

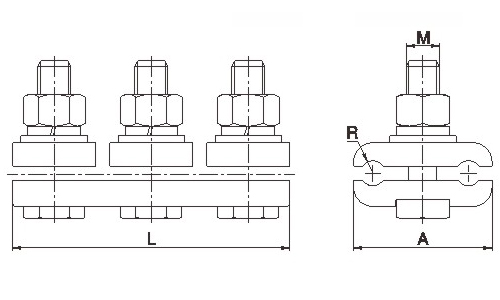

Type | Suitable for Wire Cutting (mm2) | Bolt Quantity | Main Dimensions (mm) | |||
| R | A | L | M | ||||
| JBT-0 | 16 ~ 25 | 2 | 4.0 | 35 | 55 | 10 | |
| JBT-1 | 35 ~ 50 | 2 | 5.0 | 40 | 60 | 10 | |
| JBT-2 | 70 ~ 95 | 3 | 7.0 | 50 | 90 | 12 | |
| JBT-3 | 120 ~ 150 | 3 | 8.5 | 63 | 108 | 12 | |
| JBT-4 | 185 ~ 240 | 3 | 10.5 | 65 | 108 | 12 | |
|

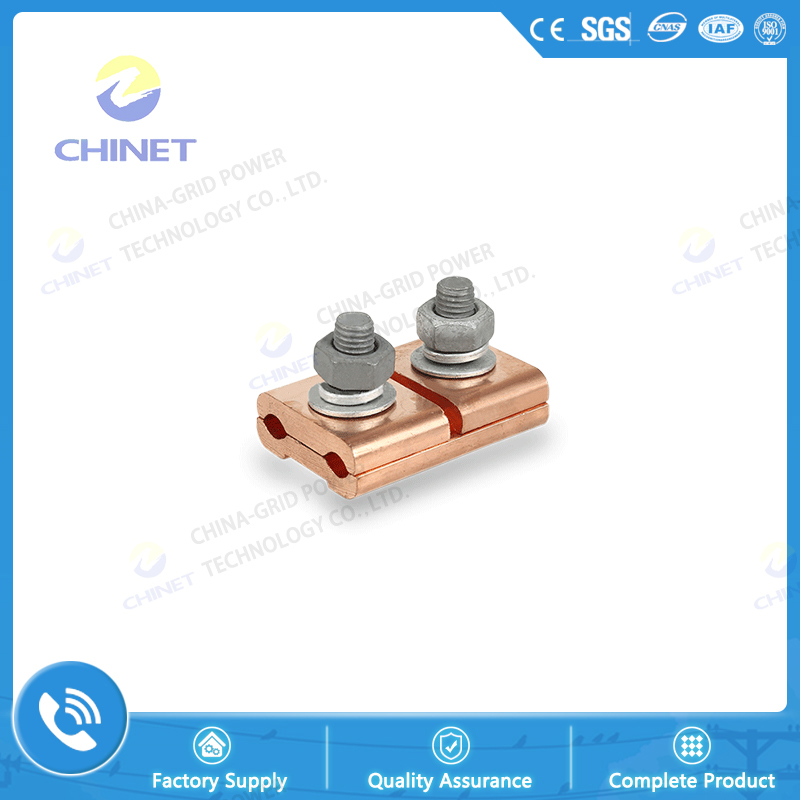

The clamp body and cover are made of T3 copper profile and the rest are made of hot-dip galvanized steel. |
|||||||
