Classification：Splicing Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
|
Type | Application of aluminum | Applicable Copper Wire |

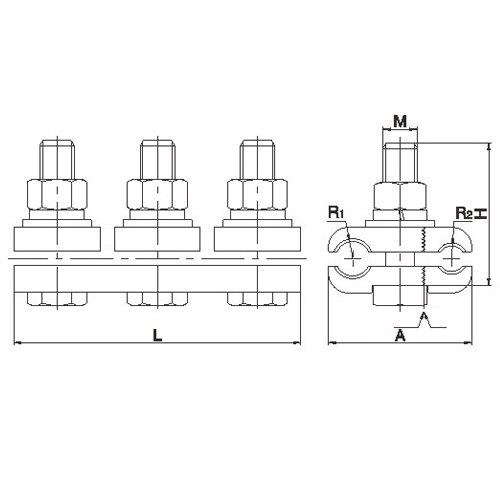

Main Dimensions (mm) |
||||
| A | L | R1 | R2 | M | ||||
| JBTL-00 | 16 ~ 25 | 16 ~ 25 | 35 | 58 | 4.0 | 4.0 | 10 | |
| JBTL-10 | 35 ~ 50 | 16 ~ 25 | 40 | 70 | 5.0 | 4.0 | 10 | |
| JBTL-11 | 35 ~ 50 | 35 ~ 50 | 40 | 70 | 5.0 | 5.0 | 10 | |
| JBTL-21 | 70 ~ 95 | 35 ~ 50 | 50 | 100 | 7.0 | 5.0 | 12 | |
| JBTL-22 | 70 ~ 95 | 70 ~ 95 | 50 | 100 | 7.0 | 7.0 | 12 | |
| JBTL-31 | 120 ~ 150 | 35 ~ 50 | 63 | 110 | 8.5 | 5.0 | 12 | |
| JBTL-32 | 120 ~ 150 | 70 ~ 95 | 63 | 110 | 8.5 | 7.0 | 12 | |
| JBTL-33 | 120 ~ 150 | 120 ~ 150 | 63 | 110 | 8.5 | 8.5 | 12 | |
| JBTL-41 | 185 ~ 240 | 35 ~ 50 | 65 | 110 | 10.5 | 5.0 | 12 | |
| JBTL-42 | 185 ~ 240 | 70 ~ 95 | 65 | 110 | 10.5 | 7.0 | 12 | |
| JBTL-43 | 185 ~ 240 | 120 ~ 150 | 65 | 110 | 10.5 | 8.5 | 12 | |
| JBTL-44 | 185 ~ 240 | 185 ~ 240 | 65 | 110 | 10.5 | 10.5 | 12 | |
|
The clamp manufactured by flash welding process |
||||||||
