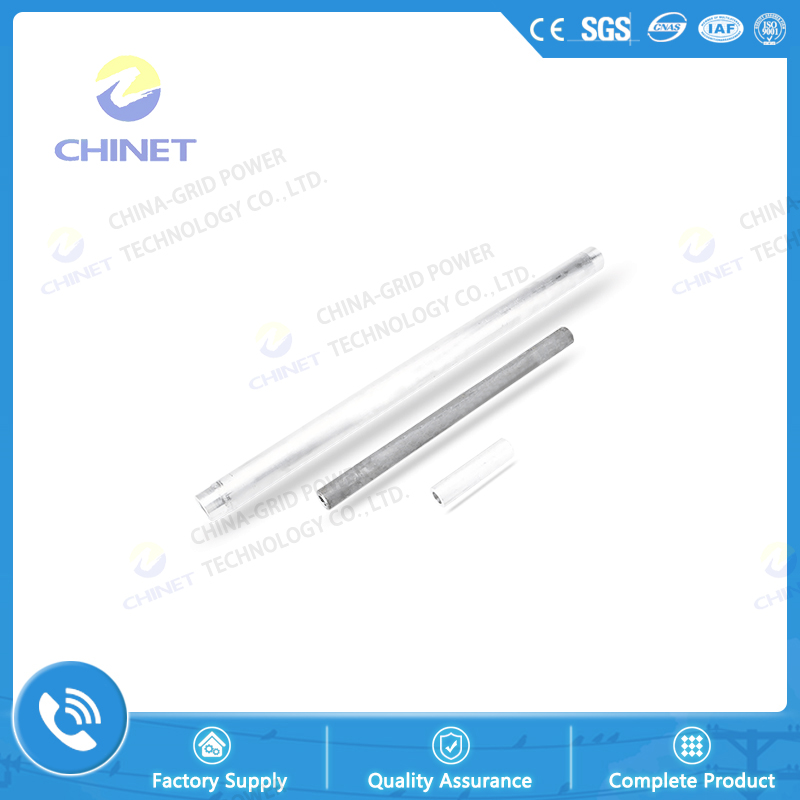

JY-BG Splicing Sleeve for Aluminum Clad Steel Stranded Wire Hydraulic Type

Classification:Splicing Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Specifications
Technology:
Type Applicable Conductor Main Dimensions
(mm)
Grip
(≥kN)
Specifications Outside Diameter
(mm)

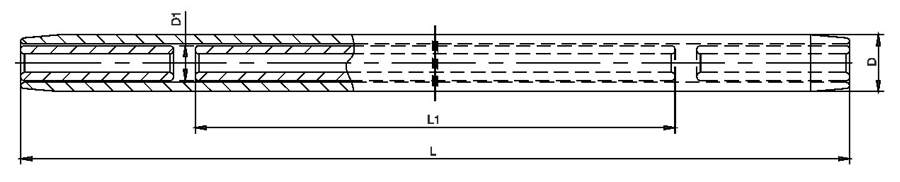

D D1 L L1
JY-35BG-20 JLB20A-35 7.80 30 16 400 220 38.0
JY-45BG-20 JLB20A-45 8.70 32 18 440 240 53.0
JY-50BG-20 JLB20A-50 9.00 32 18 440 240 55.6
JY-55BG-20 JLB20A-55 9.60 32 20 500 300 64.5
JY-65BG-20 JLB20A-65 10.50 36 20 500 300 73.0
JY-70BG-20 JLB20A-70 11.00 36 22 500 300 77.5
JY-80BG-20 JLB20A-80 11.50 36 24 550 330 85.0
JY-95BG-20 JLB20A-95 12.48 36 24 580 380 96.0
JY-100BG-20 JLB20A-100 13.00 38 26 620 380 116.0
JY-100BG-40 JLB40A-100 13.00 36 24 600 380 58.7
JY-120BG-20 JLB20A-120 14.25 42 30 680 420 138.9
JY-120BG-40 JLB40A-120 14.25 36 24 630 380 71.5
JY-150BG-20 JLB20A-150 15.75 45 32 740 440 169.6
JY-150BG-40 JLB40A-150 15.75 38 26 660 400 86.1
