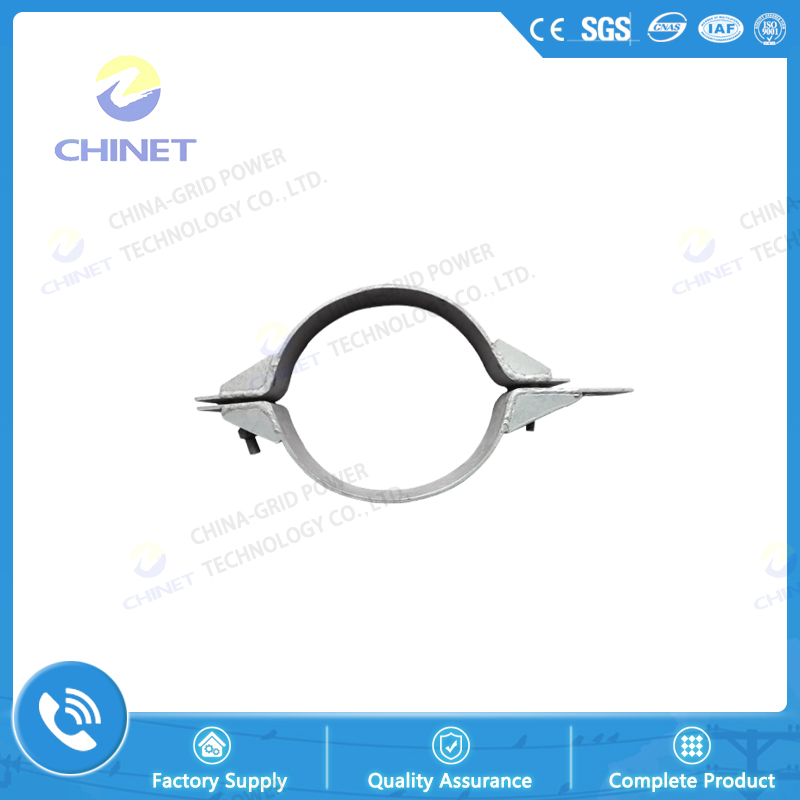

TGX Installation of Fittings Immobility Clamp For Pole

Classification:Preformed Optical Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Product Description
Description:

Uses: Used for the connection of the wire clamp on the tower.

The tensile clamp is used for the installation of the tensile clamp; the linear clamp is used for the installation of the suspension clamp.

Name Model Suitable Range
Diameter of mouting position
Weight
(kg)
Material Failing Load
(kN)
Hoop TGX 125 070 101~125 mm 2.3 Galvanized steel 70
TGX 150 070 126~150 mm 2.5 Galvanized steel 70
TGX 175 070 151~175 mm 2.7 Galvanized steel 70
TGX 200 070 176~200 mm 2.9 Galvanized steel 70
TGX 225 070 201~225 mm 3.2 Galvanized steel 70
TGX 250 070 226~250 mm 3.4 Galvanized steel 70
TGX 275 070 251~275 mm 4.0 Galvanized steel 70
TGX 300 070 276~300 mm 4.2 Galvanized steel 70
TGX 325 070 301~325 mm 4.4 Galvanized steel 70
TGX 350 070 326~350 mm 4.6 Galvanized steel 70
TGX 375 070 351~375 mm 4.9 Galvanized steel 70
TGX 400 070 376~400 mm 5.1 Galvanized steel 70
TGX 425 070 401~425 mm 5.3 Galvanized steel 70
TGX 450 070 426~450 mm 5.5 Galvanized steel 70
TGX 475 070 451~475 mm 5.7 Galvanized steel 70
TGX 500 070 476~500 mm 6.0 Galvanized steel 70
TGX 525 070 501~525 mm 6.2 Galvanized steel 70
TGX 550 070 526~550 mm 6.4 Galvanized steel 70
TGX 575 070 551~575 mm 6.6 Galvanized steel 70
TGX 600 070 576~600 mm 6.8 Galvanized steel 70
TGX 625 070 601~625 mm 7.1 Galvanized steel 70
TGX 650 070 626~650 mm 7.3 Galvanized steel 70
TGX 675 070 651~675 mm 7.5 Galvanized steel 70
TGX 700 070 676~700 mm 7.7 Galvanized steel 70
TGX 800 070 701~800 mm 8.7 Galvanized steel 70
TGX 900 070 801~900 mm 9.7 Galvanized steel 70
TGX 1000 070 901~1000 mm 9.9 Galvanized steel 70
