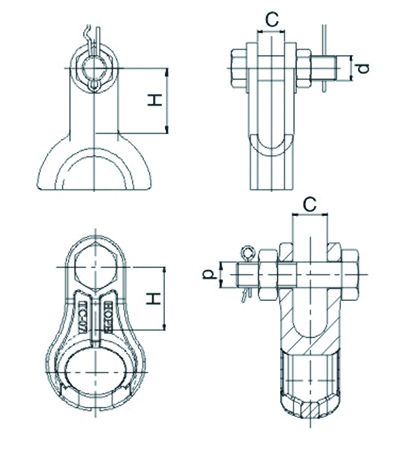

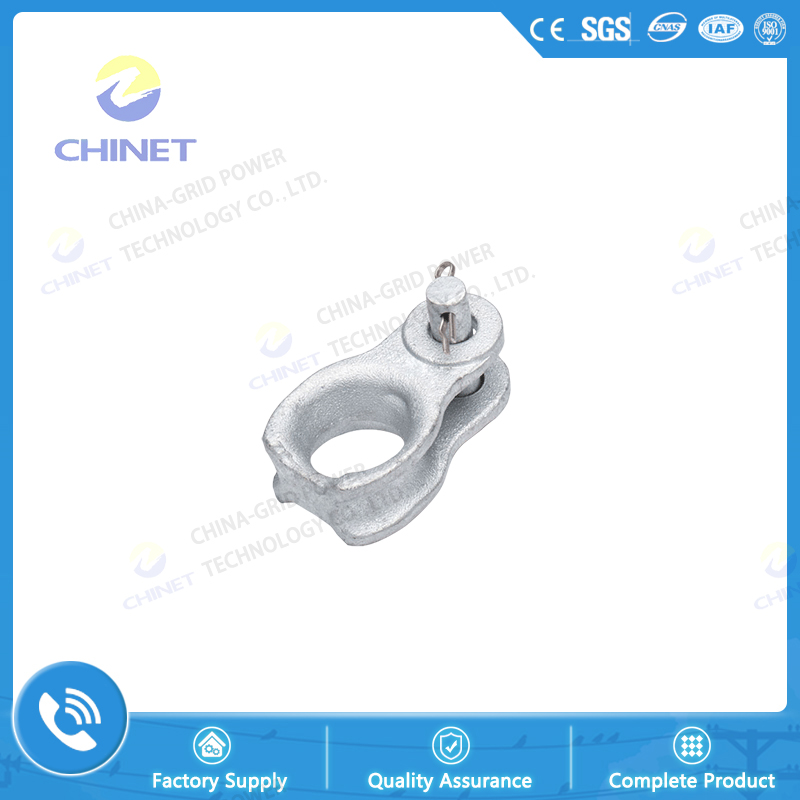

Thimble:
Model IMG No. Dimensiongs(mm) Failing Load (kN) Weight (kg)
H C D
TC 04 1 51 18 16 40 0.5
TC 07 2 40 23 16 70 0.9
TC 10 2 50 24 18 100 0.9
TC 12 2 50 24 22 120 0.9
TC 16 2 62 28 24 160 1.7
Strap PD-300:
Model Dimensiongs(mm) Failing Load (kN) Weight (kg)
B D L A
PD-300-7 16 18 300 40 70 2.1
PD-300-10 16 20 300 40 100 2.6
PD-300-12 16 24 300 40 120 2.7
PD-300-16 22 26 300 60 160 3.2

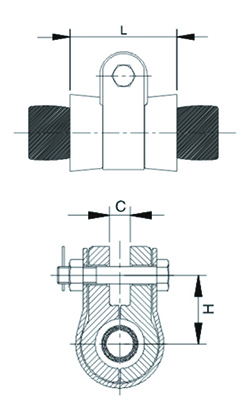

AGS Clamp:
Name/Model Dimensions Collocate Weight(kg) Failing Load (kN)
L H C Latex Pad Overhang NiP
HOU-95 95 55 19 XJ1754
XJ1906 		HOU-95 1.28 70
HOU-114 114 60 22 XJ2106
XJ2350 		HOU-114 1.70 100
HOU-125 125 64 22 XJ2540
XJ2700 		HOU-125 1.97 120
HOU-135 135 68 30 XJ2840
XJ3062 		HOU-135 2.60 130

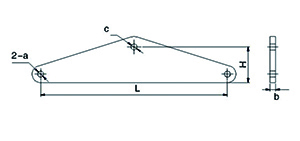

Yoke Plate:
Model Dimensiongs (mm) Failing Load (kN) Weight (kg)
a b c h L
HPL-460 18 16 32 160 460 120 7.5
HPL-560 18 16 32 180 560 120 9.8
HPL-660 20 18 32 200 660 160 12.2
Clevis:
Model Dimensiongs (mm) Failing Load (kN) Weight (kg)
a b c h L
GHX-04 18 60 20 100 18 40 0.5

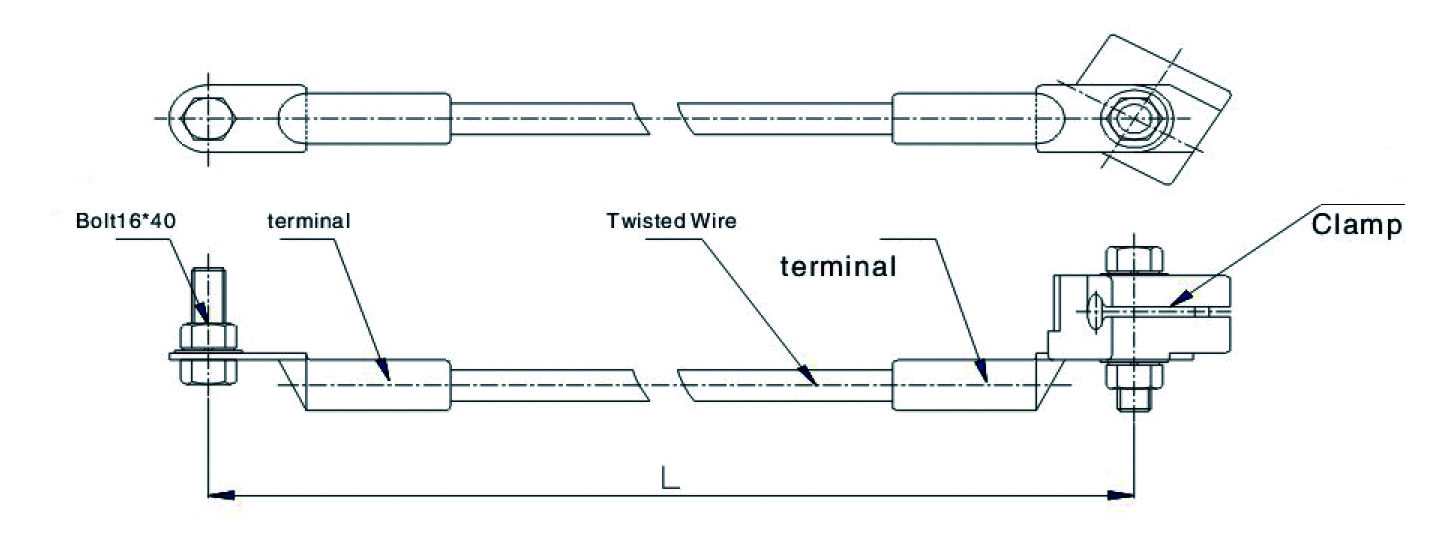

Ground Wire Clamp:
Model Conductor Dia. (mm) Cable Dia. (mm) Collocation Weight (kg)
Ground Line Length Clamp Model
JXJ70-1500 11.40 (79.39mm2) 7.8-11.6 1500 C-115 0.95
JXJ70-2000 11.40 (79.39mm2) 7.8-11.6 2000 C-115 1.09
JXJ70-2500 11.40 (79.39mm2) 7.8-11.6 2500 C-115 1.23
JXJ70-3000 11.40 (79.39mm2) 7.8-11.6 3000 C-115 1.37
JXJ95-1500 13.61 (109.72mm2) 11.7-15.0 1500 C-147 1.11
JXJ95-2000 13.61 (109.72mm2) 11.7-15.0 2000 C-147 1.30
JXJ95-2500 13.61 (109.72mm2) 11.7-15.0 2500 C-147 1.49
JXJ95-3000 13.61 (109.72mm2) 11.7-15.0 3000 C-147 1.68
JXJ150-1500 16.00 (152.80mm2) 15.1-18.0 1500 C-180 1.56
JXJ150-2000 16.00 (152.80mm2) 15.1-18.0 2000 C-180 1.82
JXJ150-2500 16.00 (152.80mm2) 15.1-18.0 2500 C-180 2.09
JXJ150-3000 16.00 (152.80mm2) 15.1-18.0 3000 C-180 2.35
