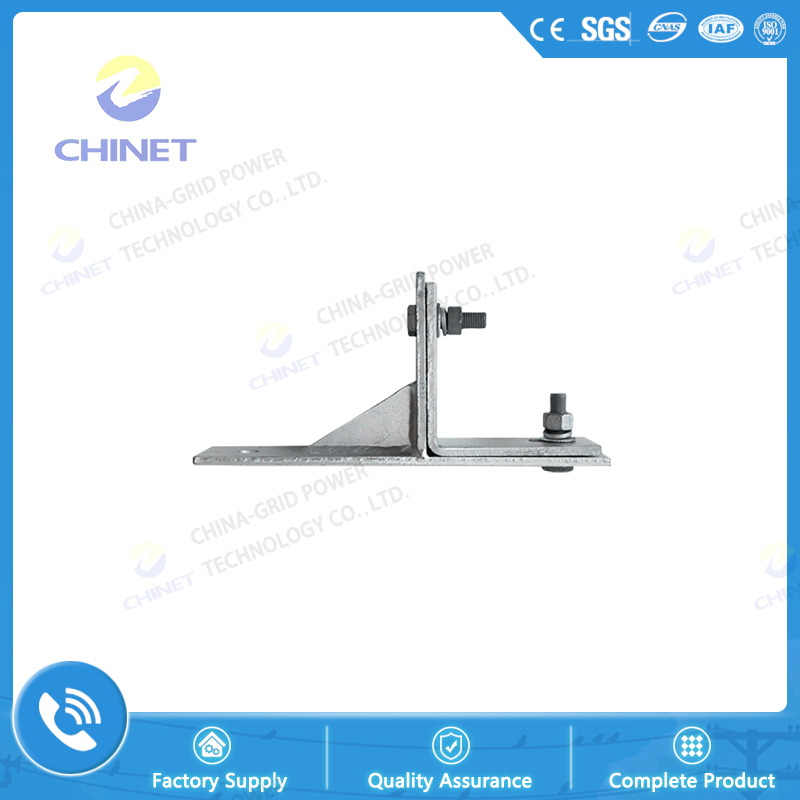

Uses: for clamp connection on the tower, tension splint is for the installation of tension clamp.

Straight Splint is for the installation of Suspension Clamp

1. Selected galvanized steel material is carefully polished, strong hardness, corrosion resistance, stable product performance

2. Surface layering process plating coating, good insulation performance, corrosion resistance, rust resistance, durable

3. Sleek design edge, fine grinding, not easy to scratch the hand when using, to avoid injury during operation

4. Designed according to the engineering ingenuity, it is designed for the fixed use of the iron tower, the structure is stable and reasonable, and the operation is simple.

5. Factory direct sales, various models, complete specifications, select the applicable model according to demand, flexible installation

ProductName	Model	Suitable Range	Weight (kg)	Material	Failing Load (KN)
Straight Splint	TGZ 080 070	≤80mm	3.1	Galvanized steel	70
	TGZ 100 070	81~100 mm	3.4	Galvanized steel	70
	TGZ 125 070	101~125 mm	3.7	Galvanized steel	70
	TGZ 145 070	126~145 mm	4.0	Galvanized steel	70
	TGZ 165 070	146~165 mm	4.4	Galvanized steel	70
	TGZ 200 070	166~200 mm	4.9	Galvanized steel	70
Tension Splint	TGZ 080 100	≤80mm	2.8	Galvanized steel	70
	TGZ 100 100	81~100 mm	3.1	Galvanized steel	70
	TGZ 125 100	101~125 mm	3.5	Galvanized steel	70
	TGZ 145 100	126~145 mm	3.8	Galvanized steel	70
	TGZ 165 100	146~165 mm	4.5	Galvanized steel	70
	TGZ 200 100	166~200 mm	5.0	Galvanized steel	70
