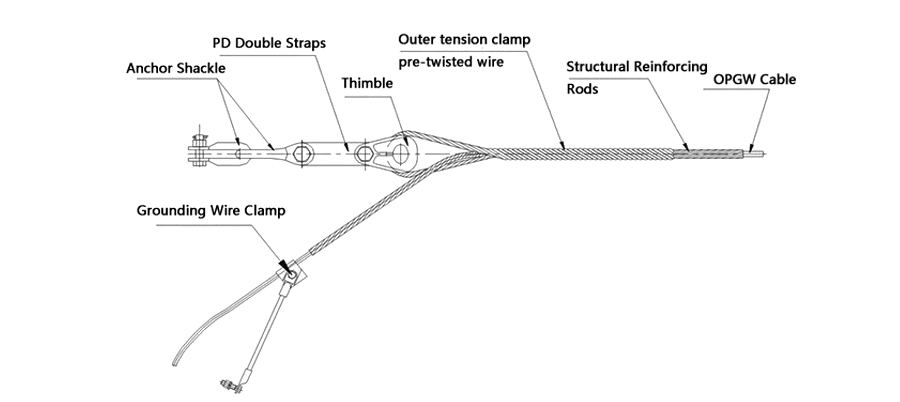

OPGW tension set is suitable for connection of optical cable on overhead OPGW transmission line erection to pole & tower with tension equipments in which the clamp protects & auxiliarily absorbs vibration to OPGW optical cable. The special design for clamp ensures the clamp itself will not generate any of concentrated stress harmful to OPGW optical cable while the holding strength of clamp keeps 95% scope not less than nominal tensile strength, which effectively guarantees the normal usage for optical cable.

Type	Applicable Diameter (mm)		Length of Structural Reinforcing Rods (mm)	Length of Outer Rods (mm)	Weight (kg)	Failing Load (kN)	Thimble
	Min	Max
ONY0780	7.2	7.8	1400	1000	1.10	70	TC07
ONY0880	7.9	8.8	1400	1000	1.15	70	TC07
ONY1010	8.9	10.1	1400	1000	1.28	70	TC07
ONY1140	10.2	11.4	1540	1120	1.70	90	TC10
ONY1280	11.5	12.8	1620	1200	2.41	112	TC12
ONY1410	12.9	14.1	1660	1240	2.55	112	TC12
ONY1550	15.5	15.5	1840	1360	2.89	112	TC12
ONY1730	15.6	17.3	2000	1480	3.61	112	TC12
ONY1920	17.4	19.2	2400	1800	4.68	112	TC12
ONY2110	19.3	21.1	2600	2000	5.14	112	TC12

1. The universal configuration of the connection fittings is U-7 and ZH-7. Please refer to the appendix for special connection fittings, and special instructions

2. All the products of the company are not listed above. If you have any requirements, please consult our technical department.

3.Pre-twisted wire material - aluminum coated steel wire
