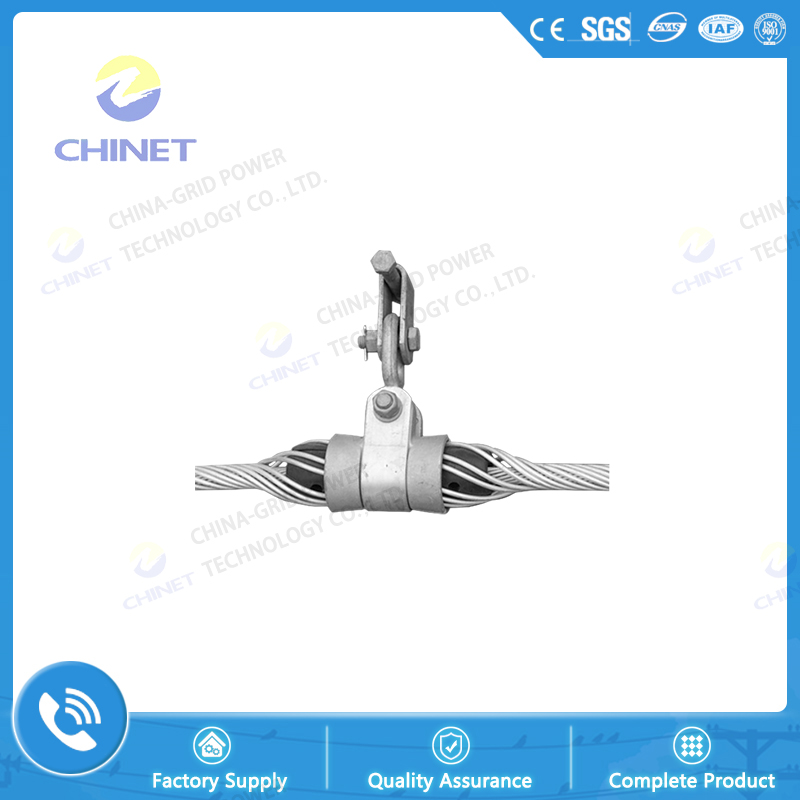

Preformed suspension set for OPGW cable is applicable for connection of OPGW optical cable suspended on overhead transmission line to pole or tower on which the clamp can both lessen static stress imposed on optical cable on the suspended point and enhance antivibration capacity for optical cable through restraining wind vibration to optical cable, protecting optical cable from influence of bending stress as well as from additional consumption.

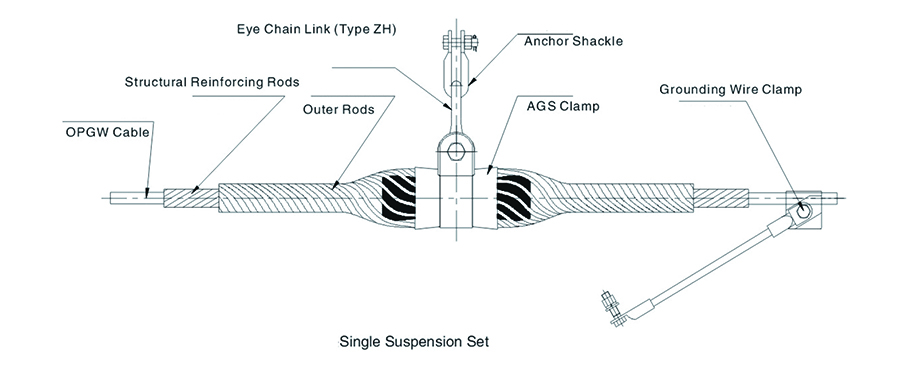

Model	Cable Dia.Range (mm)	Lengtd of endoteciums (mm)	Lengtd of Outer Rods (mm)	Weight (kg)	Color Code	Collocate
						AGS Clamp	Link Fittings
OXY 0800	7.4-8.0	1650	1100	1.27	Blue	Refeerence Table16.3	Refeerence Appendix 1
OXY 0880	8.1-8.8	1650	1100	1.37	Green
OXY 0960	8.9-9.6	1690	1140	1.49	Yellow
OXY 1010	9.7-10.1	1690	1140	1.49	Black
OXY 1060	10.2-10.6	1690	1140	1.56	White
OXY 1110	10.7-11.1	1720	1140	1.57	Red
OXY 1160	11.2-11.6	1760	1180	1.72	Blue
OXY 1170	11.7-11.7	1840	1240	1.88	Green
OXY 1200	11.8-12.0	1840	1240	1.88	Yellow
OXY 1270	12.1-12.7	1860	1240	1.89	Black
OXY 1290	12.8-12.9	1960	1240	2.12	White
OXY 1360	13.0-13.6	1960	1320	2.2	Red
OXY 1410	13.7-14.1	2000	1320	2.22	Blue
OXY 1430	14.2-14.3	2000	1320	2.22	Green
OXY 1450	14.4-14.5	2120	1440	2.61	Yellow
OXY 1510	14.6-15.1	2120	1440	2.62	Black
OXY 1580	15.2-15.8	2180	1440	2.65	White
OXY 1600	15.9-16.0	2400	1620	3.05	Red
OXY 1690	16.1-16.9	2400	1620	3.05	Blue
OXY 1730	17.0-17.3	2400	1620	3.2	Green
OXY 1800	17.4-18.0	2400	1620	3.3	Yellow
OXY 1840	18.1-18.4	2400	1620	3.3	Black
OXY 1880	18.5-18.8	2400	1620	3.55	White
OXY 1890	18.9-18.9	2400	1620	3.55	Red
OXY 1990	19.0-19.9	2400	1620	3.55	Blue

Model	Cable Dia.Range (mm)	Lengtd of endoteciums (mm)	Lengtd of Outer Rods (mm)	Weight (kg)	Color Code	Collocate
						AGS Clamp	Link Fittings
OXS 0800	7.4-8.0	2100	1600	1.77	Blue	Refeerence Table16.3	Refeerence Appendix 1
OXS 0880	8.1-8.8	2100	1600	1.91	Green
OXS 0960	8.9-9.6	2200	1600	2.03	Yellow
OXS 1010	9.7-10.1	2200	1600	2.03	Black
OXS 1060	10.2-10.6	2200	1600	2.12	White
OXS 1110	10.7-11.1	2200	1600	2.12	Red
OXS 1160	11.2-11.6	2200	1600	2.27	Blue
OXS 1170	11.7-11.7	2300	1700	2.49	Green
OXS 1200	11.8-12.0	2300	1700	2.49	Yellow
OXS 1270	12.1-12.7	2300	1700	2.49	Black
OXS 1290	12.8-12.9	2400	1700	2.78	White
OXS 1360	13.0-13.6	2400	1800	2.89	Red
OXS 1410	13.7-14.1	2400	1800	2.89	Blue
OXS 1430	14.2-14.3	2400	1800	2.89	Green
OXS 1450	14.4-14.5	2600	2000	3.46	Yellow
OXS 1510	14.6-15.1	2600	2000	3.46	Black
OXS 1580	15.2-15.8	2600	2000	3.46	White
OXS 1600	15.9-16.0	3100	2400	4.27	Red
OXS 1690	16.1-16.9	3100	2400	4.27	Blue
OXS 1730	17.0-17.3	3100	2400	4.49	Green
OXS 1800	17.4-18.0	3100	2400	4.62	Yellow
OXS 1840	18.1-18.4	3100	2400	4.62	Black
OXS 1880	18.5-18.8	3100	2400	4.97	White
OXS 1890	18.9-18.9	3100	2400	4.97	Red
OXS 1990	19.0-19.9	3100	2400	4.97	Blue

1. Single suspension clamp is suitable for the largest single-sided suspension 15°-18°,Double suspension clamp is suitable for Double suspension 30°-36°.

2. Connection fittings please refer to appendix matching and special instruction.

3. All products not listed above, if demand can contact our technical department.
