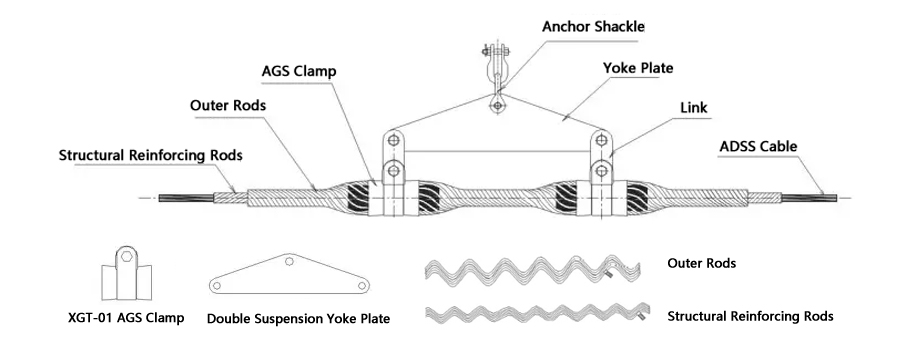

Double suspension set for ADSS, adopting double-layer design, is consisted of structural reinforcing rod/outer structural reinforcing rod (dead end) in proper size and length, intended to pass axial load and disperse radial stress, to reach its inner reinforcing units through plastic jacket, so as not to impair the plastic jacket or inner optical fiber that is fragile and vulnerable. The suspension clamp has excellent anti-fatigue, including outer structural reinforcing rod (dead end)/structural reinforcing rod, two sets of suspension clamp, and matching connection hardware.

Type	Applicable Optical Cable Diameter (mm)	Length of Outer Rods (mm)	Length of Structural Reinforcing Rods (mm)	Weight (kg)	Fittings Matched
					Yoke Plate	Link Fittings
AXS0960	9.0-9.6	1800	2200	2.36	HPL-460	U-7
AXS1010	9.7-10.1	1800	2200	2.45	HPL-460	U-7
AXS1060	10.2-10.6	1800	2200	2.61	HPL-460	U-7
AXS1110	10.7-11.1	1800	2200	2.61	HPL-460	U-7
AXS1160	11.2-11.6	1800	2200	2.7	HPL-460	U-7
AXS1170	11.7-11.7	1800	2200	2.7	HPL-460	U-7
AXS1200	11.8-12.0	1900	2400	2.88	HPL-560	U-7
AXS1270	12.1-12.7	1900	2400	2.88	HPL-560	U-7
AXS1290	12.8-12.9	1900	2400	3.15	HPL-560	U-7
AXS1360	13.0-13.6	1900	2400	3.15	HPL-560	U-7
AXS1410	13.7-14.1	2100	2700	3.5	HPL-560	U-7
AXS1430	14.2-14.3	2100	2700	3.81	HPL-560	U-7
AXS1510	14.6-15.1	2100	2700	3.81	HPL-560	U-7
AXS1580	15.2-15.8	2100	2700	3.81	HPL-560	U-7
AXS1600	15.9-16.0	2100	2700	3.92	HPL-560	U-7
AXS1690	16.1-16.9	2400	3000	4.43	HPL-660	U-7
AXS1730	17.0-17.3	2400	3000	4.78	HPL-660	U-7
AXS1800	17.4-18.0	2400	3000	4.78	HPL-660	U-7
AXS1880	18.1-18.8	2400	3000	4.78	HPL-660	U-7

1. The maximum single-sided overhang angle of a single suspension clamp is 15°-18°, and the maximum single-sided overhang angle of a double suspension clamp is 30°-36°.

2. The universal configuration of the connection fittings is U-7 and ZH-7. Please refer to the appendix for special connection fittings, and special instructions

3. All the products of the company are not listed above. If you have any requirements, please consult our technical department.
