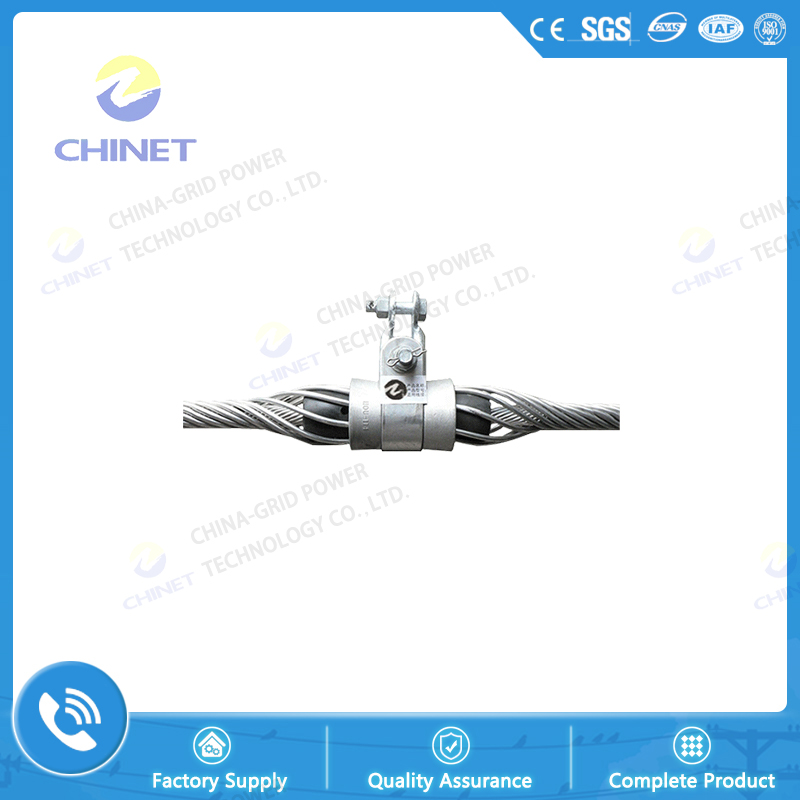

AXY Suspension clamp for ADSS Preformed Optical cable

Classification：Preformed Optical Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Description:

ADSS preformed suspension set is applicable for connection of ADSS optical cable suspended on overhead transmission line to pole or tower on which the clamp can both lessen static stress imposed on optical cable on the suspended point and enhance antivibration capacity for optical cable through restraining wind vibration to optical cable, protecting optical cable from influence of bending stress as well as from additional consumption.

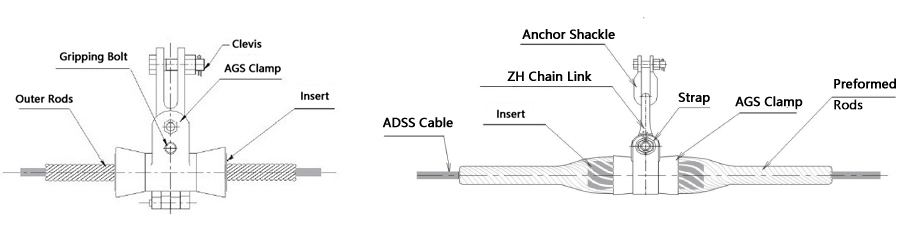

(for single gauge less than or equal to 400 meters, single layer pre-twisted wire design):

Model	Available Dia. Of Cable (mm)	Length of Rods (mm)	Weight (kg)	Universal Scheme			Available Span (m)
Model	Available Dia. Of Cable (mm)	Length of Rods (mm)	Weight (kg)	AGS Clamp	Link Fittings		Available Span (m)
AXYD 0960 300	9.0-9.6	1040	0.38	XGT-02	ZH-7	U-7	200/300
AXYD 1010 300	9.7-10.1	1040	0.40	XGT-02	ZH-7	U-7	200/300
AXYD 1060 300	10.2-10.6	1040	0.41	XGT-02	ZH-7	U-7	200/300
AXYD1110 300	10.7-11.1	1040	0.44	XGT-02	ZH-7	U-7	200/300
AXYD 1160 300	11.2-11.6	1060	0.45	XGT-02	ZH-7	U-7	200/300
AXYD 1200 300	11.7-12.0	1080	0.95	Referrence Table 16.3	ZH-7	U-7	200/300
AXYD 1270 300	12.1-12.7	1115	0.96		ZH-7	U-7	200/300
AXYD 1290 300	12.8-12.9	1145	1.08		ZH-7	U-7	200/300
AXYD 1360 300	13.0-13.6	1180	1.15		ZH-7	U-7	200/300
AXYD 1410 300	13.7-14.1	1210	1.15		ZH-7	U-7	200/300
AXYD 1430 300	14.2-14.3	1230	1.27		ZH-7	U-7	200/300
AXYD 1450 300	14.4-14.5	1260	1.32		ZH-7	U-7	200/300
AXYD 1510 300	14.6-15.1	1270	1.37		ZH-7	U-7	200/300
AXYD 1200 400	11.7-12.0	1200	1.07		ZH-7	U-7	300/400
AXYD 1270 400	12.1-12.7	1240	1.15		ZH-7	U-7	300/400
AXYD1290 400	12.8-12.9	1270	1.20		ZH-7	U-7	300/400
AXYD1360 400	13.0-13.6	1305	1.28		ZH-7	U-7	300/400
AXYD 1410 400	13.7-14.1	1345	1.29		ZH-7	U-7	300/400
AXYD 1430 400	14.2-14.3	1370	1.43		ZH-7	U-7	300/400
AXYD 1450 400	14.4-14.5	1380	1.46		ZH-7	U-7	300/400
AXYD 1510 400	14.6-15.1	1410	1.53		ZH-7	U-7	300/400

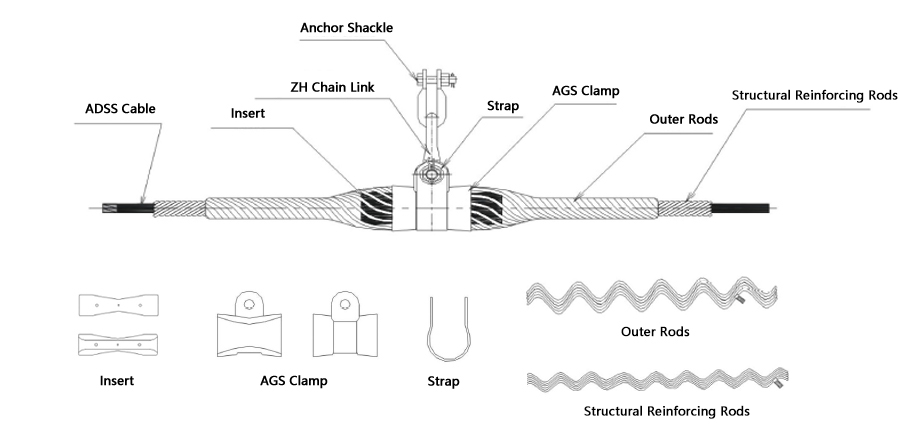

(The breaking strength of the clamp is ≥70kN, and the grip strength is not less than 10%-20% of the rated tensile strength of the cable)

Type	Applicable Optical Cable Diameter (mm)	Length of Outer Rods (mm)	Length of Structural Reinforcing Rods (mm)	Weight (kg)	Fittings Matched			Applicable Span (M)
Type	Applicable Optical Cable Diameter (mm)	Length of Outer Rods (mm)	Length of Structural Reinforcing Rods (mm)	Weight (kg)	AGS Clamp	Link Fittings		Applicable Span (M)
AXY0960300	9.0-9.6	1060	1500	1.45	XGT-02	ZH-7	U-7	200/300
AXY1010300	9.7-10.1	1060	1500	1.45	XGT-02	ZH-7	U-7	200/300
AXY1060300	10.2-10.6	1060	1500	1.51	XGT-02	ZH-7	U-7	200/300
AXY1110300	10.7-11.1	1060	1500	1.51	XGT-02	ZH-7	U-7	200/300
AXY1160300	11.2-11.6	1080	1540	1.63	XGT-02	ZH-7	U-7	200/300
AXY1170300	11.7-11.7	1080	1540	1.71	XGT-02	ZH-7	U-7	200/300
AXY1200300	11.8-12.0	1160	1680	1.86	XGT-02	ZH-7	U-7	200/300
AXY1270300	12.1-12.7	1160	1680	1.86	XGT-02	ZH-7	U-7	200/300
AXY1290300	12.8-12.9	1160	1680	2.04	XGT-02	ZH-7	U-7	200/300
AXY1360300	13.0-13.6	1250	1800	2.21	XGT-02	ZH-7	U-7	200/300
AXY1410300	13.7-14.1	1250	1800	2.21	XGT-02	ZH-7	U-7	200/300
AXY1430300	14.2-14.3	1250	1800	2.21	XGT-02	ZH-7	U-7	200/300
AXY1450300	14.4-14.5	1250	1800	2.32	XGT-02	ZH-7	U-7	200/300
AXY1510300	14.6-15.1	1250	1800	2.40	XGT-02	ZH-7	U-7	200/300
AXY0960400	9.0-9.6	1100	1600	1.53	XGT-02	ZH-7	U-7	300/400
AXY1010400	9.7-10.1	1100	1600	1.59	XGT-02	ZH-7	U-7	300/400
AXY1060400	10.2-10.6	1100	1600	1.69	XGT-02	ZH-7	U-7	300/400
AXY1110400	10.7-11.1	1100	1600	1.69	XGT-02	ZH-7	U-7	300/400
AXY1160400	11.2-11.6	1100	1600	1.76	XGT-02	ZH-7	U-7	300/400
AXY1170400	11.7-11.7	1100	1600	1.76	XGT-02	ZH-7	U-7	300/400
AXY1200400	11.8-12.0	1200	1720	1.9	XGT-02	ZH-7	U-7	300/400
AXY1270400	12.1-12.7	1200	1720	1.91	XGT-02	ZH-7	U-7	300/400
AXY1290400	12.8-12.9	1200	1720	2.08	XGT-02	ZH-7	U-7	300/400
AXY1360400	13.0-13.6	1300	1840	2.25	XGT-02	ZH-7	U-7	300/400
AXY1410400	13.7-14.1	1300	1840	2.25	XGT-02	ZH-7	U-7	300/400
AXY1430400	14.2-14.3	1300	1840	2.44	XGT-02	ZH-7	U-7	300/400
AXY1450400	14.4-14.5	1300	1840	2.44	XGT-02	ZH-7	U-7	300/400
AXY1510400	14.6-15.1	1300	1840	2.44	XGT-02	ZH-7	U-7	300/400
AXY1270500	12.1-12.7	1260	1760	2.0	XGT-02	ZH-7	U-7	400/500
AXY1290500	12.8-12.9	1260	1760	2.22	XGT-02	ZH-7	U-7	400/500
AXY1360500	13.0-13.6	1300	1860	2.32	XGT-02	ZH-7	U-7	400/500
AXY1410500	13.7-14.1	1300	1860	2.32	XGT-02	ZH-7	U-7	400/500
AXY1430500	14.2-14.3	1300	1860	2.32	XGT-02	ZH-7	U-7	400/500
AXY1450500	14.4-14.5	1360	1940	2.54	XGT-02	ZH-7	U-7	400/500
AXY1510500	14.6-15.1	1360	1940	2.64	XGT-02	ZH-7	U-7	400/500
AXY1580500	15.2-15.8	1360	1940	2.64	XGT-02	ZH-7	U-7	400/500
AXY1600500	15.9-16.0	1420	2040	2.87	XGT-02	ZH-7	U-7	400/500
AXY1690500	16.1-16.9	1420	2040	2.87	XGT-02	ZH-7	U-7	400/500
AXY1270600	12.1-12.7	1300	1800	2.03	XGT-02	ZH-7	U-7	500/600
AXY1290600	12.8-12.9	1300	1800	2.23	XGT-02	ZH-7	U-7	500/600
AXY1360600	13.0-13.6	1360	1920	2.34	XGT-02	ZH-7	U-7	500/600
AXY1410600	13.7-14.1	1360	1920	2.35	XGT-02	ZH-7	U-7	500/600
AXY1430600	14.2-14.3	1360	1920	2.55	XGT-02	ZH-7	U-7	500/600
AXY1450600	14.4-14.5	1400	2000	2.63	XGT-02	ZH-7	U-7	500/600
AXY1510600	14.6-15.1	1400	2000	2.63	XGT-02	ZH-7	U-7	500/600
AXY1580600	15.2-15.8	1400	2000	2.63	XGT-02	ZH-7	U-7	500/600
AXY1600600	15.9-16.0	1520	2120	2.92	XGT-02	ZH-7	U-7	500/600
AXY1960600	16.1-16.9	1520	2120	2.92	XGT-02	ZH-7	U-7	500/600
AXY1430800	14.2-14.3	1460	2060	2.73	XGT-02	ZH-7	U-7	700/800
AXY1450800	14.4-14.5	1460	2120	2.77	XGT-02	ZH-7	U-7	700/800
AXY1510800	14.6-15.1	1460	2120	2.77	XGT-02	ZH-7	U-7	700/800
AXY1580800	15.2-15.8	1480	2120	2.79	XGT-02	ZH-7	U-7	700/800
AXY1600800	15.9-16.0	1580	2200	3.04	XGT-02	ZH-7	U-7	700/800
AXY1690800	16.1-16.9	1580	2200	3.04	XGT-02	ZH-7	U-7	700/800
AXY1730800	17.0-17.3	1580	2200	3.28	XGT-02	ZH-7	U-7	700/800
AXY1800800	17.4-18.0	1580	2200	3.28	XGT-02	ZH-7	U-7	700/800
AXY15801000	15.2-15.8	1560	2340	3	XGT-02	ZH-7	U-7	900/1000
AXY16001000	15.9-16.0	1680	2590	3.37	XGT-02	ZH-7	U-7	900/1000
AXY16901000	16.1-16.9	1680	2590	3.37	XGT-02	ZH-7	U-7	900/1000
AXY17301000	17.0-17.3	1680	2590	3.63	XGT-02	ZH-7	U-7	900/1000
AXY18001000	17.4-18.0	1680	2590	3.63	XGT-02	ZH-7	U-7	900/1000
AXY18801000	18.1-18.8	1680	2590	3.63	XGT-02	ZH-7	U-7	900/1000

Notes:

1. The maximum single-sided overhang angle of a single suspension clamp is 15°-18°, and the maximum single-sided overhang angle of a double suspension clamp is 30°-36°.

2. The universal configuration of the connection fittings is U-7 and ZH-7. Please refer to the appendix for special connection fittings, and special instructions

3. All the products of the company are not listed above. If you have any requirements, please consult our technical department.
