SYG-Q compression terminal clamps are adopted copper & aluminum welding through brazing combination. They are suitable for permanent connection. On production, the terminal plates of clamps are not being drilled, and therefore they needs to be drilled in accordance with the factual terminal outlet plate dimensions for electric device when installation. In addition, the conductors that terminal clamps match are all routine conductors, available for other conductors with normal conductor diameter parameters subjected to terminal clamps.

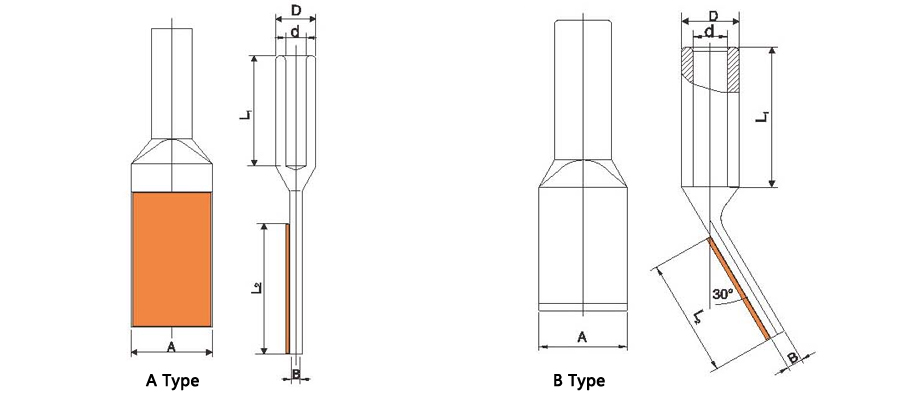

Type	Applicable Conductor	Dimension (mm)
		d	D	L1	L2	A	B
SYG-35/6Q	LGJ-35/6	9.7	18	60	60	30	8
SYG-50/8Q	LGJ-50/8	11.0	18	60	60	30	8
SYG-70/10Q	LGJ-70/10	13.0	22	70	60	40	8
SYG-95/15~20Q	LGJ-95/15~20	15.5	26	80	80	40	8
SYG-120/7Q	LGJ-120/7	16.0	26	80	80	50	10
SYG-120/20~25Q	LGJ-120/20~25	17.2	26	80	80	50	10
SYG-150/8~20Q	LGJ-150/8~20	18.2	30	90	80	50	10
SYG-150/25~35Q	LGJ-150/25~35	19.0	30	90	80	50	10
SYG-185/10~30Q	LGJ-185/10~30	20.5	32	90	80	50	10
SYG-185/45Q	LGJ-185/45	21.5	32	90	80	50	10
SYG-240/30~40Q	LGJ-240/3O~40	23.0	36	100	80	50	12
SYG-240/55Q	LG-240/55	24.0	36	100	80	50	12
SYG-300/15-20Q	LGJ-300/15~20	25.0	40	110	100	63	13
SYG-300/25-40Q	LGJ-300/25~40	25.5	40	110	100	63	13
SYG-300/50Q	LGJ-300/50	26.0	40	110	100	63	13
SYG-300/70Q	LGJ-300/70	27.0	42	110	100	63	13
SYG-400/2O~25Q	LGJ400/20~25	28.5	45	120	100	63	16
SYG400/50Q	LG-400/50	29.5	45	120	100	63	16
SYG400/65Q	LG-400/65	29.5	48	120	100	63	16
SYG400/95Q	LG-400/95	31.0	48	120	100	63	16
SYG-500/35~45Q	LGJ-500/35~45	31.5	52	130	80	80	16
SYG-500/65Q	LGJ-500/65	32.5	52	130	80	80	16
SYG-630/45Q	LGJ-630/45	35.5	60	150	100	100	20
SYG-630/55~80Q	LGJ-630/55~80	36.5	60	150	100	100	20
SYG-800/55~100Q	LGJ-800/55~100	40.5	65	170	125	125	22
SYG-120/7~20Q-80	LGJ-120/7~20	17.2	26	80	80	80	9
SYG-150/8~20Q-80	LGJ-150/8~20	18.2	30	90	80	80	9
SYG-185/10~35Q-80	LGJ-185/10~35	20.5	32	90	80	80	10
SYG-240/30~40Q-80	LGJ-240/30~40	23.0	36	100	80	80	10
SYG-300/15~40Q-80	LGJ-300/15~40	25.5	40	110	90	80	12
SYG-400/20~65Q-80	LGJ-400/20~65	29.5	45	120	90	80	12
SYG-120/7~20Q-100	LGJ-120/7~20	17.2	26	80	100	100	8
SYG-150/8~20Q-100	LGJ-150/8~20	18.2	30	90	100	100	8
SYG-185/10~35Q-100	LGJ-185/10~35	20.5	32	90	100	100	10
SYG~240/30~40Q-100	LGJ-240/30~40	23.0	36	100	100	100	10
SYG-300/15~40Q-100	LGJ-300/15~40	25.5	40	110	100	100	12
SYG-400/20~65Q-100	LGJ-400/20~65	29.5	45	120	100	100	12
SYG-500/35~65Q-100	LGJ-500/35~65	32.5	52	130	100	100	14

1. The additional letter A or the default indicates level (0 °), B indicates 30 °, and Q indicates brazing type;

2. Brazing of copper and aluminum by brazing process;

3. If the size of the terminal board required by the user is different from the table, please indicate otherwise when ordering.
