SY-K conductor compression terminal clamp is adopted aluminum welding (or blazing) as production technics. It is suitable for permanent connection. On production, the terminal plate of clamp is not being drilled, and therefore it needs to be drilled in accordance with the factual terminal outlet plate dimensions for electric device when installation. In addition, the conductor that terminal clamp matches is all routine conductor, available for other conductors with normal conductor diameter parameters subjected to terminal clamps.

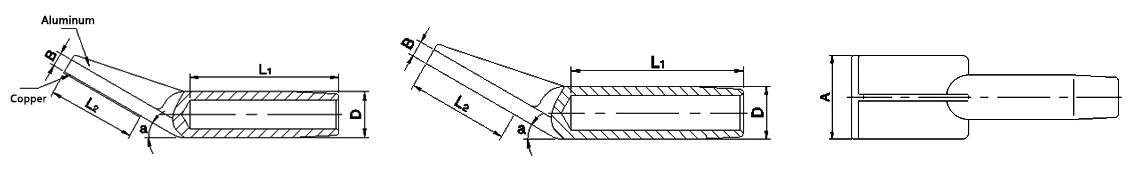

Type	Applicable Conductor	Dimension (mm)					Remark
		D	L1	A	L2	B
SY-600KA(120*125)	LGKK-600	76	180	120	125	20	With core rod
SY-600KB(120*125)
SY-600KC(120*125)
SY-600KD(120*125)
SY-600KA(150*155)	LGKK-600	76	180	150	155	20	With core rod
SY-600KB(150*155)
SY-600KC(150*155)
SY-600KD(150*155)
SY-900KA(120*125)	LGKK-900	74	180	120	125	20	With core rod
SY-900KB(120*125)
SY-900KC(120*125)
SY-900KD(120*125)
SY-900KA(150*155)	LGKK-900	74	180	150	155	20	With core rod
SY-900KB(150*155)
SY-900KC(150*155)
SY-900KD(150*155)
SY-1400KA(120*125)	LGKK-1400	83	2401	120	125	24	With core rod
SY-1400KB(120*125)
SY-1400KC(120*125)
SY-1400KD(120*125)
SY-1400KA(150*155)	LGKK -1400	83	240	150	155	24	With core rod
SY-1400KB(150*155)
SY-1400KC(150*155)
SY-1400KD(150*155)
SY-1400A(120*125)	LGJQT-1400	76	180	120	125	20
SY-1400B(120*125)
SY-1400C(120*125)
SY-1400D(120*125)
SY-1400A(150*155)	LGJQT-1400	76	180	150	155	20
SY-1400B(150*155)
SY-1400C(150*155)
SY-1400D(150*155)
Y-1440NA(120*125)	NAHLGJ-1440	80	240	120	125	24
Y-1440NA(120*125)
Y-1440NA(120*125)
Y-1440NA(120*125)
Y-1440NA(150*155)	NAHLGJ-1440	80	240	150	155	24
Y-1440NA(150*155)
Y-1440NA(150*155)
Y-1440NA(150*155)

1. The additional letter A in the model indicates 0 °, B indicates 30 °, C indicates 45 °, and D indicates 90 °.

2. If there are changes in dimensions A and L2, please specify A × L2 when ordering, such as: SY-600KC (A × L2) mandrel is made of hot-dip galvanized steel.

3. SY type is aluminum wire clamp, SYG type is copper-aluminum transition wire clamp, and its model name is SYG-xxxx / xxxxQ (A × L2), its size is exactly the same as SY
