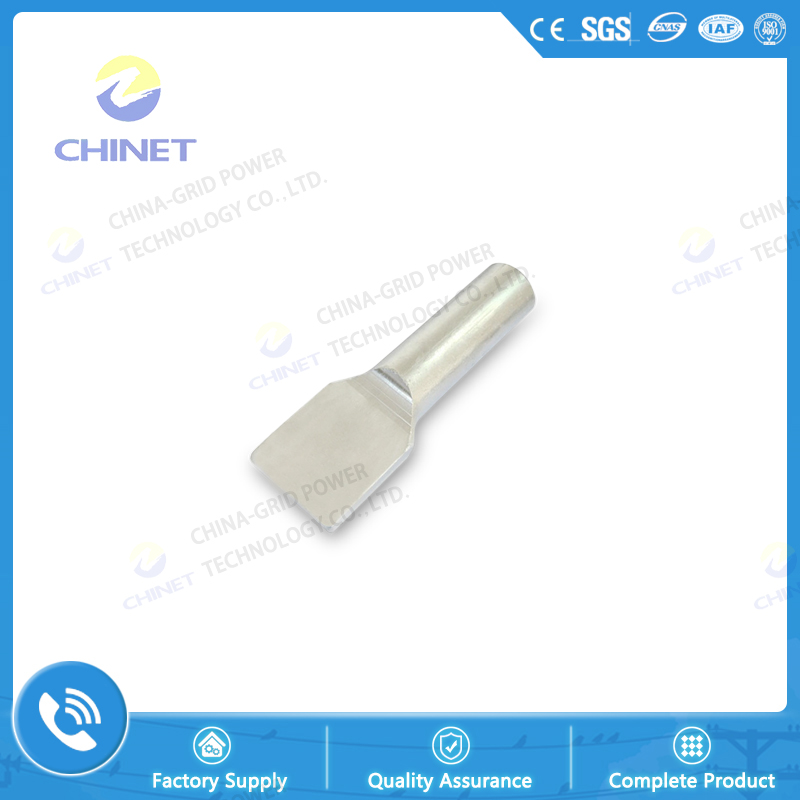

SY Compression Terminal Clamps are applicable to outlet terminal connection between down lead of bus bar and electric device (like transformer, circuit breaker, disconnecting switch and so on); based on different raw materials, compression terminlal clamps are made of copper & aluminum.

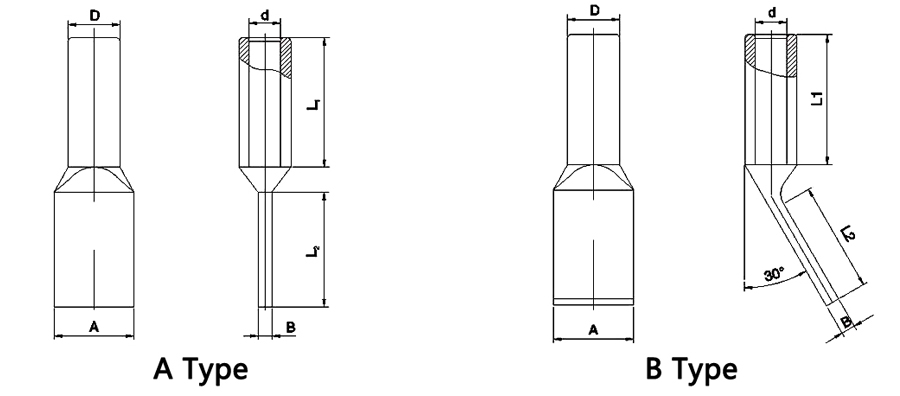

Type	Suitable conductor	Main Dimension (mm)
		d	D	L1	L2	A	B
SY-35/6	LGJ-35/6	9.7	18	60	70	30	8
SY-50/8	LGJ-50/8	11.0	18	60	70	30	8
SY-70/10	LGJ-70/10	13.0	22	70	70	40	8
SY-95/15~20	LGJ-95/15~20	15.5	26	80	90	40	8
SY-120/7	LGJ-120/7	16.0	26	80	90	50	10
SY-120/20~25	LGJ-120/20~25	17.2	26	80	90	50	10
SY-150/8~20	LGJ-150/8~20	18.2	30	90	90	50	10
SY-150/25~35	LGJ-150/25~35	19.0	30	90	90	50	10
SY-185/10~30	LGJ-185/10~30	20.5	32	90	90	50	10
SY-185/45	LGJ-185/45	21.5	32	90	90	50	10
SY-240/30~40	LGJ-240/30~40	23.0	36	100	90	50	12
SY-240/55	LGJ-240/55	24.0	36	100	90	50	12
SY-300/15~20	LGJ-300/15~20	25.0	40	110	110	63	13
SY-300/25~40	LGJ-300/25~40	25.5	40	110	110	63	13
SY-300/50	LGJ-300/50	26.0	40	110	110	63	13
SY-300/70	LGJ-300/70	27.0	42	110	110	63	13
SY-400/20~25	LGJ-400/20~25	28.5	45	120	110	63	16
SY-400/50	LGJ-400/50	29.5	45	120	110	63	16
SY-400/65	LGJ-400/65	29.5	48	120	110	63	16
SY-400/95	LGJ-400/95	31.0	48	120	110	63	16
SY-500/35~45	LGJ-500/35~45	31.5	52	130	90	80	16
SY-500/65	LGJ-500/65	32.5	52	130	90	80	16
SY-630/45	LGJ-630/45	35.5	60	150	110	100	20
SY-630/55~80	LGJ-630/55~80	36.5	60	150	110	100	20
SY-800/55~100	LGJ-800/55~100	40.5	65	170	130	125	22
SY-120/7~20-80	LGJ-120/7~20	17.2	26	80	90	80	9
SY-150/8~20-80	LGJ-150/8~20	18.2	30	90	90	80	9
SY-185/10~35-80	LGJ-185/10~35	20.5	32	90	90	80	10
SY-240/30~40-80	LGJ-240/30~40	23.0	36	100	90	80	10
SY-300/15~40-80	LGJ-300/15~40	25.5	40	110	100	80	12
SY-400/20~65-80	LGJ-400/20~65	29.2	45	120	100	80	12
SY-120/7~20-100	LGJ-120/7~20	17.2	26	80	110	100	8
SY-150/8~20-100	LGJ-150/8~20	18.2	30	90	110	100	8
SY-185/10~35-100	LGJ-185/10~35	20.5	32	90	115	100	10
SY-240/30~40-100	LGJ-240/30~40	23.0	36	100	115	100	10
SY-300/15~40-100	LGJ-300/15~40	25.5	40	110	115	100	12
SY-400/20~65-100	LGJ-400/20~65	29.5	45	120	115	100	12
SY-500/35~65-100	LGJ-500/35~65	32.5	52	130	115	100	14

1. Not all models be listed

2. Made of aluminum, additional letters A or default indicates 0, B indicates 30. Additional figures-80,-100 indicates the width requirement of terminal plate
