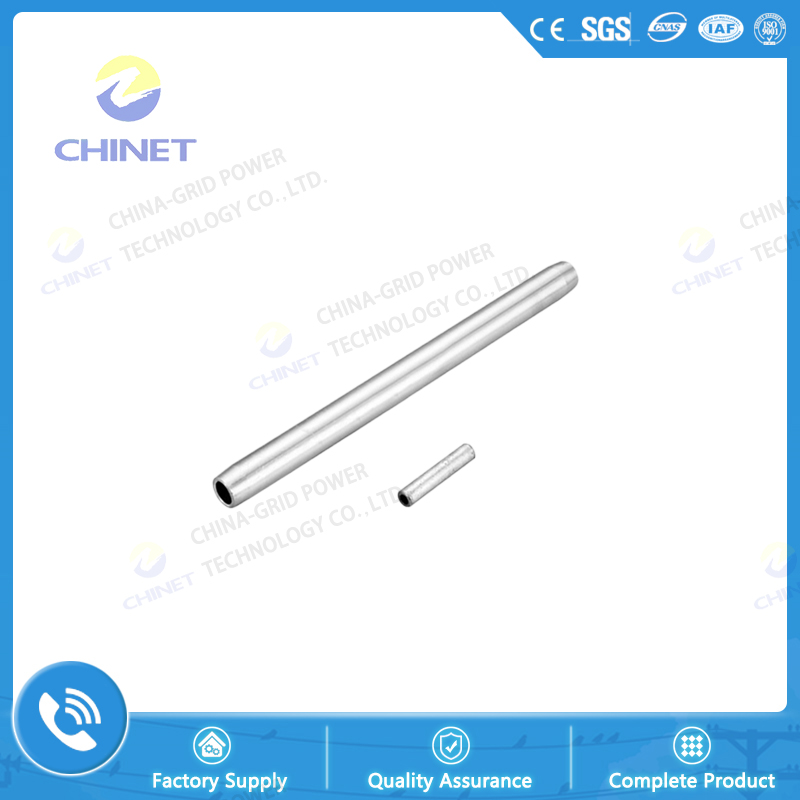

JYD-N Splicing Sleeve Connector for Heat-Resistant Wire Hydraulic Overlap Joint

Classification：Splicing Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Product Description

Description:

JYD-N Hydraulic Compression Type Splicing Sleeve for Aluminum-Clad ACSR Conductor is suitable for linking & repairing aerial insulation conduct in aerial electric power line.

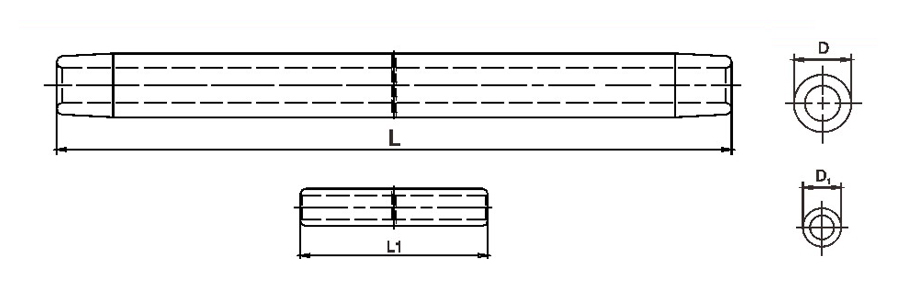

Type	Suitable Conductor	Dimension (mm)						Weight (kg)
Type	Suitable Conductor	_D	_d	_L	_D1	_D1	_L1	Weight (kg)
JYD-185/25N	NRLH⁵⁸₆₀GJ-185/25	36	20.5	500	18	10.5	90	1.05
JYD-185/30N	NRLH⁵⁸₆₀GJ-185/30	36	20.5	500	18	11.6	100	1.05
JYD-185/45N	NRLH⁵⁸₆₀GJ-185/45	40	21.5	480	20	14.0	110	1.30
JYD-240/30N	NRLH⁵⁸₆₀GJ-240/30	45	23.0	530	20	12.0	100	1.84
JYD-240/40N	NRLH⁵⁸₆₀GJ-240/40	45	23.0	530	20	13.3	100	1.82
JYD-240/55N	NRLH⁵⁸₆₀GJ-240/55	48	24.0	550	22	16.0	120	2.18
JYD-300/15N	NRLH⁵⁸₆₀GJ-300/15	50	25.0	580	18	8.4	70	2.41
JYD-300/20N	NRLH⁵⁸₆₀GJ-300/20	50	25.0	580	18	9.8	80	2.42
JYD-300/25N	NRLH⁵⁸₆₀GJ-300/25	50	25.5	580	20	11.2	90	2.43
JYD-300/40N	NRLH⁵⁸₆₀GJ-300/40	50	25.5	580	20	13.3	100	2.41
JYD-300/50N	NRLH⁵⁸₆₀GJ-300/50	50	26.0	580	22	15.0	120	2.37
JYD-300/70N	NRLH⁵⁸₆₀GJ-300/70	52	27.0	600	24	18.0	130	2.71
JYD-400/20N	NRLH⁵⁸₆₀GJ-400/20	55	28.5	610	18	9.8	80	2.97
JYD-400/25N	NRLH⁵⁸₆₀GJ-400/25				20	11.2	90	3.01
JYD-400/35N	NRLH⁵⁸₆₀GJ-400/35				22	13.0	100	3.06
JYD-400/50N	NRLH⁵⁸₆₀GJ-400/50	55	29.5	610	24	15.4	120	3.04
JYD-400/65N	NRLH⁵⁸₆₀GJ-400/65	58	29.5	660	26	17.2	130	3.79
JYD-400/95N	NRLH⁵⁸₆₀GJ-400/95	58	31.0	660	28	21.0	170	3.72
JYD-500/35N	NRLH⁵⁸₆₀GJ-500/35	65	31.5	730	22	13.0	100	5.20
JYD-500/45N	NRLH⁵⁸₆₀GJ-500/45		31.5		24	14.0	110	5.26
JYD-500/65N	NRLH⁵⁸₆₀GJ-500/65		32.5		26	17.2	130	5.21
The outer sleeve is made of aluminum, the inner sleeve is made of hot-dip galvanized steel.
