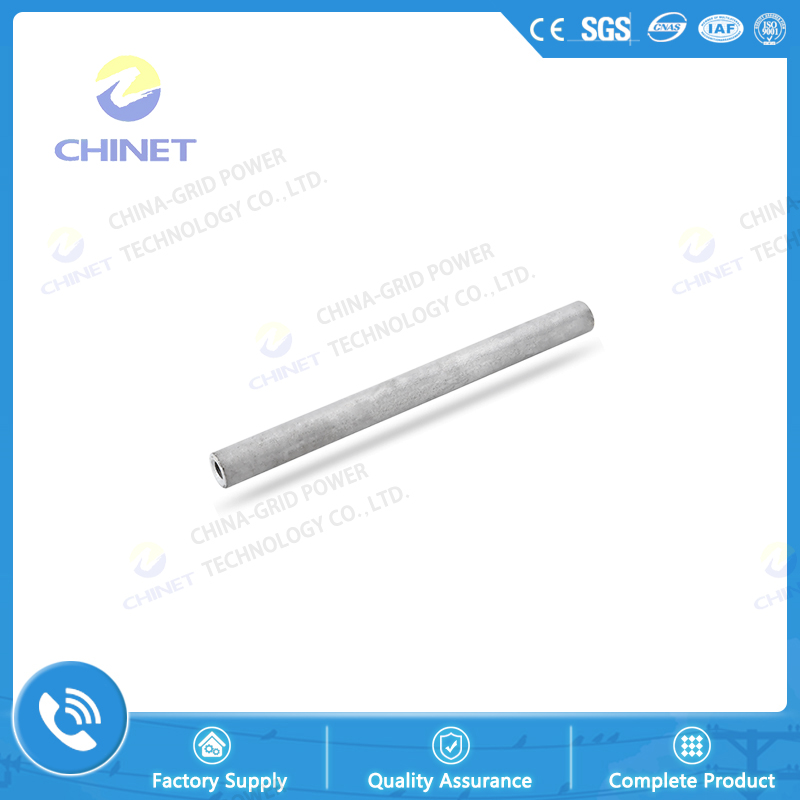

Splicing Sleeve for Aluminum Conductor is suitable for linking & repairing aerial insulation conduct in aerial electric power line.

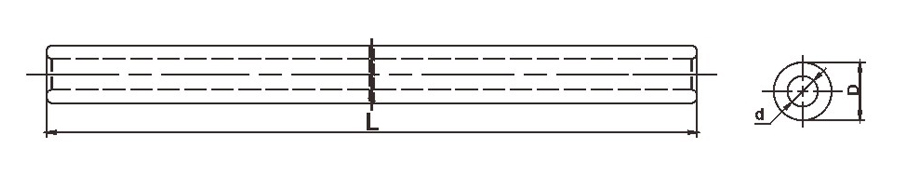

| Type | Suitable steel wire | Dimension(mm) | Slip Strength\ (≥kN) | Weight (kg) | ||
| D | d | L | ||||
| JY-25G | 1×7-6.6 | 14 | 7.2 | 190 | 33 | 0.17 |
| JY-35G | 1×7-7.8 | 16 | 8.4 | 220 | 45 | 0.25 |
| JY-50G | 1×7-9.0 | 18 | 9.6 | 240 | 60 | 0.34 |
| JY-55G | 1×7-9.6 | 22 | 10.3 | 240 | 70 | 0.56 |
| JY-70G | 1×19-11.0 | 22 | 11.7 | 290 | 80 | 0.62 |
| JY-80G | 1×19-11.5 | 24 | 12.2 | 290 | 100 | 0.76 |
| JY-100G | 1×19-13.0 | 26 | 13.7 | 340 | 120 | 1.05 |
|
||||||
