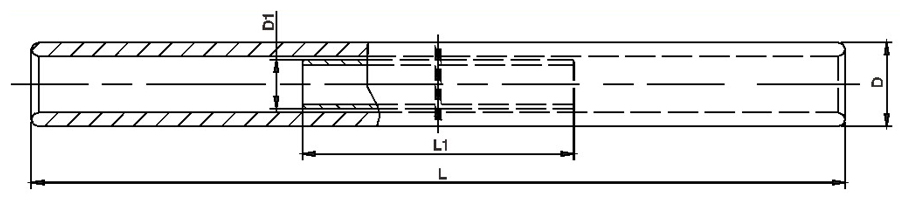

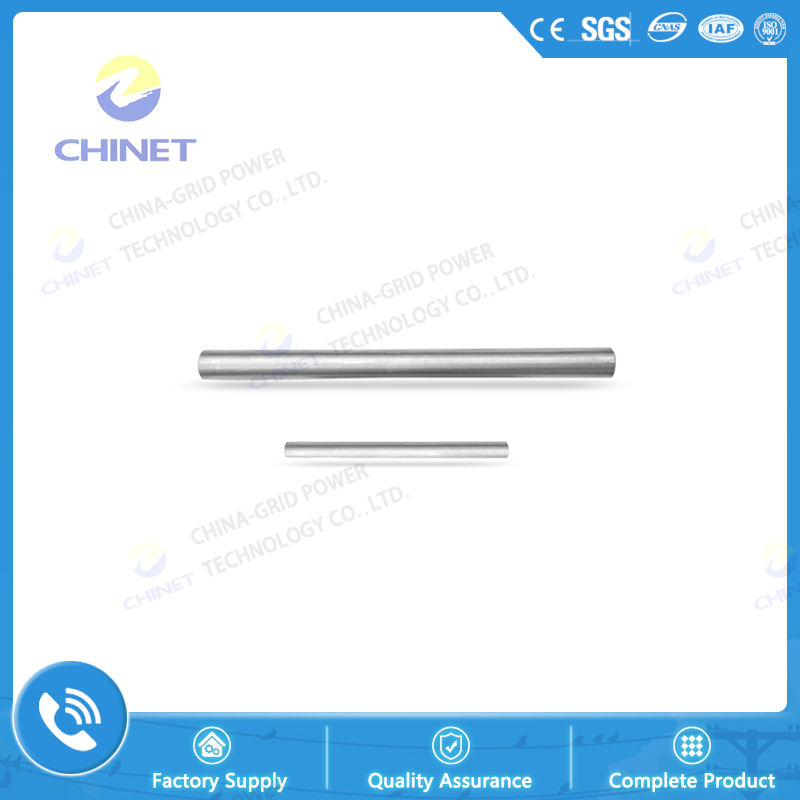

JY-BG Splicing Sleeve for Aluminum-Clad ACSR Conductor is suitable for linking & repairing aerial insulation conduct in aerial electric power line.

Type	Suitable Coductor	Dimension (mm)				Slip Strength (≥kN)	Weight (kg)
Type	Suitable Coductor	D	D₁	L	L₁	Slip Strength (≥kN)	Weight (kg)
JYD-50/30BG	JL/LB20A-50/30	32	18	425	125	41	0.79
JYD-70/40BG	JL/LB20A-70/40	34	20	330	110	56	0.90
JYD-95/55BG	JL/LB20A-95/55	36	26	400	120	75	1.07
JYD-120/70BG	JL/LB20A-120/70	36	24	400	120	94	1.32
The inner sleeve is made of hot- dip galvanized steel, the outer sleeve and lining sleeves are made of aluminum.

Type	Suitable Coductor	Dimension (mm)				Slip Strength (≥kN)	Weight (kg)
Type	Suitable Coductor	D	D₁	L	L₁	Slip Strength (≥kN)	Weight (kg)
JYD-150/25BG	JL/LB20A-150/25	34	18	380	90	51.5	0.74
JYD-150/35BG	JL/LB20A-150/35	36	22	400	110	61.8	0.81
JYD-185/25BG	JL/LB20A-185/25	34	18	440	90	56.5	0.75
JYD-185/30BG	JL/LB20A-185/30	34	18	490	130	61.0	0.93
JYD-185/45BG	JL/LB20A-185/45	36	20	500	140	76.2	1.06
JYD-240/30BG	JL/LB20A-240/30	38	20	490	110	72.0	1.13
JYD-240/40BG	JL/LB20A-240/40	38	22	500	110	79.0	1.18
JYD-240/55BG	JL/LB20A-240/55	38	22	520	150	97.0	1.25
JYD-300/15BG	JL/LB20A-300/15	42	18	520	80	65.0	1.35
JYD-300/20BG	JL/LB20A-300/20	42	20	520	90	72.0	1.40
JYD-300/25BG	JL/LB20A-300/25	42	20	520	90	79.5	1.41
JYD-300/40BG	JL/LB20A-300/40	42	22	540	120	88.0	1.49
JYD-300/50BG	JL/LB20A-300/50	42	24	550	130	98.5	1.60
JYD-300/70BG	JL/LB20A-300/70	45	24	600	160	122.0	2.20
JYD-400/20BG	JL/LB20A-400/20	48	20	550	90	84.0	2.00
JYD-400/25BG	JL/LB20A-400/25	48	20	550	100	91.0	2.05
JYD-400/35BG	JL/LB20A-400/35	48	22	560	110	99.0	2.15
JYD-400/50BG	JL/LB20A-400/50	48	24	600	130	117.0	2.20
JYD-400/65BG	JL/LB20A-400/65	48	26	690	150	128.5	2.60
JYD-500/45BG	JL/LB20A-500/45	52	24	650	130	122.0	2.80
JYD-500/65BG	JL/LB20A-500/65	52	26	760	160	146.0	3.40
JYD-630/45BG	JL/LB20A-630/45	60	24	750	130	141.0	4.10
JYD-630/55BG	JL/LB20A-630/55	60	26	800	160	156.0	4.32
The inner sleeve is made of hot- dip galvanized steel, the outer sleeve and lining sleeves are made of aluminum.
