JYD Splicing Sleeve For ACSR Conductor (Hydraulic Compression Type)

Classification:Splicing Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Product Description
Description:

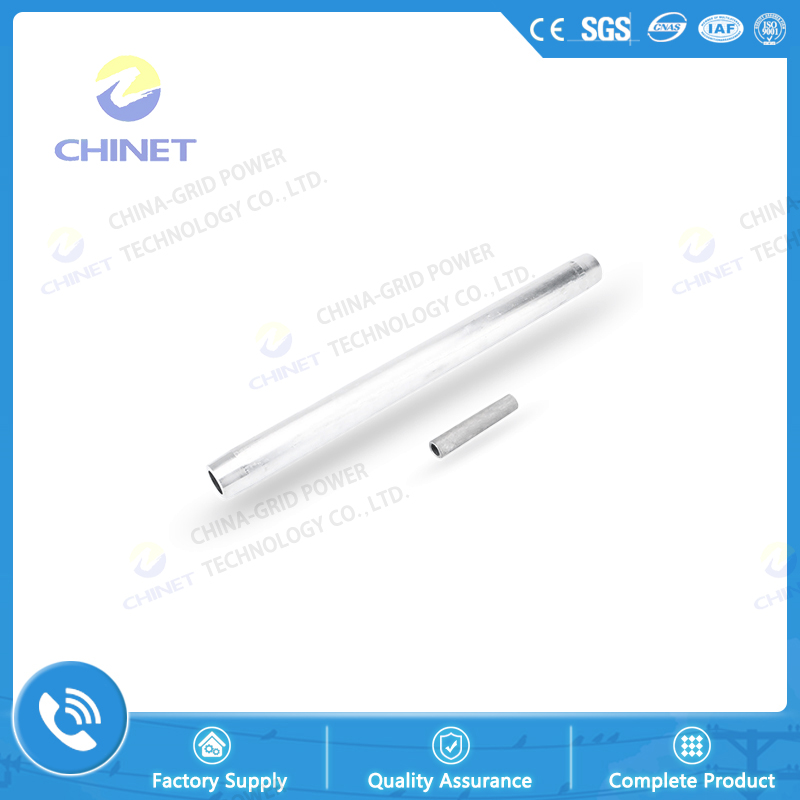

JYD Type Splicing Sleeve for ACSR Conductor is suitable for linking & repairing aerial insulation conduct in aerial electric power line.

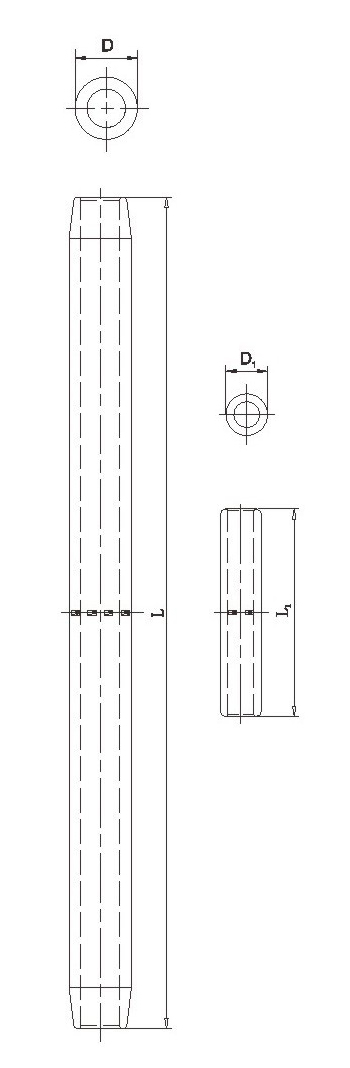

Type Applicable Conductor Main Dimensions (mm) Grip
D D1 L L1
JYD-95/15 LGJ-95/15 26 14 360 70 33.5
JYD-95/20 LGJ-95/20 26 14 360 80 35.5
JYD-120/20 LGJ-120/20 30 16 380 80 39.0
JYD-120/25 LGJ-120/25 30 16 380 90 45.5
JYD-150/20 LGJ-150/20 30 16 400 80 44.0
JYD-150/25 LGJ-150/25 30 18 400 90 51.5
JYD-150/35 LGJ-150/35 30 18 400 100 62.0
JYD-185/25 LGJ-185/25 32 18 420 90 56.5
JYD-185/30 LGJ-185/30 32 18 420 100 61.5
JYD-185/45 LGJ-185/45 34 20 440 110 76.5
JYD-240/30 LGJ-240/30 36 20 470 100 72.0
JYD-240/40 LGJ-240/40 36 20 470 100 79.0
JYD-240/55 LGJ-240/55 36 22 490 120 97.0
JYD-300/15 LGJ-300/15 40 18 450 70 65.0
JYD-300/20 LGJ-300/20 40 18 450 80 72.0
JYD-300/25 LGJ-300/25 40 20 490 90 79.5
JYD-300/40 LGJ-300/40 40 20 490 100 88.0
JYD-300/50 LGJ-300/50 40 22 510 120 98.5
JYD-300/70 LGJ-300/70 42 24 560 130 122.0
JYD-400/20 LGJ-400/20 45 18 540 80 84.5
JYD-400/25 LGJ-400/25 45 20 540 90 91.0
JYD-400/35 LGJ-400/35 45 22 540 100 99.0
JYD-400/50 LGJ-400/50 45 24 570 120 117.0
JYD-400/65 LGJ-400/65 48 26 580 130 128.5
JYD-400/95 LGJ-400/95 48 28 600 170 163.0
JYD-500/35 LGJ-500/35 52 22 610 100 114.0
JYD-500/45 LGJ-500/45 52 24 610 110 122.0
JYD-500/65 LGJ-500/65 52 26 640 130 146.5
JYD-630/45 LGJ-630/45 60 24 650 110 141.5
JYD-630/55 LGJ-630/55 60 26 680 120 156.5
JYD-800/55 LGJ-800/55 65 26 760 120 183.0
JYD-800/70 LGJ-800/70 65 26 760 130 197.0

The outer sleeve is made of aluminum , the inner sleeve is made of hot- dip galvanized steel.
