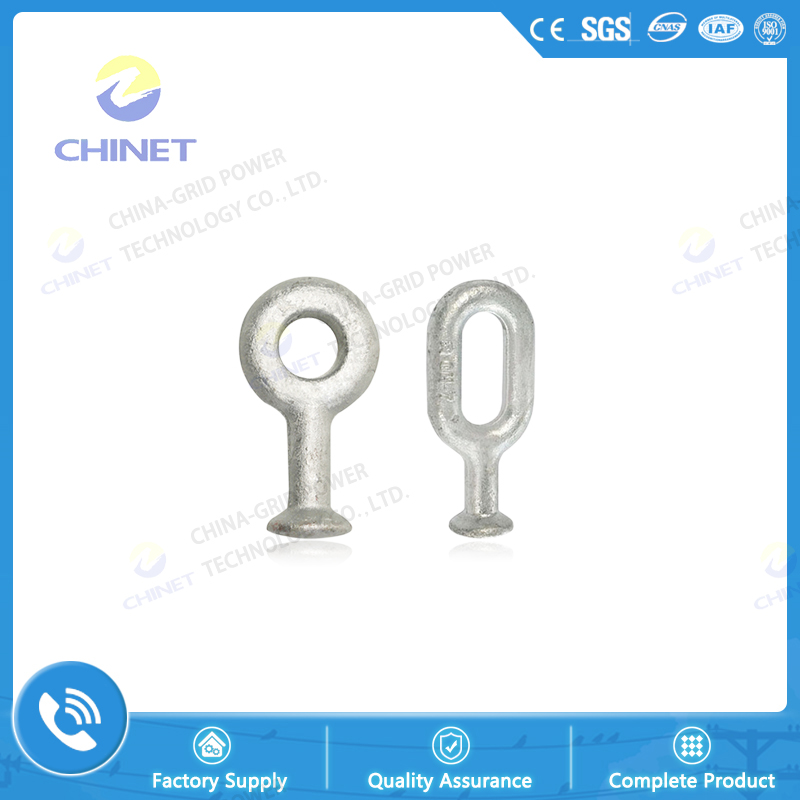

QP, QH & Q Ball Head Shackles

Classification:Connecting Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:

QP, QH & Q type ball head shackle are used for connections with the socket on steel nut subjected to the top section of ball & socket-shaped suspension insulator, avoiding the stress concentration for point contact generated by the connective point. According to different usage conditions, ball head shackles are composed of ring interface type & bolt flat interface.

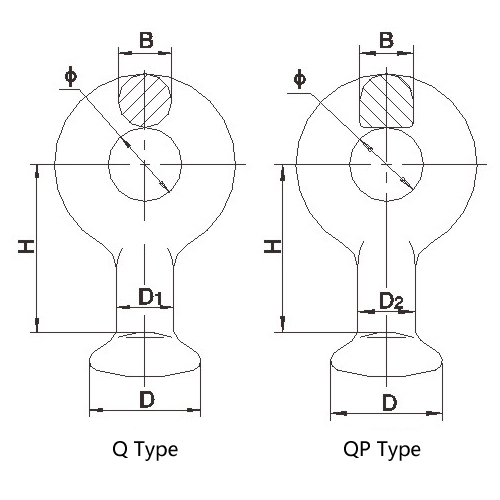

State Network Model 85 Standard Type Size of Coupling Main Dimension
(mm)
Nominal Failure Load
(kN)
B D1 D Φ H
Q-7 16 16 17 33.3 22 50 70
QP-0750 QP-7 16 16 17 33.3 20 50 70
QP-1050 QP-10 16 16 17 33.3 20 50 100
QP-1260 QP-12 16 16 17 33.3 24 60 120
QP-1660 QP-16 20 18 21 41.0 26 60 160
QP-20 24 24 25 49.0 30 80 200
QP-21D 20 21 21 41.0 29 70 210
QP-2180 20 20 21 41.0 26 80 210
QP-2580 24 24 25 49.0 30 80 250
QP-30 24 28 25 49.0 39 80 300
QP-3280 24 28 25 49.0 33 80 320

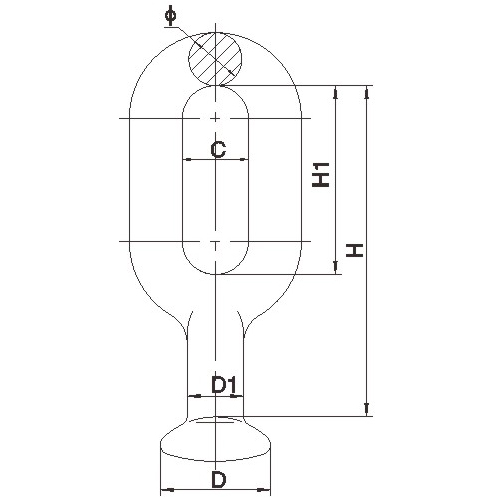

State Network Model 85 Standard Type Size of Coupling Main Dimension
(mm)
Nominal Failure Load
(kN)
Φ D1 D C H1 H
QH-07100 QH-7 16 16 17 33.3 24 57 100 70
QH-10 16 18 17 33.3 22 60 110 100
QH-12 16 19 17 33.3 22 63 120 120
QH-16155 QH-16S 20 20 21 41.0 26 100 155 160
QH-21140 20 20 21 41.0 26 83 140 210
QH-21155 QH-21S 20 20 21 41.0 26 100 155 210
QH-32175 QH-32S 24 28 25 49.0 32 110 175 320

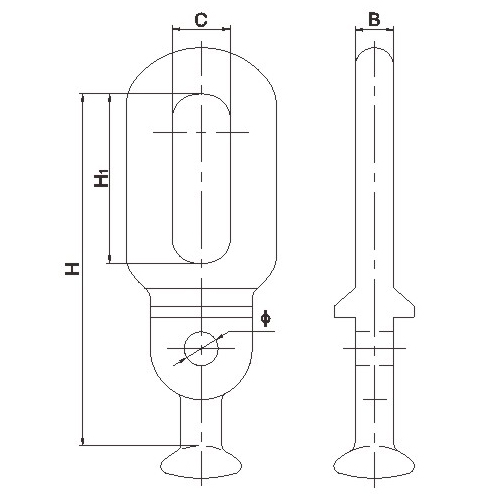

Type Size of Coupling Main Dimension
(mm)
Nominal Failure Load
(kN)
Weight
(kg)
B C Φ H1 H
Q-7M 16 16 18 14 60 130 70 1.0
Q-12M 16 18 24 14 70 145 120 1.3

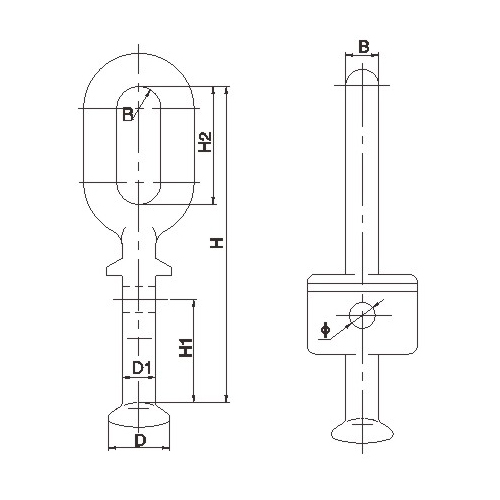

Type Main Dimension
(mm)
Nominal Failure Load
(kN)
Weight
(kg)
B D1 D R Φ H1 H2 H
Q-7N 16 16 33.3 12.5 14 42 50 142 70 1.2
Q-12N 18 18 33.3 12 14 56 64 173 120 1.5
Q-16N 20 20 41.0 15 14 42 75 168 160 1.5

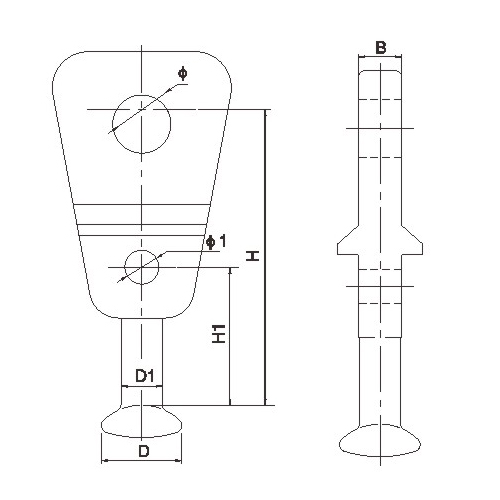

Type Connection Mark Main Dimension
(mm)
Nominal Failure Load
(kN)
Weight
(kg)
B D1 D Φ1 Φ H1 H
Q-7P 16 16 17 33.3 14 20 40 100 70 1.2
Q-12P 16 18 17 33.3 14 24 40 100 120 1.5
State Network Model 85 Standard Model Connection Mark Main Dimension
(mm)
Nominal Failure Load
(kN)
C D1 D M H
QS-0775 Q-7U 16 20 17 33.3 16 75 70
QS-1075 Q-10U 16 20 17 33.3 18 75 100
QS-1275 Q-12U 16 20 17 33.3 22 75 120
QS-1680 Q-16U 20 22 21 41.0 24 80 160
Q-21U 20 30 21 41.0 27 102 210
Q-30U 24 38 25 49.0 36 110 300
QS-32120 24 32 25 49.0 30 120 320
Type Connection Mark Main Dimension
(mm)
Nominal Failure Load
(kN)
H H1 B Φ D1 D
QPJ-07100 16 100 50 16 18 17 33.3 70
QPJ-10110 16 110 50 16 20 17 33.3 100
QPJ-12110 16 110 50 16 24 17 33.3 120
QPJ-16120 20 120 55 18 26 21 41 160
QPJ-21120 20 120 60 20 26 21 41 210
