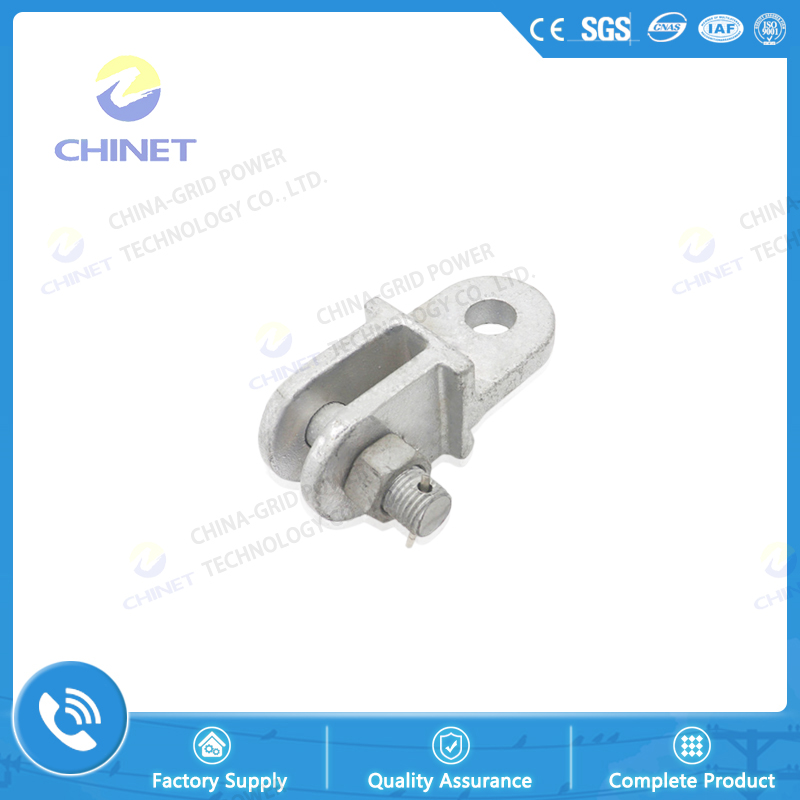

Z & ZBD clevises are one kind of turning-connected fittings that can change the connected direction. As the two connected ends of rod form right angle, they are of flexible alternation & strong adaptability. They are made up of medium-thick steel plate combined with the technics of punching & bending. Based on their structure character, Z & ZS type clevises can be processed by steel plate while those items with considerable failure load shall be produced by ductile iron or casting steel.

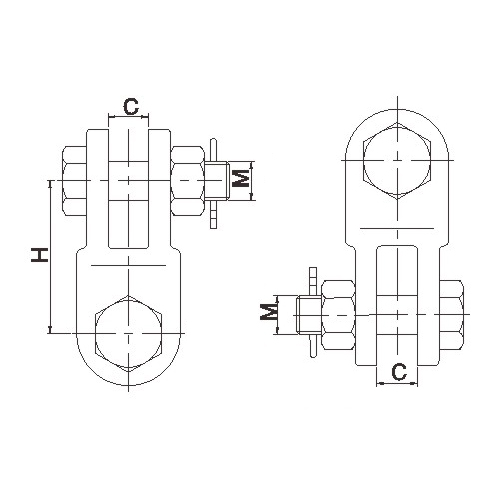

State Network Model		Main Dimension (mm)			Nominal Failure Load (kN)	Weight (kg)
		C	M	H
	Z1-25	34	30	110	250	3.8
	Z-32S	32	30	136	320	9.2
	Z-42S	38	36	150	420	8.4
	Z-50S	38	36	150	500	14.2
	Z-64S	42	42	180	640	19.4
	Z-84S	44	48	180	840	19.8
	Z-130S	52	56	280	1300	39.1

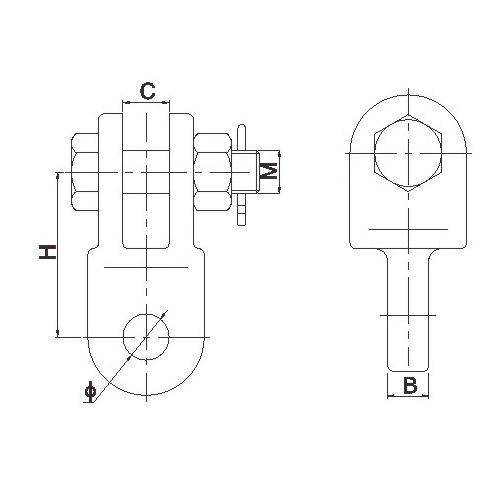

State Network Model		Main Dimension (mm)					Nominal Failure Load (kN)
		C	B	M	Φ	H
	ZBD-07/10-80	20	16	18	18	80	70
	ZBD-07/12-80	20	16	22	18	80	70
	ZBD-07/21-90	24	16	24	18	90	70
	ZBD-07-80	20	16	16	18	80	70
	ZBD-10/12-80	20	16	22	20	80	100
	ZBD-10/16-90	22	16	24	20	90	100
	ZBD-10/21-90	24	16	24	20	90	100
	ZBD-10-80	20	16	18	20	80	100
	ZBD-12/25-110	28	16	27	24	110	120
	ZBD-12-90	20	16	22	24	90	120
	ZBD-16/21-90	24	18	24	26	90	160
	ZBD-16/32-120	32	18	30	26	120	160
	ZBD-16-90	22	18	24	26	90	160
	ZBD-21-90	24	20	24	26	90	210
	ZBD-25-110	28	24	27	30	110	250
	ZBD-32-120	32	28	30	33	120	320
