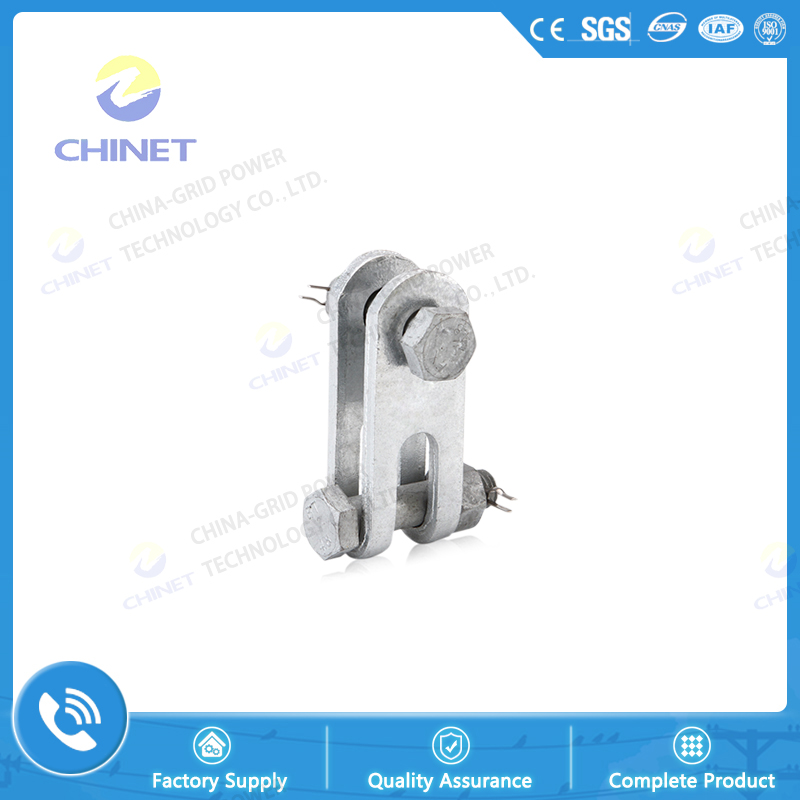

Z & ZS Durable Right Angle Clevises are one kind of turning-connected fittings that can change the connected direction. As the two connected ends of rod form right angle, they are of flexible alternation & strong adaptability. They are made up of medium-thick steel plate combined with the technics of punching & bending. Based on their structure character, Z & ZS Durable Right Angle Clevises can be processed by steel plate while those items with considerable failure load shall be produced by ductile iron or casting steel.

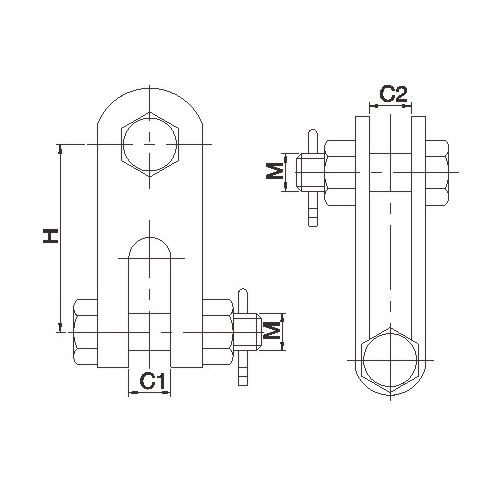

State Network Model		85 Standard Type	Main Dimension (mm)				Nominal Failure Load (kN)
			C1	C2	M	H
	Z-0780	Z-7	18	18	16	80	70
	Z-1080	Z-10	20	20	18	80	100
	Z-12100	Z-12	20	24	22	100	120
	Z-16100	Z-16	22	26	24	100	160
	Z-21100		24	26	24	100	210
		Z-21	30	30	27	120	210
	Z-25110		28	30	27	110	250
		Z-25	34	34	30	120	250

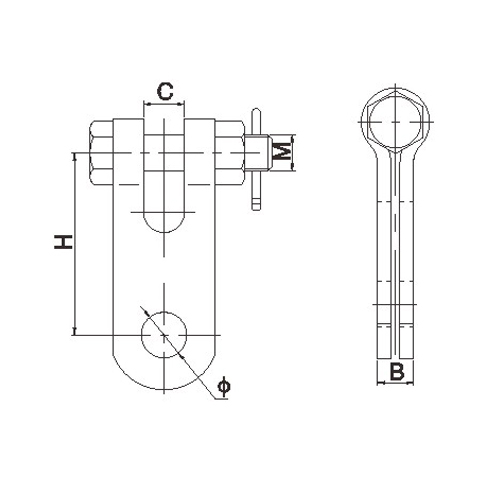

State Network Model		85 Standard Type	Main Dimension (mm)					Nominal Failure Load (kN)
			C	B	M	Φ	H
	ZS-0780	ZS-7	18	16	16	20	80	70
	ZS-1080	ZS-10	20	18	18	20	80	100
	ZS-1280	ZS-12	22	22	22	24	80	120
	ZS-16100		24	18	24	26	100	160
		ZS-16	26	24	24	26	90	160
		ZS-25	33	30	30	33	120	250
		ZS-30	38	34	36	39	150	300
