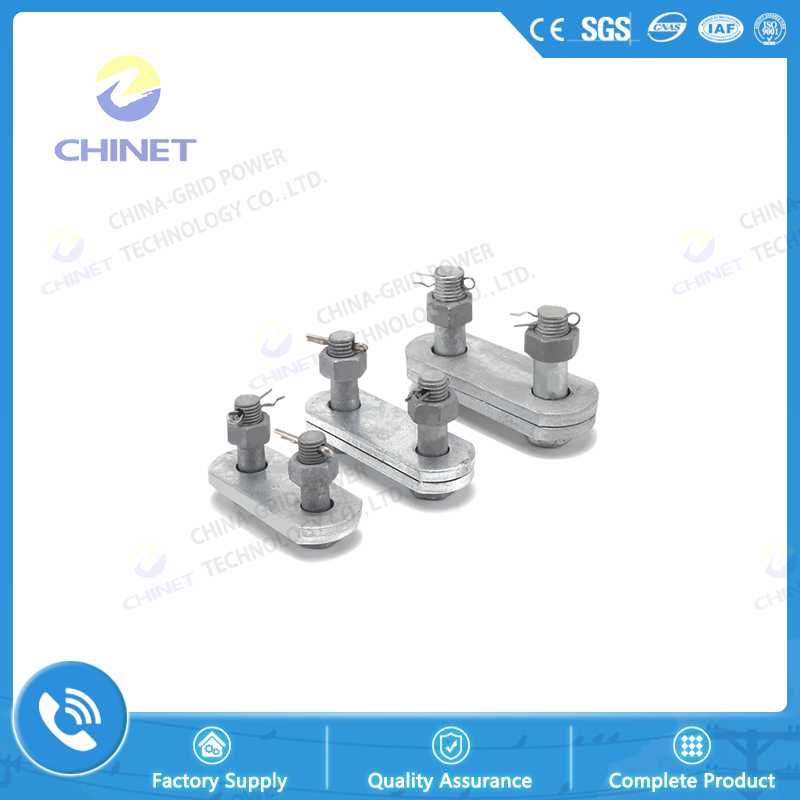

P & PS type parallel clevises connective can change the length of assembly parts through connecting single-layer clevis with single-layer clevis or connecting single-layer clevis with double-layer clevis. It is made up of medium-thick steel plate combined with the technics of punching & shearing. As one of connecting fittings, its function is same as PD type clevis, Z type clevis, ZBD type clevis, U type clevis, adjusting plate, yoke plate and so on. In modern grid erection, a great number of clevises need to be used.

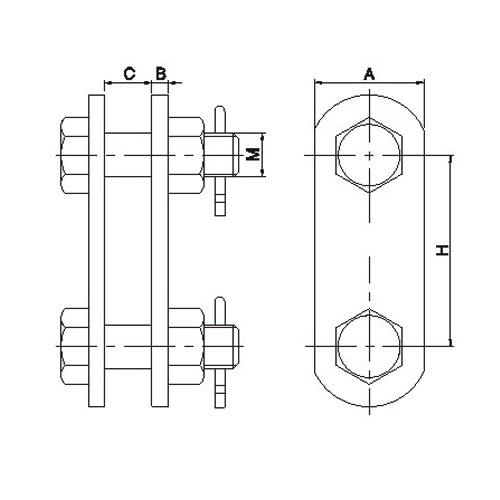

State Network Model		85 Standard Type	Main Dimension (mm)					Nominal Failure Load (kN)
			A	B	C	M	H
	P-0770	P-7	40	6	20	16	70	70
	P-1080	P-10	45	8	20	18	80	100
	P-1290	P-12	50	10	20	22	90	120
	P-16100	P-16	60	8	22	24	100	160
		P-21	70	14	30	27	120	210
	P-21100		60	10	24	24	100	210
		P-25	78	16	34	30	120	250
	P-25120		70	12	28	27	120	250
		P-30	80	16	38	36	120	300
	P-32120		80	14	32	30	120	320

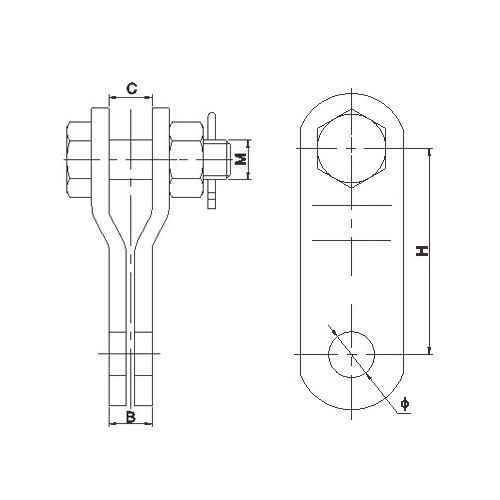

State Network Model		85 Standard Type	Dimension (mm)					Nominal Failure Load (kN)	Weight (kg)
			C	B	M	H	Φ
	PS-0790	PS-7	18	16	16	90	20	70	0.60
	PS-10100	PS-10	20	18	18	100	20	100	0.80
		PS-12	20	20	22	95	24	120	1.50
		PS-16	26	24	24	155	26	160	2.70
		PS-30	38	34	36	140	39	300	5.30
We can customize various specification products based on different requirements. Meanwhile we can finish delivery of items in a shortest time.
