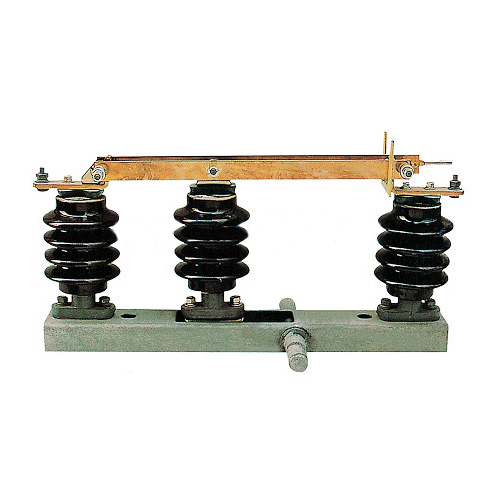

GW1-12G(D) series outdoor high-voltage isolating switch, which is a high-voltage switchgear with single-pole structure. It can be used for circuit and circuit in the outdoor 12KV line network with voltage and no load.

Switch with grounding knife, with CS port type manual mechanism, can prevent the grounding wire and the grounding wire from being "closed" Waiting for the wrong operation, the operator does not have to hang the ground wire.

The anti-fouling outdoor high-voltage isolating switch can meet the requirements of users in severely polluted areas, and can effectively solve the problem of pollution flashing that occurs in the operation of the isolating switch.

project	unit	parameter		Remarks
Rated voltage	kV	12
Rated current	A	630	1250
Rated peak withstand current	kA	50	100
Rated short-time withstand current	kA/4s	20	40	Grounding knife is the same as the main blade
