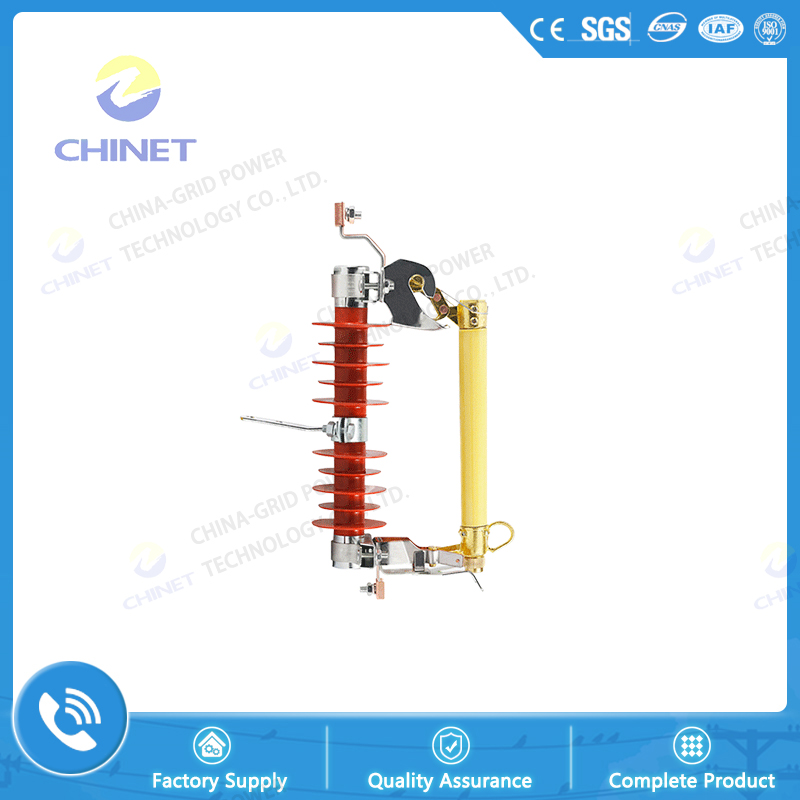

The composite pillar drop fuse uses a silicone rubber epoxy fiberglass rod instead of a porcelain pillar, which has better mechanical strength and stain resistance, is free of cleaning and maintenance, and can reduce the occurrence of pollution flash. Light weight, not easy to break, easy to transport and install, in recent years in the promotion and use of the majority of users.

1. Applicable to the ambient temperature upper limit of 40 ° C, the lower limit of -30 ° C.

2. The altitude does not exceed 1000m, and the wind speed is not more than 35m/s

3. The fuse is not suitable for the following places

   a. Locations with fuel or explosion hazards

   b.Locations with severe vibration or impact

   c.There are different electrochemical gases and severe air pollution, smoke areas

Type	Rated voltage (kV)	Rated current (A)	Breaking current (kA)	impulse voltage (BIL)	Power frequency withstand voltage (kV)	Creepage distance (mm)	Weight (kg)	Outline size (cm)
HRW10-10F/100	12	100	6.3	110	42	372	4	62x47x16
HRW10-10F/200	12	200	12.5	110	42	372	5	62x47x16

Type	Rated voltage (kV)	Rated current (A)	Breaking current (kA)	impulse voltage (BIL)	Power frequency withstand voltage (kV)	Creepage distance (mm)	Weight (kg)	Outline size (cm)
HRW11-10/100	12	100	6.3	110	42	372	4	62x34x12
HRW11-10/200	12	200	12.5	110	42	372	5	62x34x12
