Classification：Arrester Series
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
| MOA Type | Sys R.v | MOA R.V | MCOV | DC voltage (U1mA) | 8/20μs Lightning Current Impulse | 2ms Rectangular current impulse | 4/10μs High current Impulse |
|
| kV(r.m.s) | ≮kV | ≯kV | A | kV | ||||
| HY1.5W-0.28/1.3 | 0.22 | 0.28 | 0.24 | 0.6 | 1.3 | 75 | 25 | |

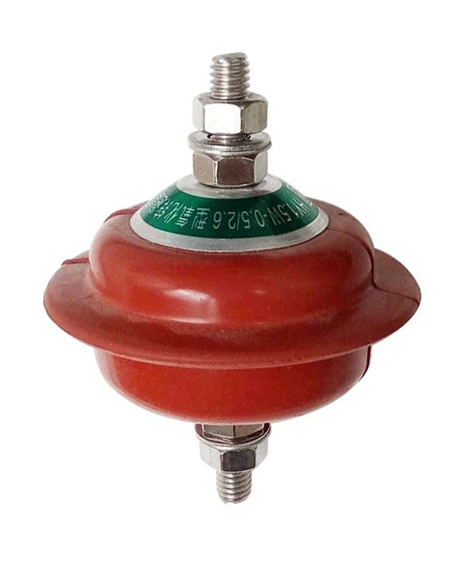

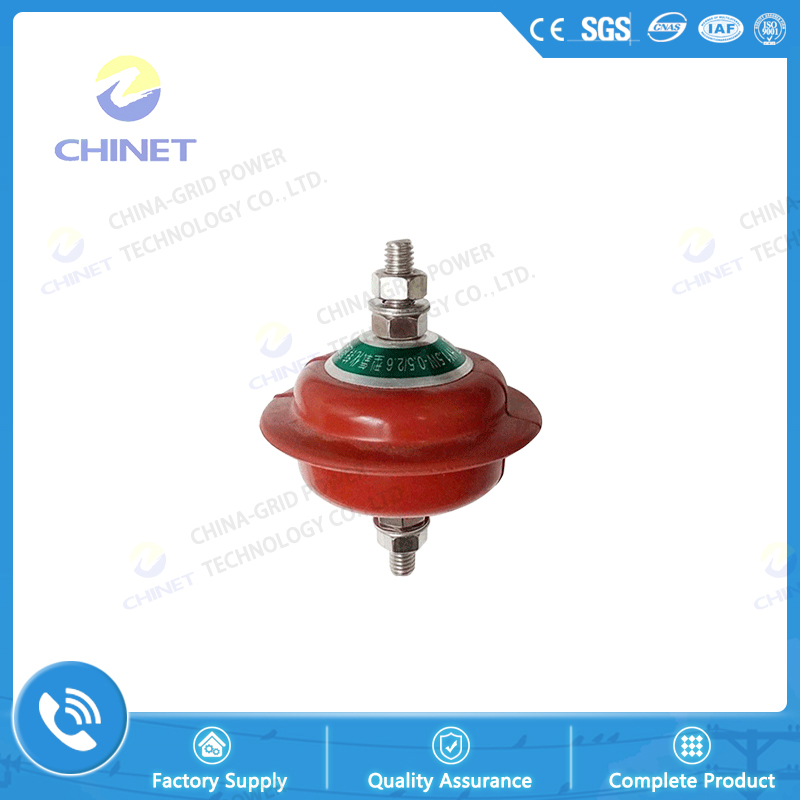

| HY1.5W-0.5/2.6 | 0.38 | 0.5 | 0.42 | 1.2 | 2.6 | 75 | 25 | |
|
Distribution equipment for protection of the corresponding voltage class from atmospheric and operating overvoltages |
||||||||
| MOA Type | Sys R.v | MOA R.V | MCOV |
DC voltage (U1mA) |
1/10μs Steep Current Impulse | 8/20μs Lightning Current Impulse | 30/60μs Switching Current Impulse | 2ms Rectangular Current impulse | 4/10μs High Current impulse | IMG NO. |
| kV(r.m.s) | ≮kV | ≯kV | A | kA | ||||||

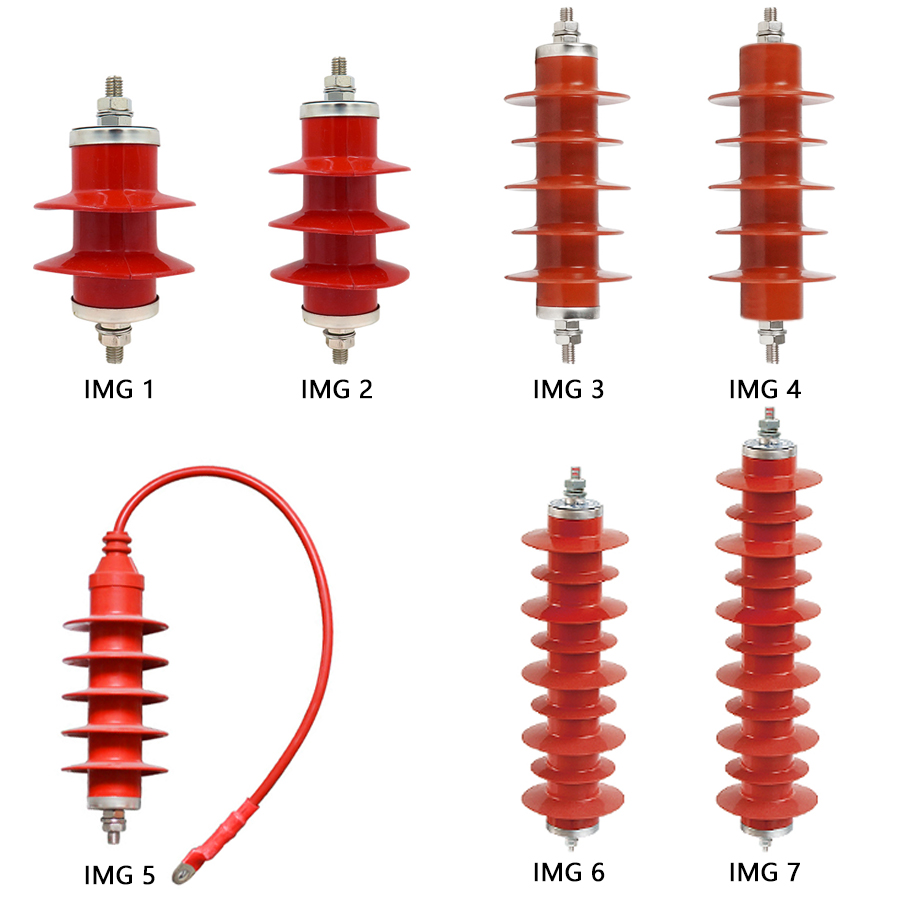

| HY5WS-5/15 | 3 | 5 | 4.0 | 8.0 | 17.3 | 15 | 12.8 | 100 | 65 | IMG 1 |
| HY5WS-10/30 | 6 | 10 | 8.0 | 15.0 | 34.5 | 30 | 25.5 | 100 | 65 | IMG 2 |
| HY5WS-17/50 | 10 | 17 | 13.6 | 25.0 | 57.5 | 50.0 | 38.5 | 100 | 65 | IMG 3 |
| HY5WS-17/50 | 17 | 13.6 | 25.0 | 57.5 | 50.0 | 38.5 | 100 | 65 | IMG 4 | |
| HY5WS-17/50J | 17 | 13.6 | 25.0 | 57.5 | 50.0 | 38.5 | 100 | 65 | IMG 5 | |
| HY5WS-17/46.5 | 17 | 13.6 | 25.0 | 57.5 | 46.5 | 38.5 | 100 | 65 | IMG 3 | |
| YH5WS-26/72 | 20 | 26 | 20.8 | 37 | 85 | 72 | 65 | 150 | 65 | IMG 6 |
| YH5WS-34/95 | 34 | 27.2 | 48 | 105 | 95 | 85 | 150 | 65 | IMG 7 | |
|
It is used to protect power distribution equipment such as power transformers, switch cabinets, box-type substations, power cable outlets, and oil-on-column switches of the corresponding voltage levels from atmospheric and operating overvoltages. |
||||||||||
