The arrester is an over-voltage protector. It is mainly used to protect various electrical equipment such as transformers, switches, capacitors, wave blocks, transformers, generators, power cables, etc. in power systems, railway electrification systems, and communication systems. Damage to atmospheric overvoltage, operating overvoltage and power frequency transient overvoltage is the basis for insulation coordination of power systems.

Composite outer casing metal oxide arrester adopts integral molding and two-head encapsulation process, with good sealing performance, excellent explosion-proof performance, pollution-free cleaning and cleaning, and can reduce fogging and wet flashing, corrosion resistance, anti-aging, small size and light weight. It is easy to install and maintain. It is a new generation of porcelain sleeve arrester.

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	IMG NO.
	kV(r.m.s)			≮kV	≯kV			A	kA

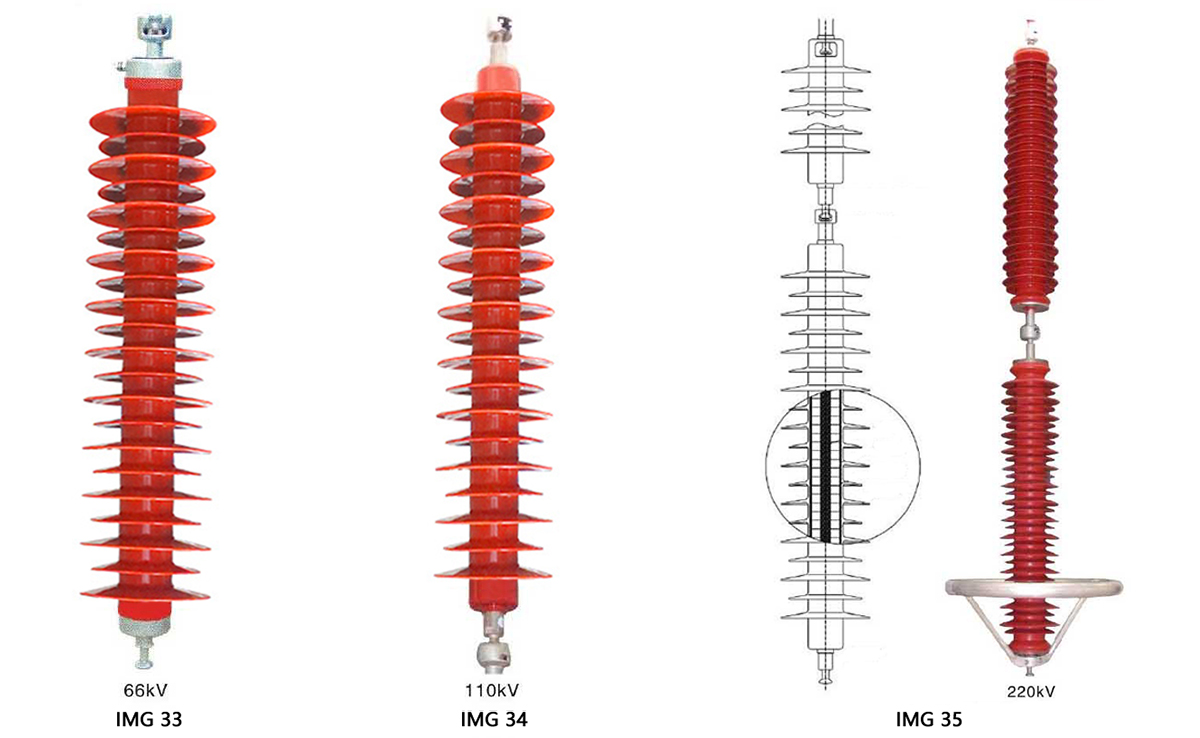

HY5WX-96/250	66	96	75	140	279	250	202	400	100	IMG 33
HY10WX-96/250	66	96	75	140	279	250	202	400	100
HY10WX-100/260	110	100	78	145	291	260	211	600	100	IMG 34
HY10WX-102/265	110	102	81.6	152	297	265	225	600	100
HY10WX-108/281	110	108	86.4	157	314	281	239	600	100
HY10WX-114/300	110	114	91.2	165	336	300	255	600	100
HY10WX-120/320	110	120	96.0	174	358	320	272	600	100
HY10WX-126/328	110	126	100.8	183	367	328	279	600	100
HY10WX-204/530	220	204	163.2	297	594	530	450	800	100	IMG 35
HY10WX-216/562	220	316	172.8	314	628	562	478	800	100
HY10WX-228/600	220	228	182.4	331	627	600	510	800	100
HY10WX-240/640	220	240	192.0	349	716	640	544	800	100
HY10WX-252/656	220	252	201.6	366	734	656	558	800	100
