Overview

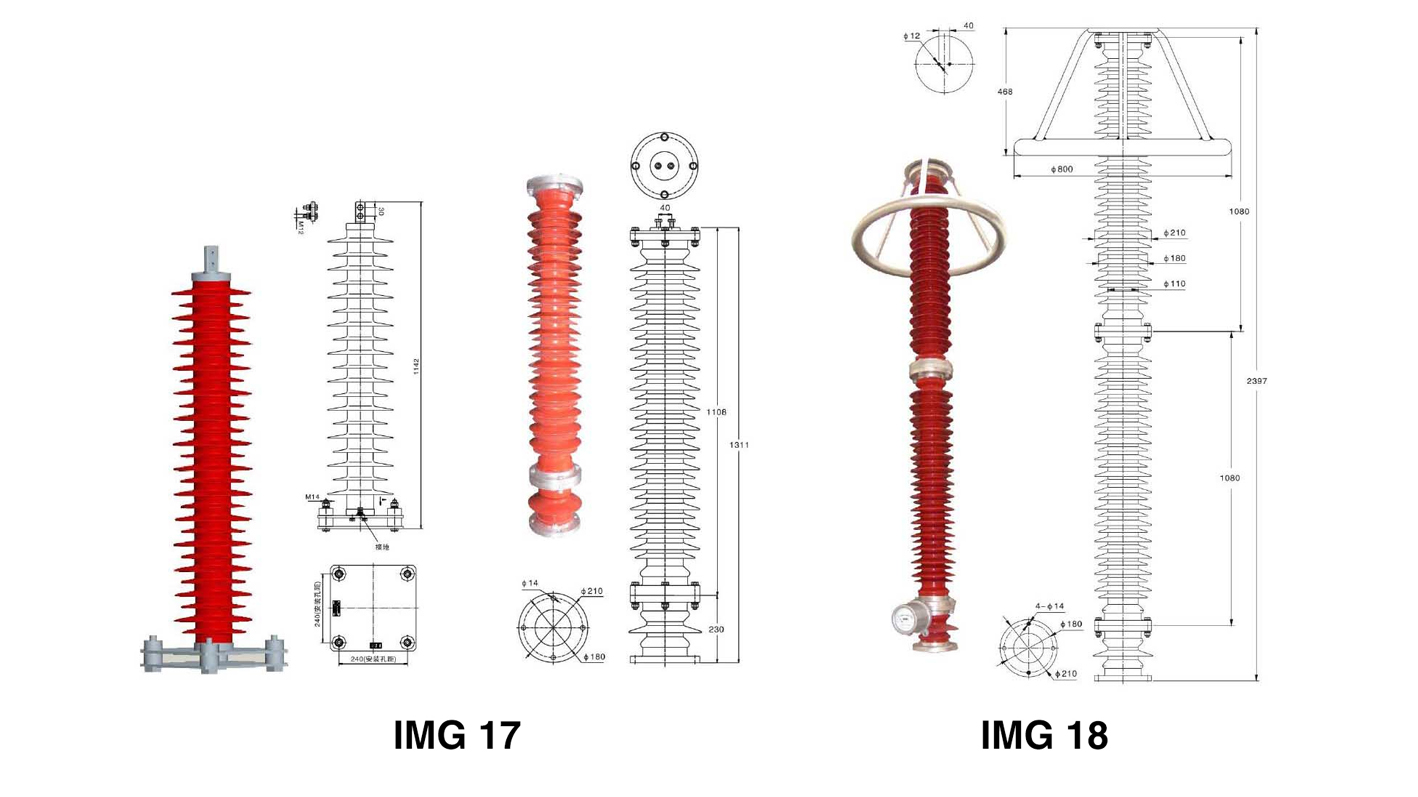

110, 220kV power station type:

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	IMG NO.
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	IMG NO.
HY10W-96/250	110	96	76.8	140	280	250	212	600	100	IMG 17
HY10W-100/260	110	100	78.0	145	280	260	221	600	100
HY10W-108/281	110	108	84.0	157	314	281	239	600	100
HY10W-192/500	220	192	150	280	560	500	424	800	100	IMG 18
HY10W-200/520	220	200	156	292	582	520	442	800	100
HY10W-216/562	220	216	169	314	628	562	477	800	100

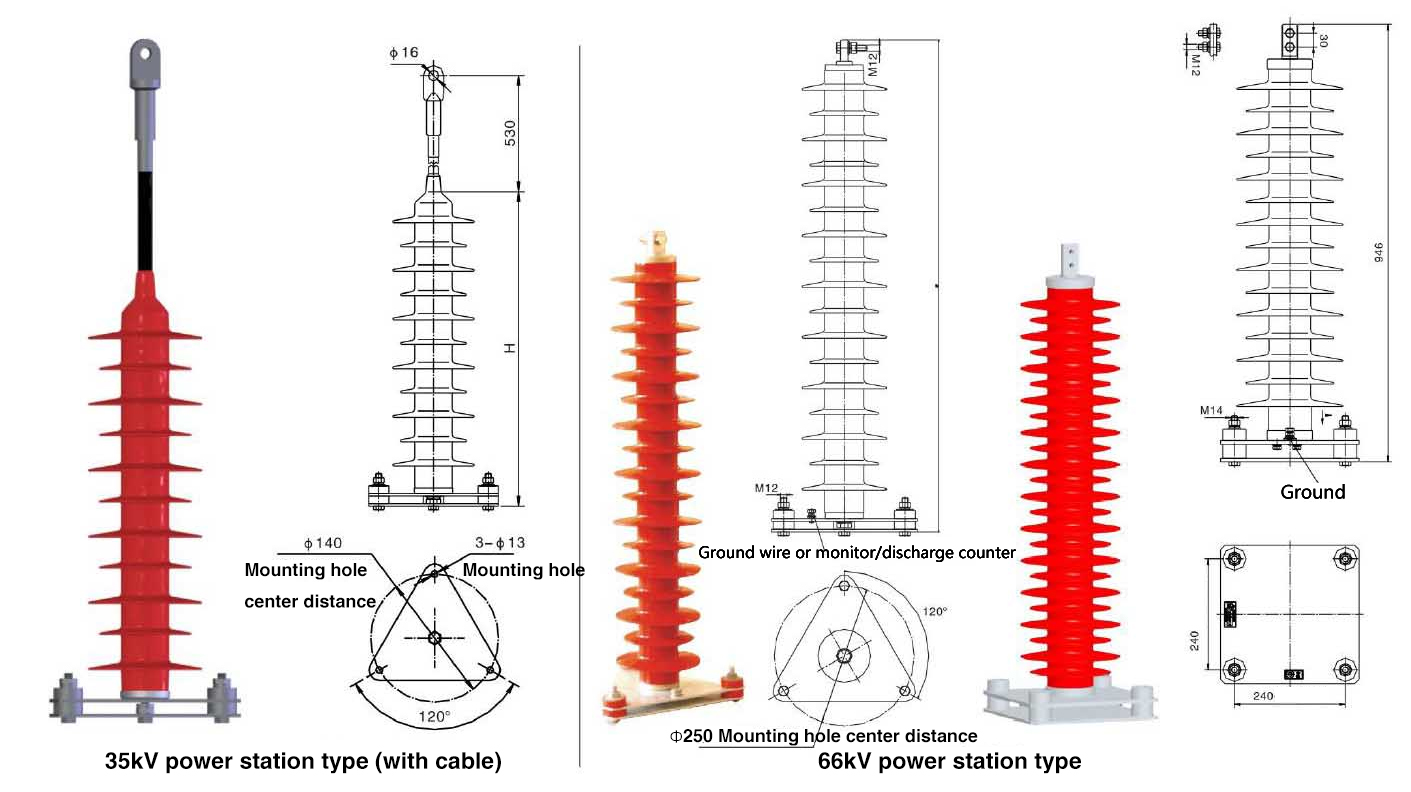

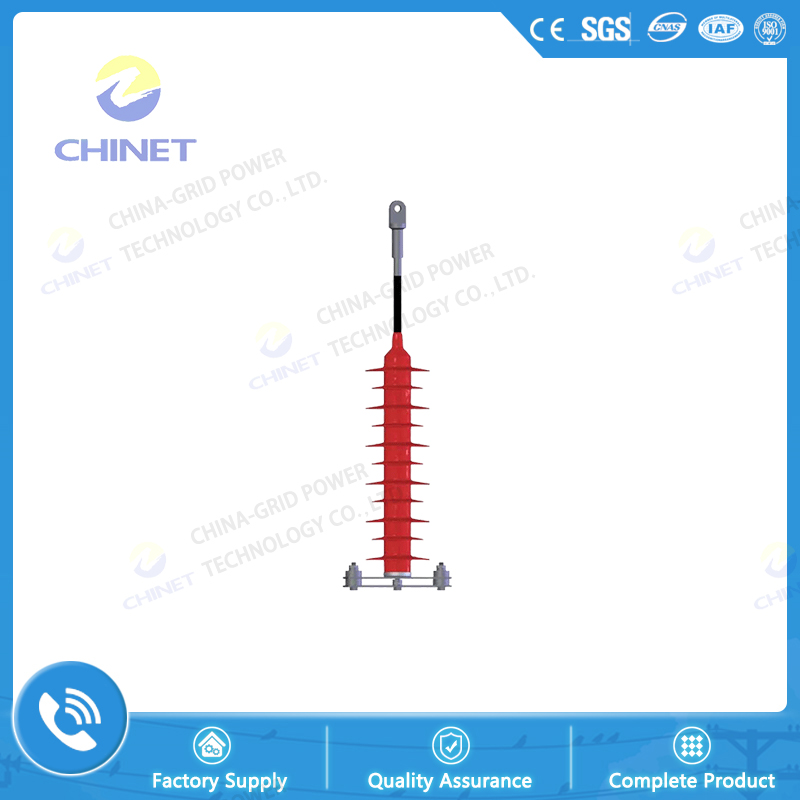

35kV power station type (with cable):

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Lightning protection height
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WZ-51/134J	35	51	40.8	73	154	134	114	400	100	655
YH5WZ-52.7/134J	35	52.7	42	75	154	134	114	400	100	655
YH5WZ-54/134J	35	54	43.2	77	154	134	114	400	100	655

66kV power station type:

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Lightning protection height
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WZ-75/215	66	75	60	12	248	215	183	400	100
YH5WZ-90/224	66	90	72.5	130	258	224	190	400	100
YH10WZ-75/250	66	75	60	127	288	250	213	600	100
YH10WZ-75/223	66	75	60	127	256	223	190
YH10WZ-75/230	66	75	60	127	265	230	196
YH10WZ-90/224	66	90	72.5	130	258	224	190
YH10WZ-90/232	66	90	72.5	130	266	232	198
YH10WZ-90/235	66	90	72.5	130	270	235	201

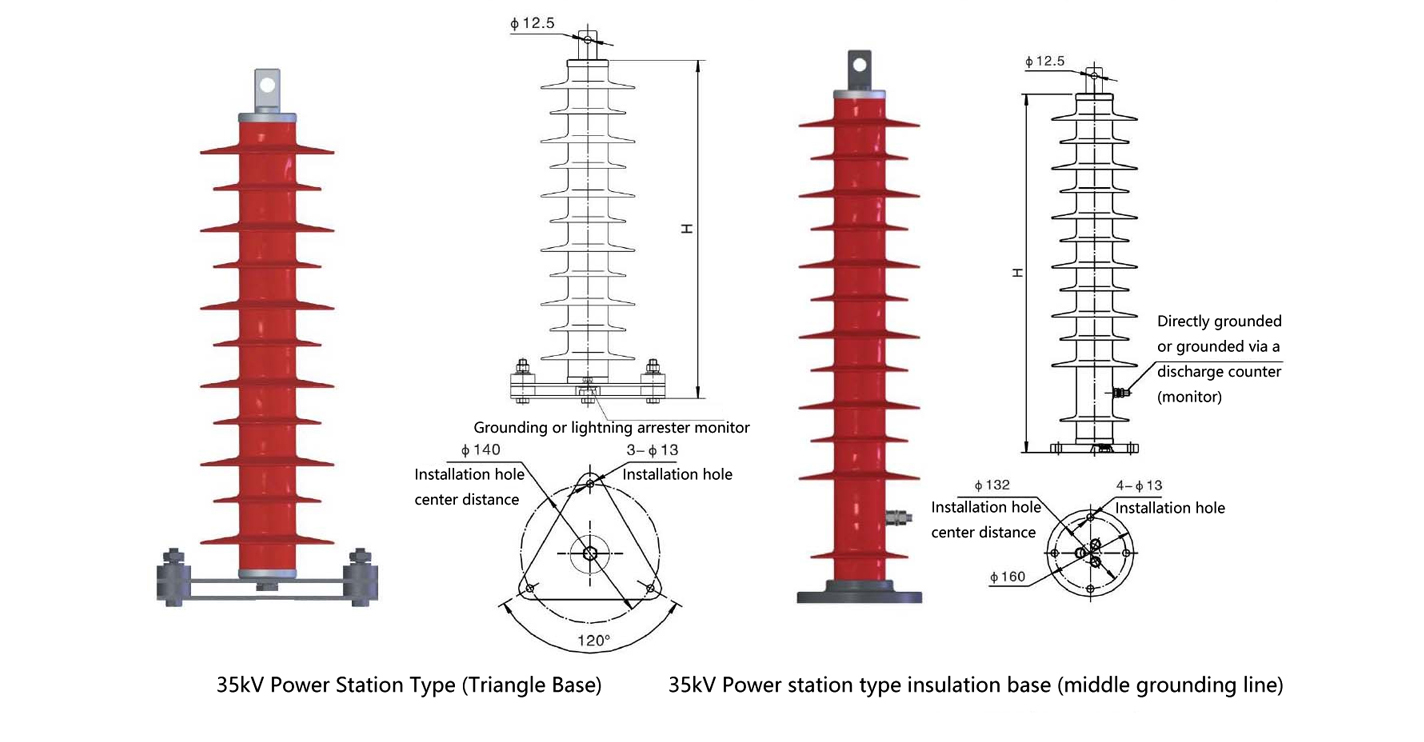

35kV Power station type (triangular base):

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Lightning protection height
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WZ-51/134	35	51	40.8	73	154	134	114	400	100	595
YH5WZ-52.7/134	35	52.7	42	75	154	134	114	400	100	595
YH5WZ-54/134	35	54	43.2	77	154	134	114	400	100	595
YH5WZ-51/134G	35	51	40.8	73	154	134	114	400	100	685
YH5WZ-54/134G	35	54	43.2	77	154	134	114	400	100	685

35kV power station type insulation base (middle grounding line):

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Lightning protection height
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WZ-51/134E	35	51	40.8	73	154	134	114	400	100	695
YH5WZ-52.7E	35	52.7	42	75	154	134	114	400	100	695
YH5WZ-54/134E	35	54	43.2	77	154	134	114	400	100	695

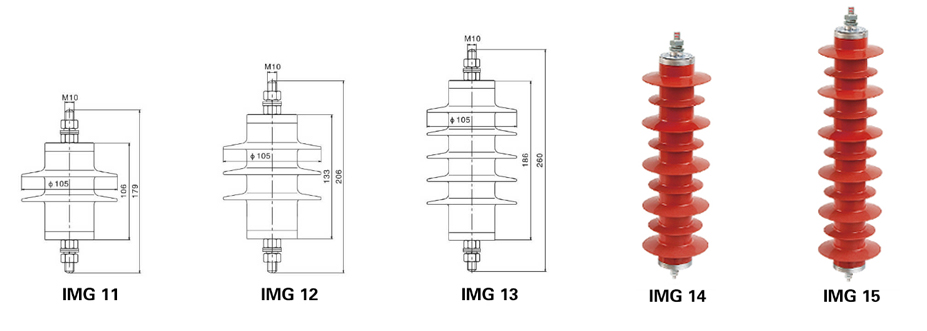

3~20kV power station type:

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Lightning protection height
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WZ-5/13.5	3	5	4.0	7.5	15.5	13.5	11.5	150	65	IMG 11
YH5WZ-10/27	6	10	8.0	15.0	31.0	27	23.0	150	65	IMG 12
YH5WZ-17/45	10	17	13.6	24.0	51.5	45	38.3	150	65	IMG 13
YH5WZ-26/66	20	26	20.8	37	76	66	56	150	65	IMG 14
YH5WZ-34/85	20	34	27.2	48	95	85	75	150	65	IMG 15
