Classification：Arrester Series
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
| MOA Tape | Sys R.v | MOA R.V | MCOV |
DC voltage (U1mA) |

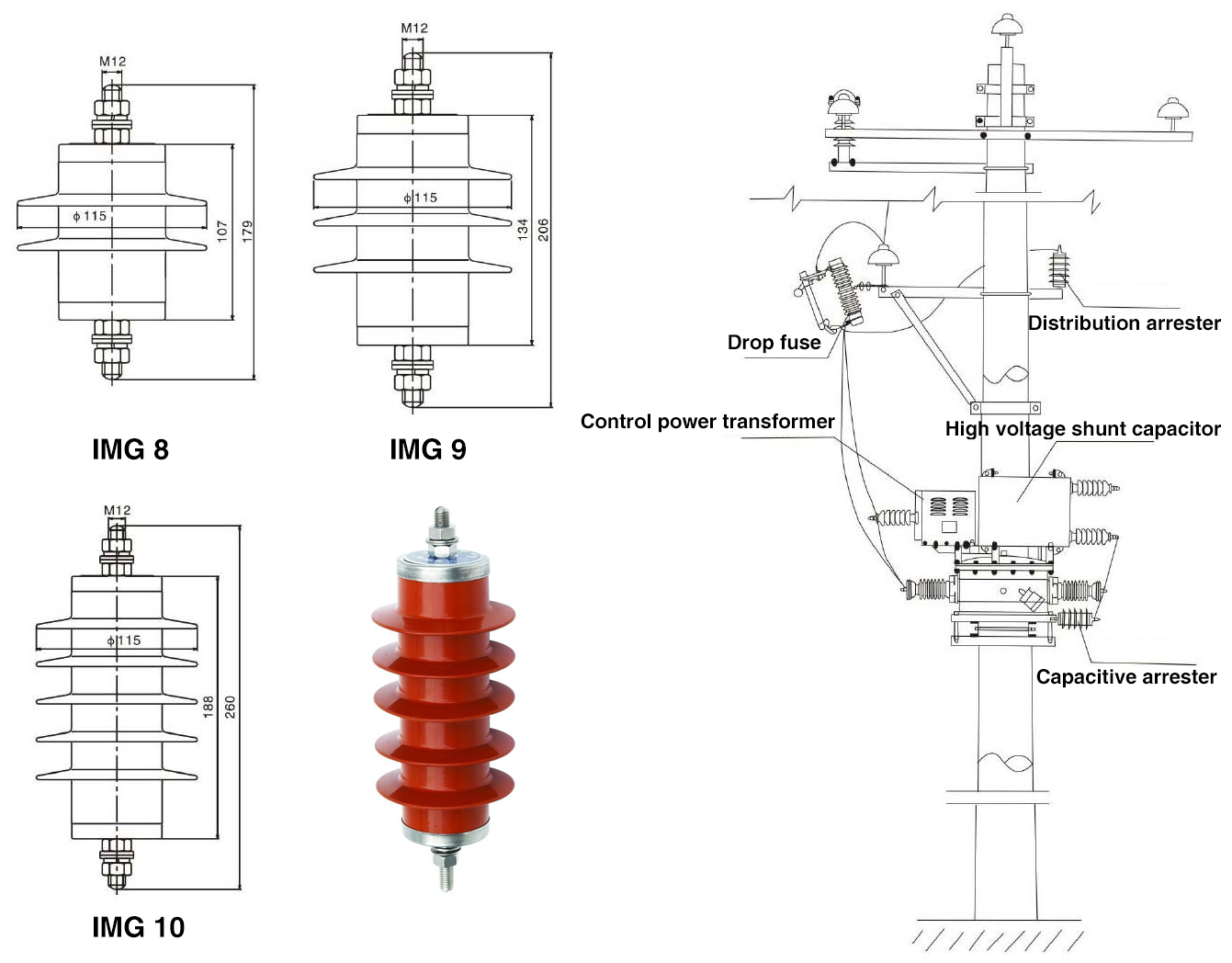

8/20μs Lightning current impulse | 30/60μs Switching current impulse | 2ms Rectangular Current impulse | 4/10μs High current impulse | IMG NO. |
| kV(r.m.s) | ≮kV | ≯kV | A | kA | |||||
| HY5WR-5/13.5 | 3 | 5 | 4.0 | 7.2 | 13.5 | 10.5 | 400 | 65 | IMG 8 |
| HY5WR-10/27 | 6 | 10 | 8.0 | 14.4 | 27.0 | 21.0 | 400 | 65 | IMG 9 |
| HY5WR-17/45 | 10 | 17 | 13.6 | 24.0 | 45 | 35.0 | 400 | 65 | IMG 10 |
| HY5WR-51/134 | 35 | 51 | 40.8 | 72.5 | 134 | 105 | 400 | 65 | |
| HY5WR-84/221 | 66 | 84 | 67.2 | 121 | 221 | 176 | 600 | 100 | |
| HY5WR-90/236 | 66 | 90 | 72.5 | 130 | 236 | 190 | 600 | 100 | |
| HY5WR-51/134 | 35 | 51 | 40.8 | 73 | 134 | 104 | 600 | 100 | |
| HY5WR-54/134 | 35 | 54 | 43.2 | 75 | 134 | 105 | 600 | 100 | |
|
It is used to suppress the overvoltage generated by the vacuum switch and the oil switch operation capacitor bank, protect the capacitor bank from overvoltage and absorb the overvoltage energy. |
|||||||||
