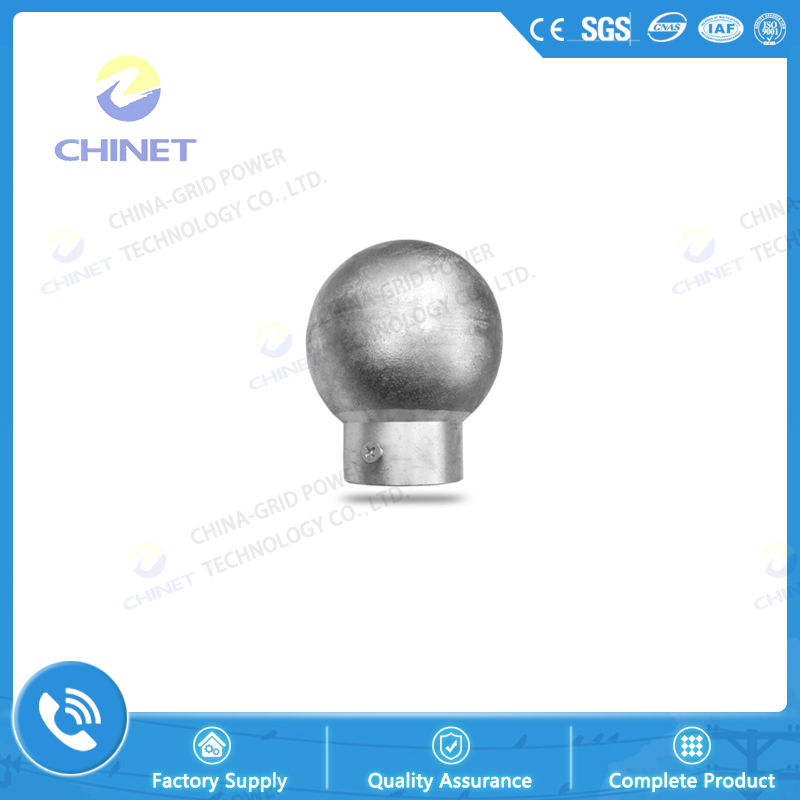

MGZ Type Aluminum Tubular Busbar Terminal Ball Substation Connection Fittings

Classification:Station Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Specifications:

Type

Application bus specification

Main Dimensions (mm)

D

H

SR

H

M

MGZ-50

Φ 50/45

45

105

45

10

8

MGZ-60

Φ 60/54

54

155

70

10

MGZ-70

Φ 70/64

64

165

70

15

MGZ-80

Φ 80/72

72

165

70

15

MGZ-90

Φ 90/80

80

190

80

20

MGZ-100

Φ 100/90

90

196

80

20

MGZ-110

Φ 110/100

100

205

90

25

10

MGZ-120

Φ 120/110

110

205

90

25

MGZ-130

Φ 130/116

116

205

90

25

MGZ-150

Φ 150/136

136

334

150

30

MGZ-170

Φ 170/156

156

370

170

30

MGZ-200

Φ 200/180

180

385

180

30

12

MGZ-250

Φ 250/230

230

484

230

40


Notes:

The body is made of aluminum.

When the inner diameter of the pipe bus used by the user is different from the above size, please specify when ordering.
