Classification：Device Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667

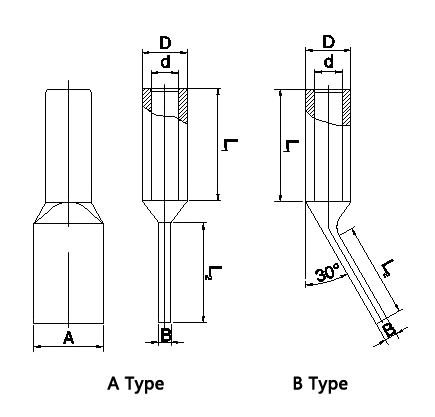

| Type | Main Dimensions (mm) | ||||||
| d | D | L1 | L2 | A | B | ||
|
SY(T)-35 | 8.8 | 14 | 40 | 50 | 28 | 4.0 |
| SY(T)-50 | 10 | 16 | 45 | 55 | 28 | 4.8 | |
| SY(T)-70 | 11.8 | 18 | 53 | 65 | 34 | 5.0 | |
| SY(T)-95 | 14.0 | 20 | 58 | 70 | 40 | 5.0 | |
| SY(T)-120 | 15.5 | 22 | 63 | 70 | 40 | 5.5 | |
| SY(T)-150 | 17.0 | 25 | 68 | 75 | 50 | 6.5 | |
| SY(T)-185 | 19.0 | 27 | 73 | 80 | 50 | 7.3 | |
| SY(T)-240 | 21.0 | 30 | 78 | 85 | 50 | 8.5 | |
| SY(T)-300 | 23.0 | 32 | 88 | 90 | 60 | 9.0 | |
| SY(T)-400 | 26.5 | 35 | 88 | 100 | 60 | 9.0 | |
| SY(T)-500 | 30.0 | 38 | 98 | 100 | 80 | 9.0 | |
| SY(T)-630 | 35.0 | 45 | 95 | 100 | 80 | 12.0 | |
| SY(T)-800 | 38.5 | 50 | 103 | 120 | 100 | 12.5 | |
