| Type | Application of Wire Cutting (mm2) | Main Dimensions (mm) | Remark | |||||
| M | D | L1 | A | |||||
|

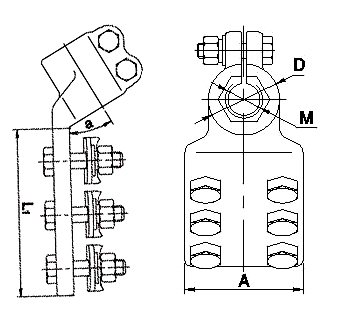

SBQ-M12B | 35 ~ 120 | 12 | 32 | 70 | 55 | Direct Connection of Line Cover with Conductor | |
| SBQ-M14B | 35 ~ 120 | 14 | ||||||
| SBQ-M16B | 35 ~ 120 | 16 | ||||||
| SBQ-M18B | 95 ~ 240 | 18 | 38 | 110 | 63 | |||
| SBQ-M20B | 95 ~ 240 | 20 | ||||||
|

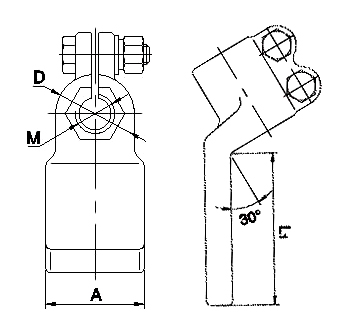

SBQ-P-M-12B | 35 ~ 120 | 12 | 32 | 70 | 40 | Flat plate type, connected with line row or with equipment line level and terminal | |
| SBQ-P-M-14B | 35 ~ 120 | 14 | ||||||
| SBQ-P-M-16B | 35 ~ 120 | 16 | ||||||
| SBQ-P-M-18B | 95 ~ 240 | 18 | 38 | 110 | 50 | |||
| SBQ-P-M-20B | 95 ~ 240 | 20 | ||||||
|

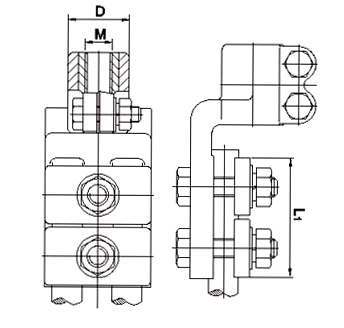

SBQ-S-M18A | 95 ~ 240 | 18 | 38 | 46 | 65 | Double Conductor, vertical outlet | |
| SBQ-S-M20A | 95 ~ 240 | 20 | ||||||
|

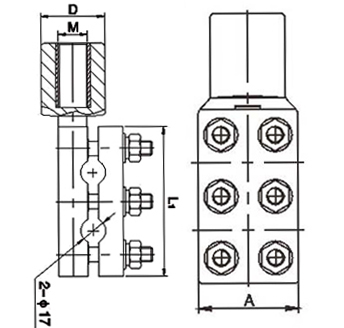

SBQ-T-M18A | 95 ~ 240 | 18 | 38 | 103 | 59 | Double Conductor, horizontal outlet | |
| SBQ-T-M20A | 95 ~ 240 | 20 | ||||||
|

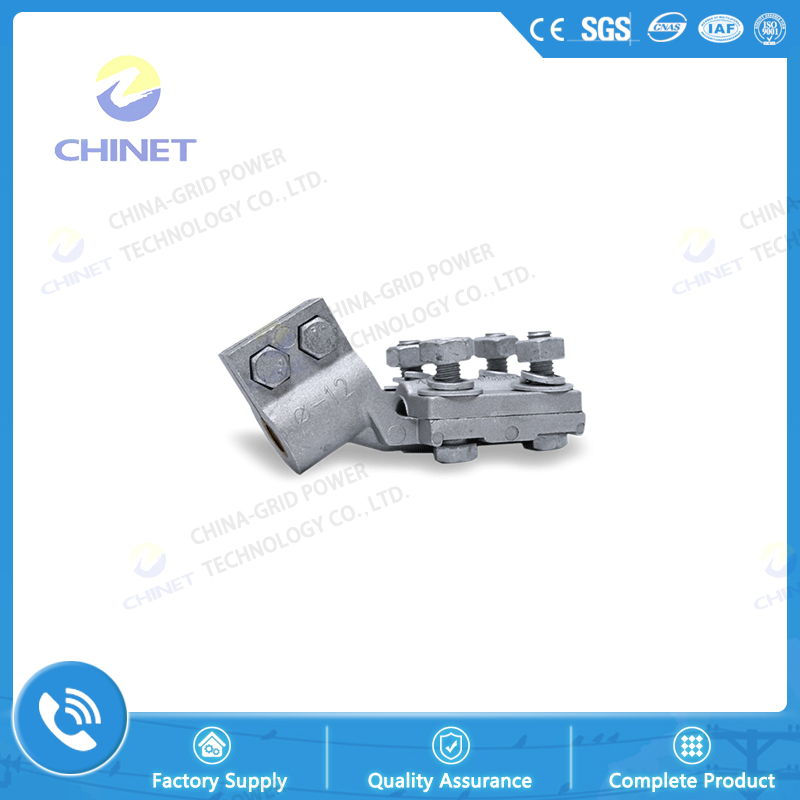

The copper-embedded pole holder clamp is suitable for the connection of round rod terminal piles and aluminum conductors or busbars. It has the advantages of relatively light engineering cost and economical benefits, and is suitable for rural power grid transformation. |
||||||||
