FJQ (Z) -Y Preformed Conductor Spacer Bar

Classification:Protection Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:

Preformed spacer uses pre-stranded wire as the connection structure between spacer bar clamp and protected wire, so it has the advantages of convenient and fast installation of pre-stranded metal fittings, good grip on wire (avoiding the loosening of wire clamp caused by thermal expansion and cold contraction), even grip without damaging wire, no hidden danger of bolt loosening (maintenance-free), good corona prevention and energy saving. Pre-twisted wire and clamp are made of aluminum alloy, and have excellent fatigue resistance.

It has proven to be excellent and widely used in decades of power lines in developed countries.CHINA-GRID POWER TECHNOLOGY CO.,LTD. overcomes technical difficulties and succeeds in production and refers to production. It has been tested and superior by authoritative organizations and has been put on the market and recognized by users.

Type Applicable Wire Diameter Φ (mm) L Weight (kg)
FJQ(Z)-205Y09 18.0 ~ 20.2 200 0.65
FJQ(Z)-205Y10 20.21 ~ 22.6 200 0.65
FJQ(Z)-205Y11 22.61 ~ 25.2 200 0.65
FJQ(Z)-205Y12 25.21 ~ 28.0 200 0.65
FJQ(Z)-205Y13 28.0 ~ 30.0 200 0.65
FJQ(Z)-205Y14 30.01 ~ 32.0 200 0.65
FJQ(Z)-205Y15 32.01 ~ 34.0 200 0.65
FJQ(Z)-405Y09 18.0 ~ 20.2 400 0.75
FJQ(Z)-405Y10 20.21 ~ 22.6 400 0.75
FJQ(Z)-405Y11 22.61 ~ 25.2 400 0.75
FJQ(Z)-405Y12 25.21 ~ 28.0 400 0.75
FJQ(Z)-405Y13 28.0 ~ 30.0 400 0.75
FJQ(Z)-405Y14 30.01 ~ 32.0 400 0.75
FJQ(Z)-405Y15 32.01 ~ 34.0 400 0.75

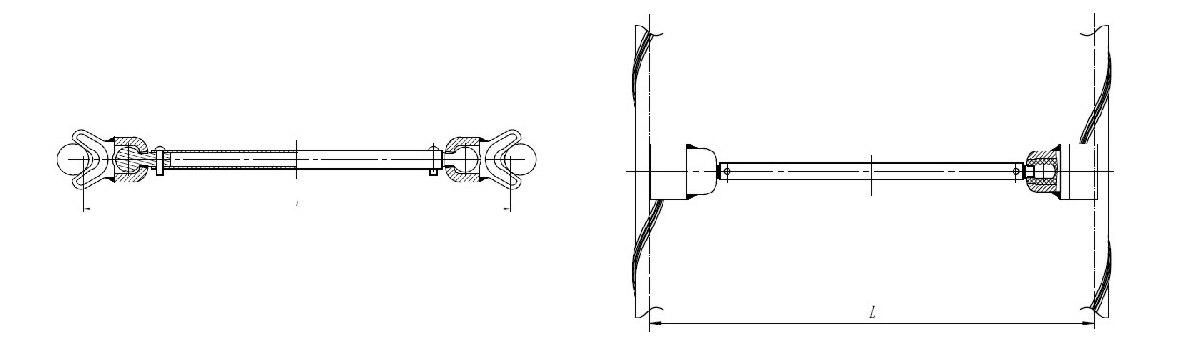

FJQZ type is a double split damping spacer, the indirect distance L between two wires can be adjusted according to customer needs
