FJZ-Y Preformed Conductor Double Split Spacer

Classification:Protection Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:

The pre-twisted spacer rod uses pre-twisted wire as the connection structure between the spacer rod clamp and the protected conductor. It has easy and fast installation, good grip on the conductor (avoid loosening of the clamp caused by thermal expansion and contraction), uniform grip without hurting the conductor, No hidden danger of loose bolts (maintenance-free), good anti-halo, energy saving (pre-stranded wire and clamp are made of aluminum alloy), superior fatigue resistance and other advantages.

It has been proved to be excellent and widely used in decades of operation on power lines in developed countries. CHINET has overcome technical difficulties, successfully and mass-produced products, and has superior performance tested by authoritative institutions.

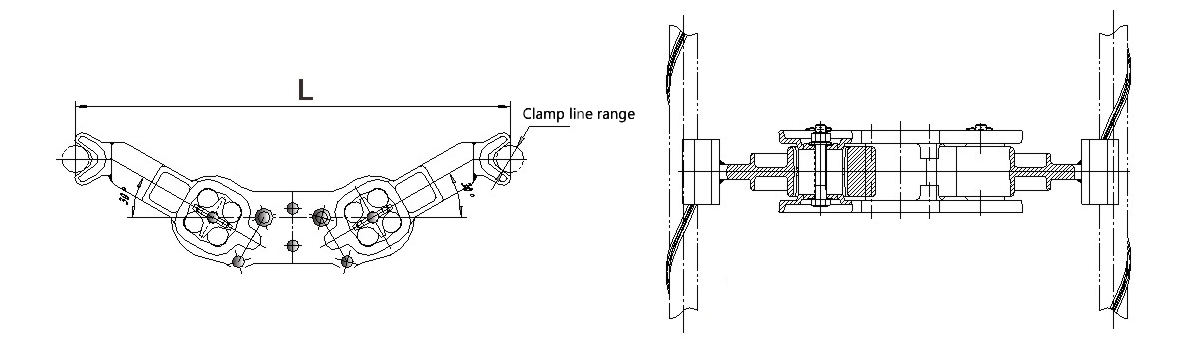

Type Applicable Wire Diameter Φ (mm) L Wire Length Weight (kg)
FJZ-245Y09 18.0 ~ 20.2 450 620 2.5
FJZ-245Y10 20.21 ~ 22.6 450 620 2.5
FJZ-245Y11 22.61 ~ 25.2 450 620 2.5
FJZ-245Y12 25.21 ~ 28.0 450 650 2.5
FJZ-245Y13 28.0 ~ 30.0 450 700 2.5
FJZ-245Y14 30.01 ~ 32.0 450 700 2.5
FJZ-245Y15 32.01 ~ 34.0 450 700 2.5
FJZ-245Y16 34.01 ~ 38.0 450 700 2.5

The distance L between the two wires can be adjusted according to customer needs
