CGF Aluminum Alloy Corona-Proof Suspension Clamp

Classification:Suspension clamp

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:

Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.

Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction. It meets the requirements of energy saving and consumption reduction in the national power grid transformation and construction.

CGF corona-proof type suspension clamp adopts anti-halo design, especially suitable for 110KV and above lines. The clamp body and pressure plate are made of high-strength aluminum alloy, and have undergone heat treatment process, no hysteresis effect, and energy saving.

Percentage of suspension clamp gripping force to rated tensile force of wire:
Wire Class Wire Structure(Aluminum Ratio) Percent
ACSR
(Steel core aluminum stranded wire)
>1.7 12
4.0-4.5 18
5.0-6.5 20
7.0-8.0 22
11.0-20.2 24
Steel stranded wire Ultimate strength 1176-1274 14
Aluminum stranded wire 30
Type Equivalent mode Suitable for wire diameter range
(including wrapped wrapped)(mm)
Main Dimensions(mm) Nominal failure load


(kN)
Reference weight
(kg)

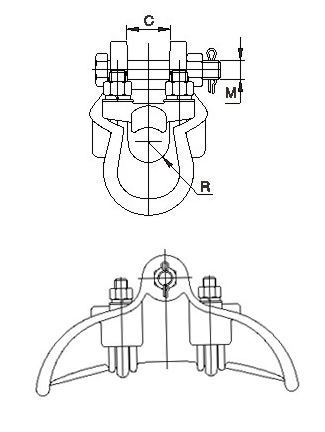

R C M
CGF-0726 CGF-4 Φ20.0 ~ 26.0 13 28 16 70 2.37
CGF-0734 CGF-5 Φ26.0 ~ 34.0 17 36 16 70 2.75
CGF-1040 Φ34.0 ~ 40.0 20 42 18 100 3.46
CGF-1046 CGF-6 Φ40.0 ~ 46.0 23 48 18 100 3.52
CGF-1560 Φ47.0 ~ 60.0 30 64 24 200 4.50
CGF-2060 Φ47.0 ~ 60.0 30 64 24 200 5.50
CGF-2560 Φ47.0 ~ 60.0 30 64 27 250 6.50
