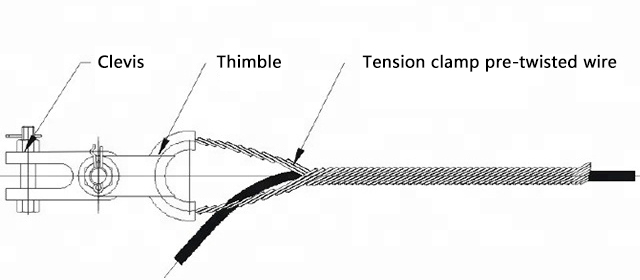

ADSS tension set is suitable for connection of optical erection on overhead ADSS transmission line to pole & tower in which the clamp protects & auxiliarily absorbing vibration available on ADSS optical cables. The special design for dead-end component ensures the tension set itself will not generate any of concentrated stress harmful to ADSS optical cable, effectively guaranteeing the normal usage for optical cable.

Type	Applicable Diameter of Cable (mm)	Length of Dead End Component (mm)	Weight (kg)	Fitting Matched
				Clevis	Thimble
ANJ0950	9.0-9.5	800	0.38	GHX-04	TC-04
ANJ1050	9.6-10.5	850	0.49	GHX-04	TC-04
ANJ1160	10.6-11.6	900	0.52	GHX-04	TC-04
ANJ1280	11.7-12.8	960	0.65	GHX-04	TC-04
ANJ1410	12.9-14.1	1080	0.82	GHX-04	TC-04
ANJ1560	14.2-15.6	1160	1.22	GHX-04	TC-04

1. The first three letters in the specification indicate the product type, such as ANJ for ADSS small tension tensile clamp

2. The above configuration is a common configuration. For other fishing tackles, please refer to the appendix and specify

3. The above products are not listed above. If you have any requirements, please consult the company's technical department.
