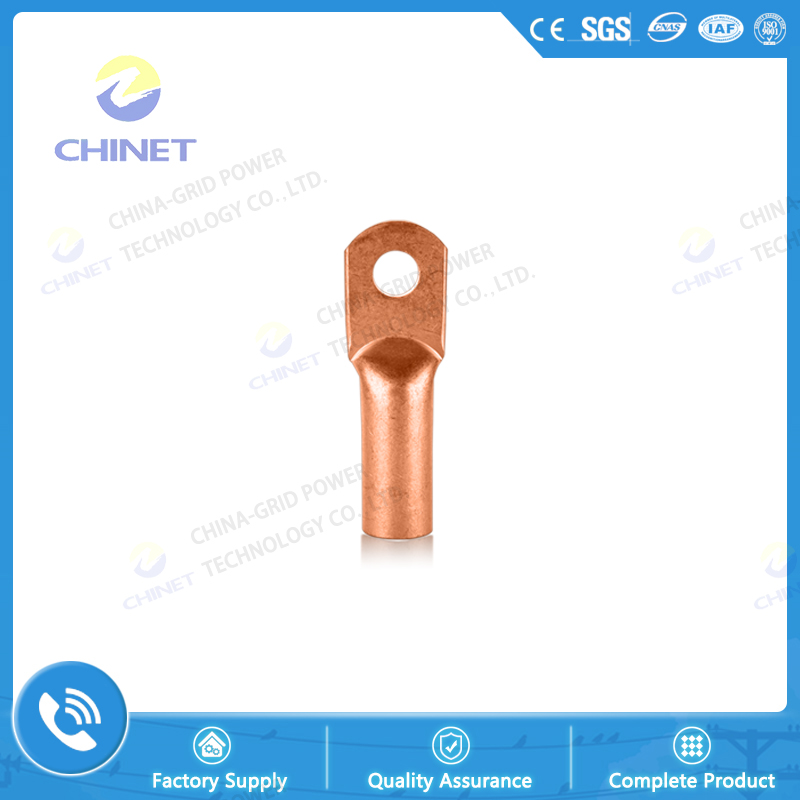

DT-(G) type copper connecting terminal is suitable for connection of wire & cable to electric device, selected from T2 purple copper or brass as pressing. It is qualified for the characteristics of high-strength welding seam, wonderful electric performance, anti-electrochemical corrosion, long working life & reliable safety.
| Type | Dimension (mm) | |||
| D | d | L | Φ | |
| DT(G)-10 | 8 | 5 | 52 | 6.5 |
| DT(G)-16 | 9 | 6 | 57 | 6.5 |
| DT(G)-25 | 10 | 7 | 62 | 8.5 |
| DT(G)-35 | 11 | 8 | 66 | 8.5 |
| DT(G)-50 | 13 | 10 | 72 | 8.5 |
| DT(G)-70 | 16 | 12 | 80 | 10.5 |
| DT(G)-95 | 18 | 14 | 85 | 10.5 |
| DT(G)-120 | 19 | 15 | 96 | 12.5 |
| DT(G)-150 | 23 | 17 | 102 | 12.5 |
| DT(G)-185 | 24 | 19 | 114 | 17 |
| DT(G)-240 | 26 | 21 | 120 | 17 |
| DT(G)-300 | 31 | 24 | 135 | 18.5 |
| DT(G)-400 | 34 | 26 | 150 | 18.5 |
| DT(G)-500 | 38 | 30 | 170 | 20.5 |
| DT(G)-630 | 45 | 35 | 210 | 22.5 |
Remark: we can customize various specification products based on different requirements. Meanwhile we can finish delivery of items in a shortest time.
