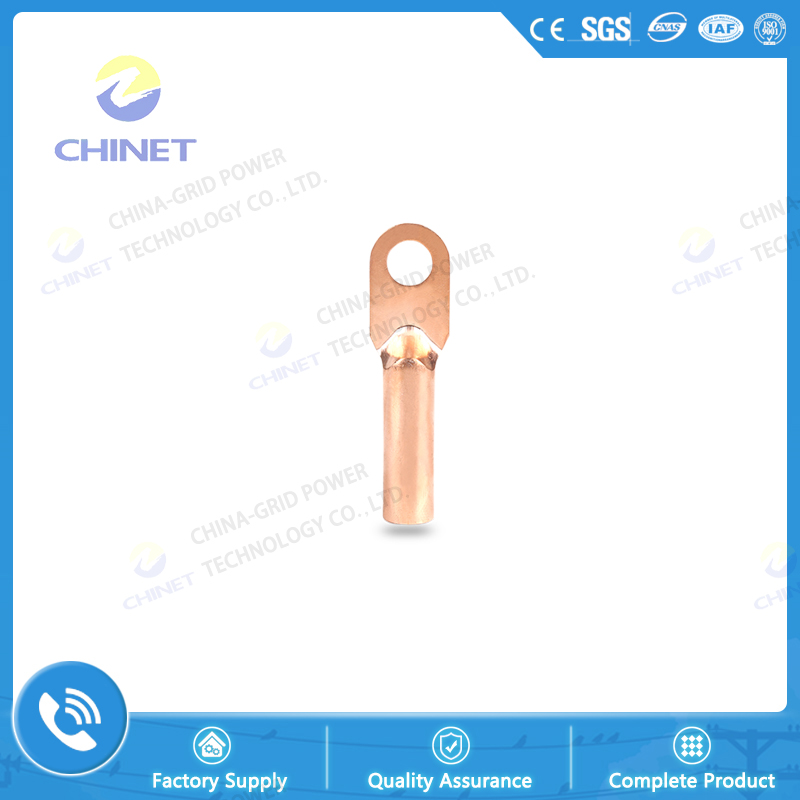

Classification：Cable Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
Technical Requirements
|
Type no |
Dimension(mm) |
|||||
|
D |
d |
L |
L1 |
A |
Φ |
|
|
DT-10 |
9 |
5.5 |
63 |
30 |
16 |
8.5 |
|
DT-16 |
9 |
6.0 |
65 |
32 |
16 |
8.5 |
|
DT-25 |
10 |
7.2 |
69 |
34 |
18 |
8.5 |
|
DT-35 |
12 |
8.5 |
78 |
36 |
20 |
10.5 |
|
DT-50 |
14 |
10.0 |
85 |
40 |
22 |
10.5 |
|
DT-70 |
16 |
11.9 |
93 |
44 |
26 |
12.5 |
|
DT- 95 |
18 |
13.6 |
100 |
47 |
28 |
12.5 |
|
DT-120 |
20 |
15.0 |
108 |
49 |
30 |
14.5 |
|
DT-150 |
22 |
16.5 |
115 |
52 |
32 |
14.5 |
|
DT-185 |
25 |
18.5 |
120 |
52 |
36 |
17 |
|
DT-240 |
27 |
20.5 |
132 |
58 |
45 |
17 |
|
DT-300 |
30 |
23.0 |
155 |
65 |
48 |
21 |
|
DT-400 |
34 |
26.0 |
160 |
67 |
54 |
21 |
|
DT-500 |
38 |
29.0 |
178 |
75 |
60 |
21 |
|
DT-630 |
45 |
35.0 |
215 |
85 |
80 |
/ |
|
DT-800 |
50 |
38.0 |
257 |
85 |
100 |
/ |
