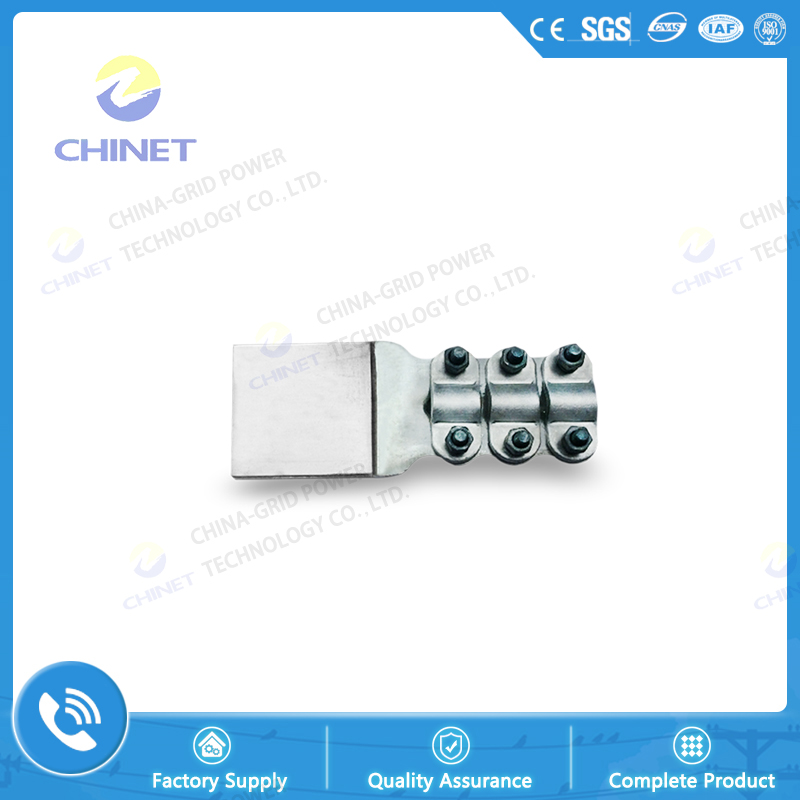

SL-N & SL-K Large Section Conductor Bolt Terminal Clamp are applicable to connect copper conductor with aluminum terminal of electric device, qualified for good electric contact performance suitable for permanent connection.

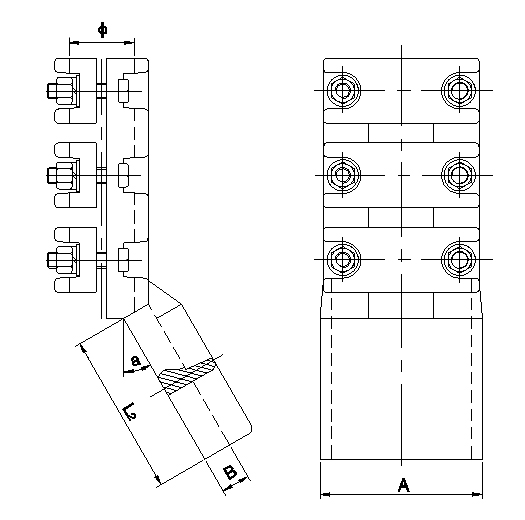

Type		Suitable Conductor	Dimension(mm)
			Φ	B
	SL-630N(A×L2)	NRLH5860GJ-630/80	35	20
	SL-1000N(A×L2)	NRLH5860GJ-1000	42	20
	SL-900K(A×L2)	LGKK-900	49	20
	SL-1440(A×L2)	LGKK-1400	51	20
	SL-1440N(A×L2)	NRLH5860GJ-1440	52	24

1. BL type is aluminum terminal clamp, BLG type is copper aluminum terminal clamp

2.In the table additional letters A indicates 0°,B indicates 30°,C indicates 45°,D indicates 90°

3. The clamp body, keeper are made of not less than AL99.5% Cast aluminum, the other parts are hot-dip galvanized steel
