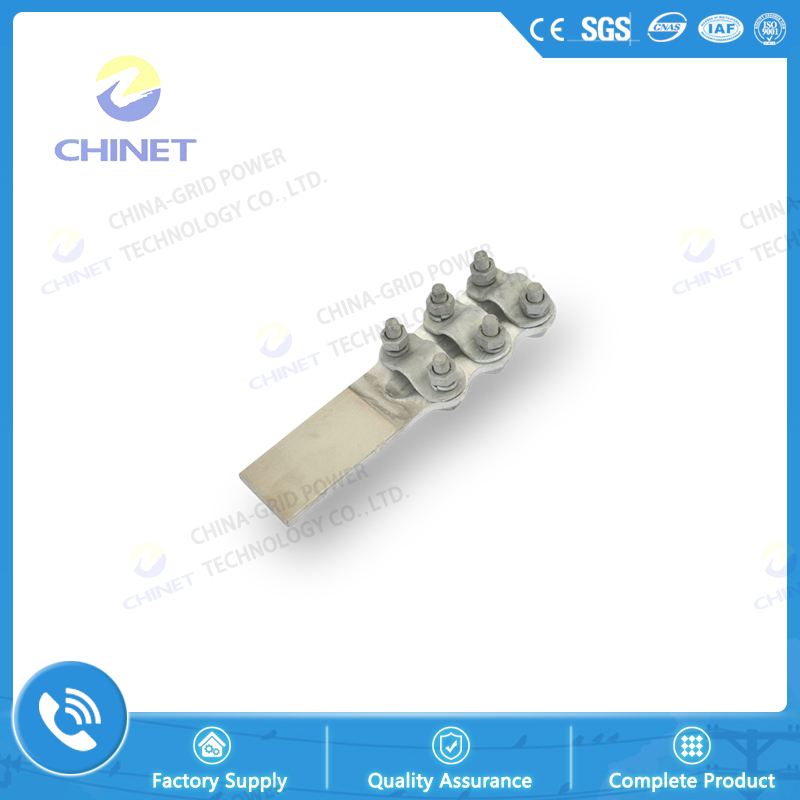

Distribution Substation Fittings

Classification：Device Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

Product Description

Technology:

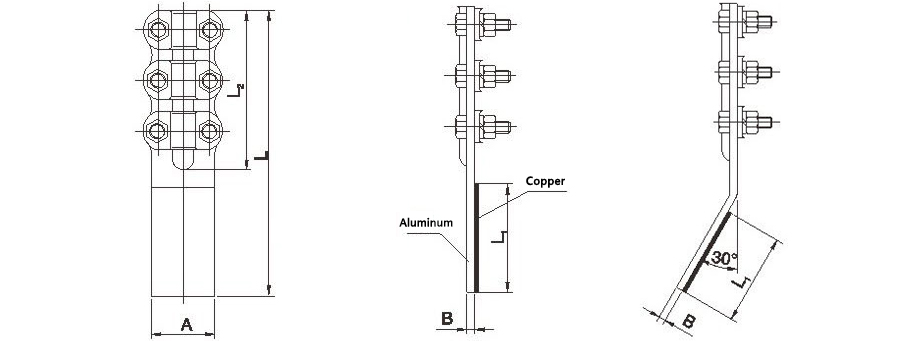

Type	74 Setting	Application of Conductor Wire Cutting(mm²)	Main Dimension(mm)					Remark
Type	74 Setting	Application of Conductor Wire Cutting(mm²)	A	B	L2	L1	L	Remark
/	SL-1Q	35~50	6	40	65	45	120	1
/	SL-2Q	70~95	6	40	80	45	136	1
SLG-1Q	SL-3Q	35~50	6	40	65	65	145	2
SLG-2Q	SL-4Q	70~95	6	40	80	80	175	2
SLG-2Q-80	/		8	80	80	80	185	3
SLG-2Q-100	/		10	100	80	100	205	3
SLG-3Q	SL-5Q	120~150	8	50	125	85	225	2
SLG-3Q-63	/		8	63	125	85	239	2
SLG-3Q-80	SL-7Q		8	80	125	85	239	3
SLG-3Q-100	/		10	100	125	100	260	3
SLG-4Q	SL-6Q	185~240	8	50	125	85	225	2
SLG-4Q-63	/		8	63	125	85	239	2
SLG-4Q-80	SL-8Q		8	80	125	85	239	3
SLG-4Q-100	/		10	100	125	100	260	3
SLG-5Q	/	300~400	10	63	130	85	245	2
SLG-5Q-80			10	80	130	85	245	3
SLG-5Q-100			10	100	130	100	260	3
SLG-6Q-100	/	500~630	10	100	160	100	320
SLG-6Q-125	/	500~630	12	125	160	125	320

Terminal plate remark 1 is recommended to play a single hole, remark 2 suggests double hole and remark 3 suggests four holes.
